RY 48131 (099237001) - Ryobi 30" 48V Riding Mower, Rev 01 (2020-03) FIGURE K Parts Diagram

30" 48V Riding Mower, Rev 01

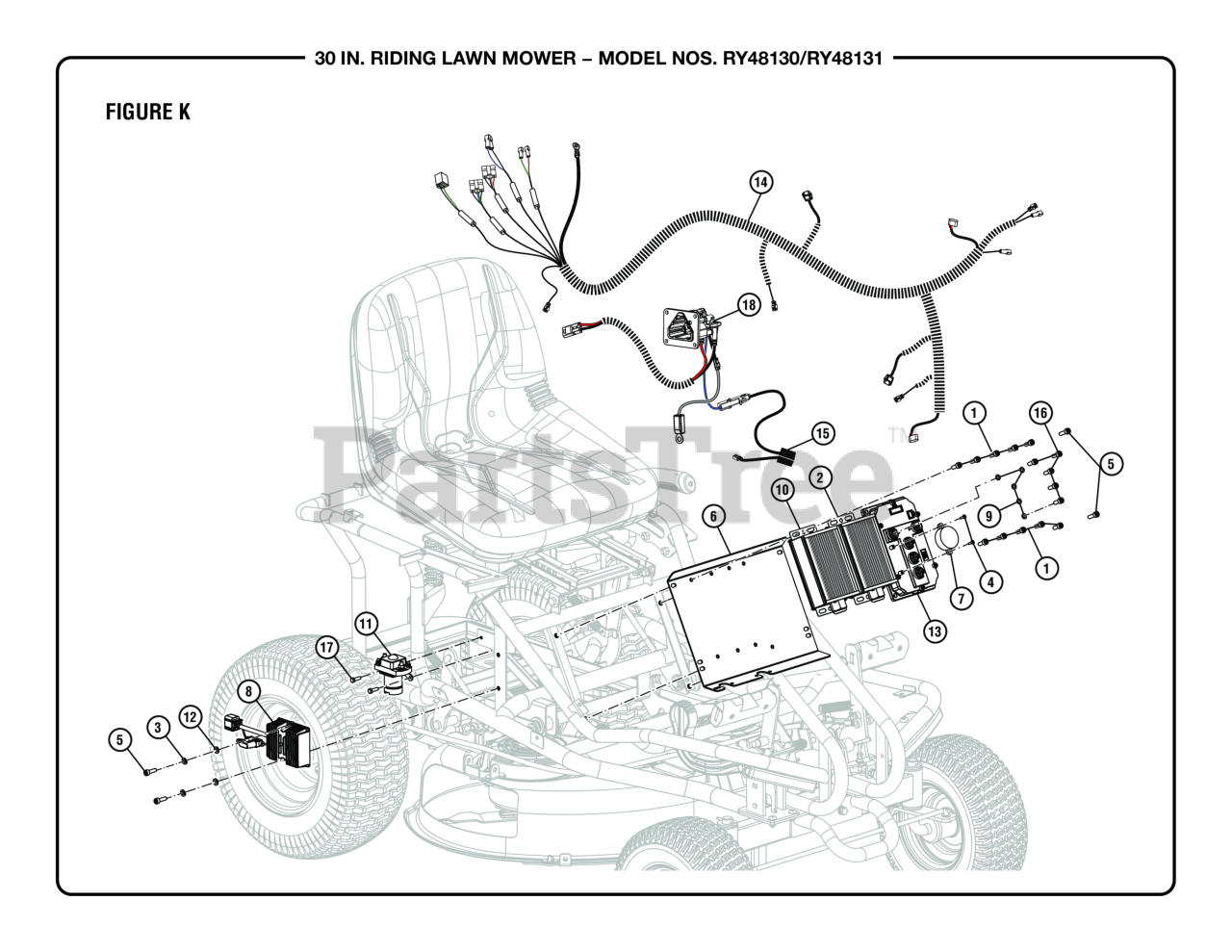

FIGURE K Parts Diagram

  • Title

1

Homelite 997098001

Screw (M6 x 16 mm, Soc. Hd.)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 997350001

Slave Deck Motor Controller

$477.99

$

Usually ships in 3-7 days

0

3

Homelite 996058001

Spring Washer (M6) (For Deck Motor Controllers T & U)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 997094001

Screw (M3 x 12 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 997148001

Screw (M6 x 20 mm, Soc. Hd.)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 997352001

Controller Mounting Plate

$42.99

$

Usually ships in 3-7 days

0

7

Homelite 996290001

Beeper (Q)

$12.99

$

Usually ships in 3-7 days

0

8

Homelite 997077001

DC to DC Converter, ZTR

$120.99

$

Usually ships in 3-7 days

0

9

Homelite 996295001

Washer (OD12 x ID5.3 x 1t) (For Main Relay G and Power Converter I)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 997349001

Master Deck Motor Controller

$490.99

$

Usually ships in 3-7 days

0

11

Homelite 997348001

Main Relay

$176.99

$

Usually ships in 3-7 days

0

12

Homelite 996281001

Washer (OD12 x ID6.4 x 1.6t) (For Deck Motor Controllers T & U)

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 997351001

Drive Motor Controller

$597.99

$

Usually ships in 3-7 days

0

14

Homelite 997353001

Main Wiring Harness

$266.99

$

Usually ships in 3-7 days

0

15

Homelite 997103001

Charging Controller, ZTR

$44.99

$

In Stock, only 2 left!

0

16

Homelite 997385001

Bolt (Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 997378001

Screw (M4 x 12 mm, Cap Hd.)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 996515001

Charger Receptacle

$

$

Not available
