RY 48131 (099237001) - Ryobi 30" 48V Riding Mower, Rev 01 (2020-03) FIGURE E Parts Diagram

30" 48V Riding Mower, Rev 01

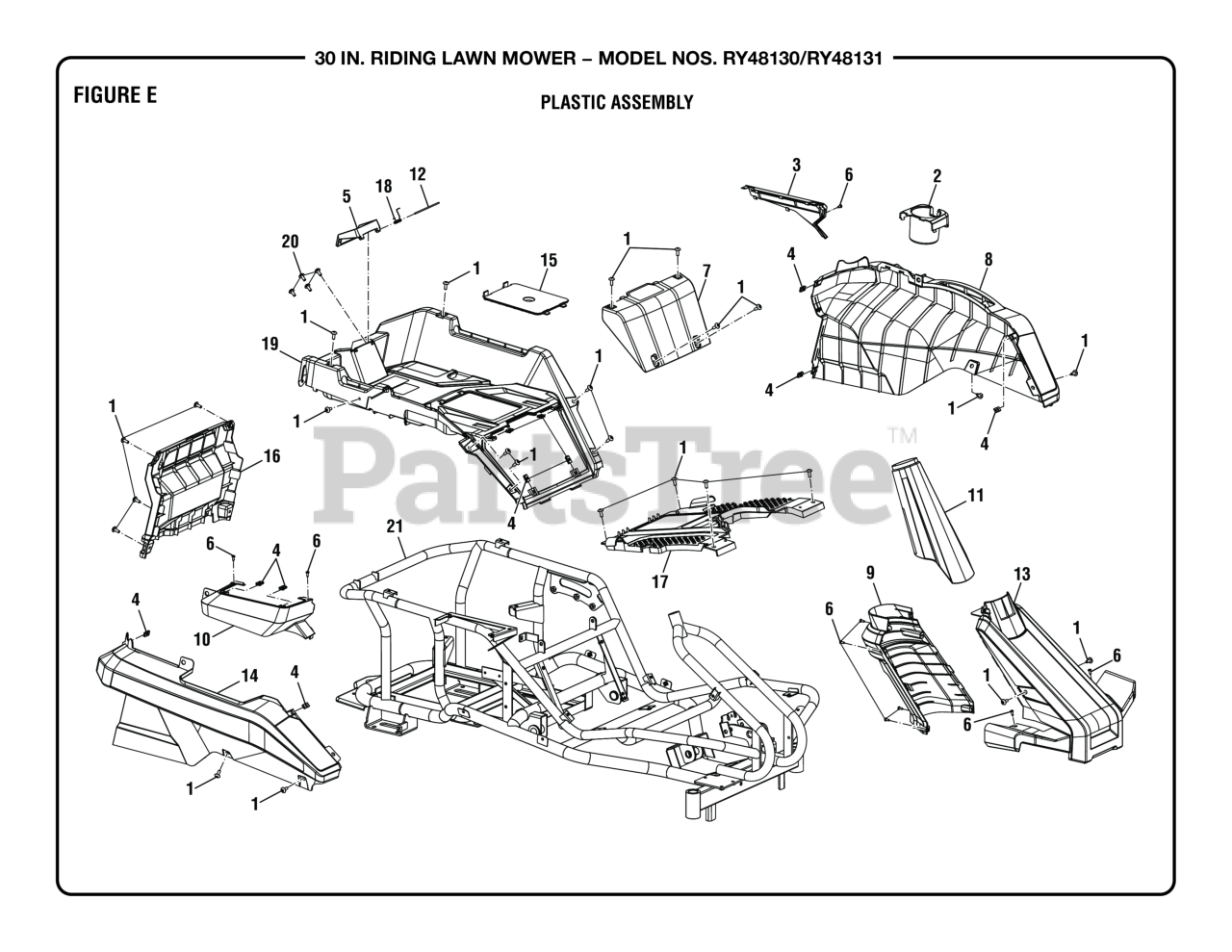

FIGURE E Parts Diagram

  • Title

1

Homelite 994989001

Screw (M6 x 10 mm, Soc. Button Hd.)

$2.99

$

In Stock, Qty 5

0

2

Homelite 997230001

Cup Holder

$50.99

$

Usually ships in 3-7 days

0

3

Homelite 997223001

Rear Console Panel

$6.49

$

Usually ships in 3-7 days

0

4

Homelite 994785001

Clip-On Nut (M6)

$2.49

$

In Stock, Qty 8

0

5

Homelite 997220001

Charging Port Door

$5.99

$

Usually ships in 3-7 days

0

6

Homelite 996291001

Screw (ST4.2 x 13 mm)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 997216001

Front Access Panel

$29.99

$

Usually ships in 3-7 days

0

8

Homelite 997217001

Left Trim Cover

$57.99

$

Usually ships in 3-7 days

0

9

Homelite 997226001

Rear Steering Column Cover

$31.99

$

Usually ships in 3-7 days

0

10

Homelite 997222001

Front Console Panel

$12.99

$

Usually ships in 3-7 days

0

11

Homelite 997224001

Upper Steering Column Cover

$15.99

$

Usually ships in 3-7 days

0

12

Homelite 997069001

Charger Port Door Hinge Pin

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 997225001

Front Steering Column Cover

$54.99

$

Usually ships in 3-7 days

0

14

Homelite 997218001

Right Trim Cover

$56.99

$

Usually ships in 3-7 days

0

15

Homelite 997221001

Top Access Panel

$7.49

$

Usually ships in 3-7 days

0

16

Homelite 997215001

Rear Trim Cover

$31.99

$

Usually ships in 3-7 days

0

17

Homelite 997219001

Floor Panel

$72.99

$

Usually ships in 3-7 days

0

18

Homelite 997075001

Charger Port Door Spring

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 997214001

Center Trim Cover

$102.99

$

Usually ships in 3-7 days

0

20

Homelite 997382001

Screw (M6.3 x 19 mm, Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 997232001

Frame

$1059.99

$

Usually ships in 3-7 days

0
