RY 48131 (099237001) - Ryobi 30" 48V Riding Mower, Rev 01 (2020-03) FIGURE C Parts Diagram

30" 48V Riding Mower, Rev 01

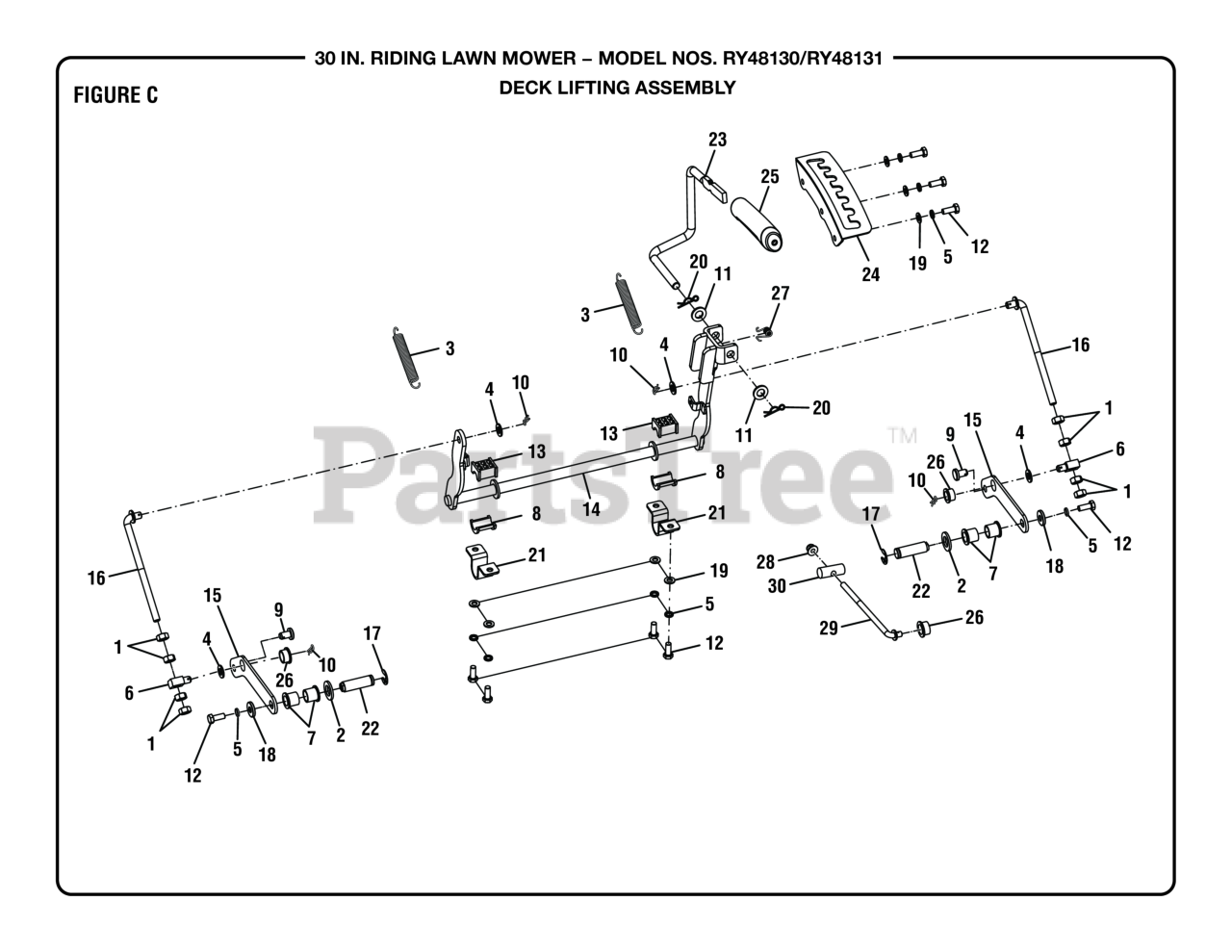

FIGURE C Parts Diagram

  • Title

1

Homelite 996263001

Nut (M10)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 994763001

Washer (OD30 x ID17 x 3t)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 997311001

Spring

$5.99

$

Usually ships in 3-7 days

0

4

Homelite 994996001

Washer (OD20 x ID10.5 x 2t)

$3.49

$

In Stock, Qty 5

0

5

Homelite 994770001

Lock Washer (OD9.8 x ID8.5 x 5t)

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 997318001

Hanger Stud Mount

$4.49

$

Usually ships in 3-7 days

0

7

Homelite 997359001

Deck Lift Linkage Bushing

$5.99

$

In Stock, only 1 left!

0

8

Homelite 997309001

Bottom Axle Bushing

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 997322001

Pin (Rear)

$4.99

$

Usually ships in 3-7 days

0

10

Homelite 996264001

Cotter Pin (10 mm)

$2.49

$

In Stock, Qty 20+

0

11

Homelite 994891001

Washer (OD24 x ID13 x 2.5t)

$2.99

$

Usually ships in 3-7 days

0

12

Homelite 997374001

Hexagon Bolt (M8 x 20 mm)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 997310001

Top Axle Bushing

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 997314001

Rear Deck Lift Assembly

$90.99

$

Usually ships in 3-7 days

0

15

Homelite 997317001

Left Deck Linkage

$12.99

$

Usually ships in 3-7 days

0

16

Homelite 997319001

J Hook Deck Hanger

$7.49

$

Usually ships in 3-7 days

0

17

Homelite 994833001

E-Ring Clip (12 mm)

$2.49

$

In Stock, Qty 5

0

18

Homelite 994954001

Washer (OD12.5 x ID8.4 x 4t)

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 994771001

Washer (OD16 x ID8.4 x 1.6t)

$2.99

$

Usually ships in 3-7 days

0

20

Homelite 994892001

Cotter Pin (12 mm)

$2.99

$

Usually ships in 3-7 days

0

21

Homelite 997308001

Hanger Bracket Frame Mount

$8.99

$

Usually ships in 3-7 days

0

22

Homelite 997316001

Lifting Axle (Rear)

$9.99

$

Usually ships in 3-7 days

0

23

Homelite 997313001

Lever Rod

$12.99

$

Usually ships in 3-7 days

0

24

Homelite 997315001

Detent Plate

$36.99

$

Usually ships in 3-7 days

0

25

Homelite 994972001

Decklift Handle

$13.99

$

Usually ships in 3-7 days

0

26

Homelite 997360001

Nylon Bushing

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 997312001

Torsion Spring Lever

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 996192001

Lock Nut (M10 x 1.5 mm)

$2.49

$

In Stock, Qty 5

0

29

Homelite 997320001

J Hook (Front)

$7.99

$

Usually ships in 3-7 days

0

30

Homelite 997321001

Pivot Axle

$6.99

$

Usually ships in 3-7 days
