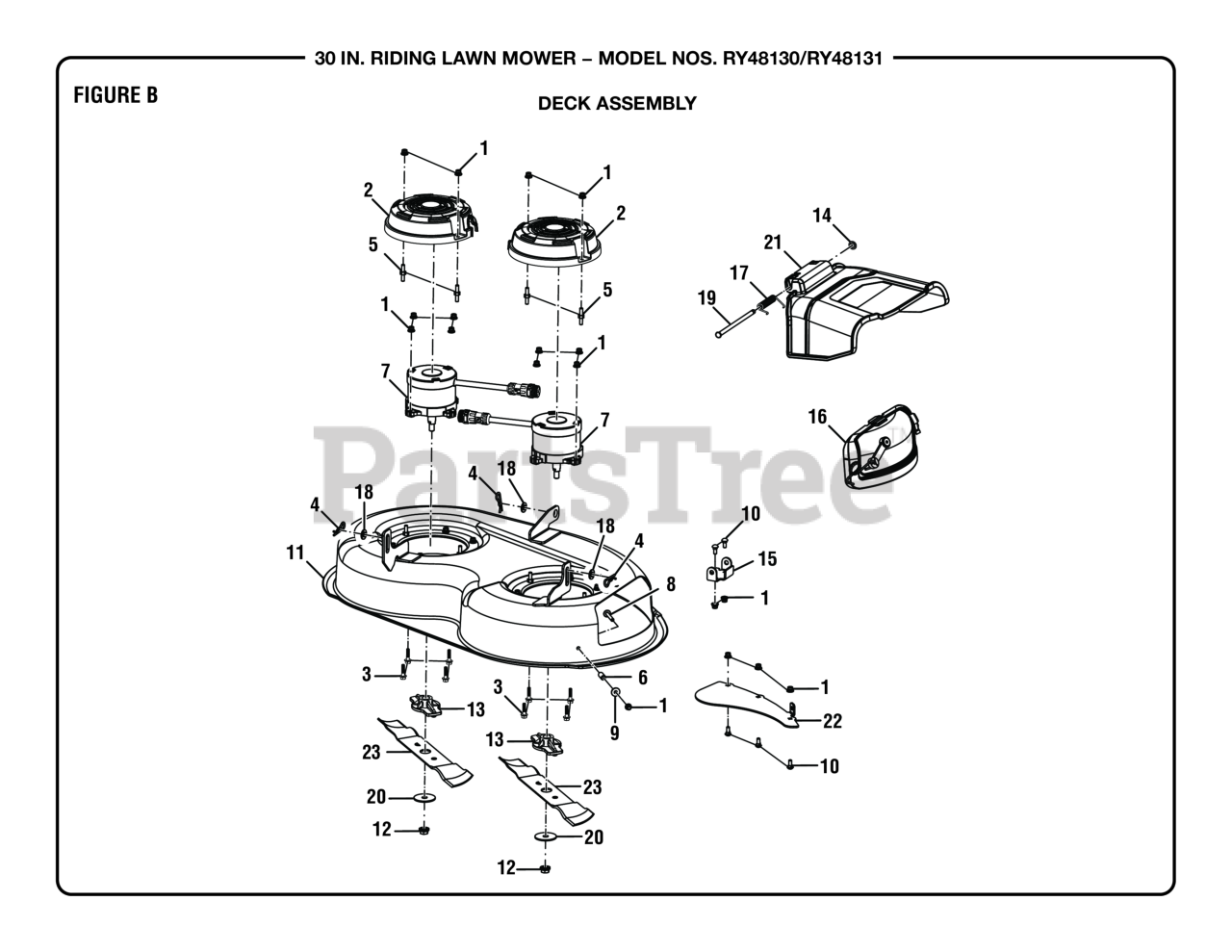

RY 48131 (099237001) - Ryobi 30" 48V Riding Mower, Rev 01 (2020-03) FIGURE B Parts Diagram

30" 48V Riding Mower, Rev 01

FIGURE B Parts Diagram

  • Title

1

Homelite 996251001

Flange Lock Nut (M6 x 1.00)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 997229001

Deck Motor Cover

$6.49

$

Usually ships in 3-7 days

0

3

Homelite 996057001

Flange Bolt (M6 x 25 mm, Hex Hd.)

$2.99

$

In Stock, only 4 left!

0

4

Homelite 996233001

Cotter Pin

$1.99

$

In Stock, only 3 left!

0

5

Homelite 997324001

Deck Motor Stud

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 996039001

Deck Bagger Chute Mounting Shaft

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 997325001

Deck Motor

$450.99

$

Usually ships in 3-7 days

0

8

Homelite 996250001

Screw (M6 x 40, Soc Hd.)

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 996034001

Washer (OD18 x ID6.4 x 1.6t)

$3.49

$

In Stock, Qty 14

0

10

Homelite 994791001

Carriage Bolt (M6 x 16 mm)

$2.99

$

In Stock, only 4 left!

0

11

Homelite 997212001

Deck

$550.99

$

Usually ships in 3-7 days

0

12

Homelite 996261001

Flange Lock Nut (M10 x 1.25)

$2.49

$

In Stock, only 2 left!

0

13

Homelite 997027001

Blade Adapter

$9.99

$

Usually ships in 3-7 days

0

14

Homelite 996292001

Retainer Clip

$2.99

$

Usually ships in 3-7 days

0

15

Homelite 997242001

Discharge Door Bracket

$6.99

$

Usually ships in 3-7 days

0

16

Homelite 997228001

Mulch Plug

$20.99

$

Usually ships in 3-7 days

0

17

Homelite 997326001

Discharge Spring

$6.99

$

Usually ships in 3-7 days

0

18

Homelite 994996001

Washer (OD20 x ID10.5 x 2t)

$3.49

$

In Stock, Qty 5

0

19

Homelite 994981001

Hinge Pin (7.85 x 175.85)

$8.99

$

Usually ships in 3-7 days

0

20

Homelite 997028001

Blade Retainer Washer

$5.99

$

In Stock, only 2 left!

0

21

Homelite 997227001

Discharge Chute

$37.99

$

Usually ships in 3-7 days

0

22

Homelite 997327001

Baffle

$17.99

$

Usually ships in 3-7 days

0

23

Homelite 997241001

Blade (15 in.)

$23.99

$

In Stock, only 2 left!
