RY 48130 (099749020) - Ryobi 30" 48V Riding Mower, Rev 01 (2020-03) FIGURE J Parts Diagram

30" 48V Riding Mower, Rev 01

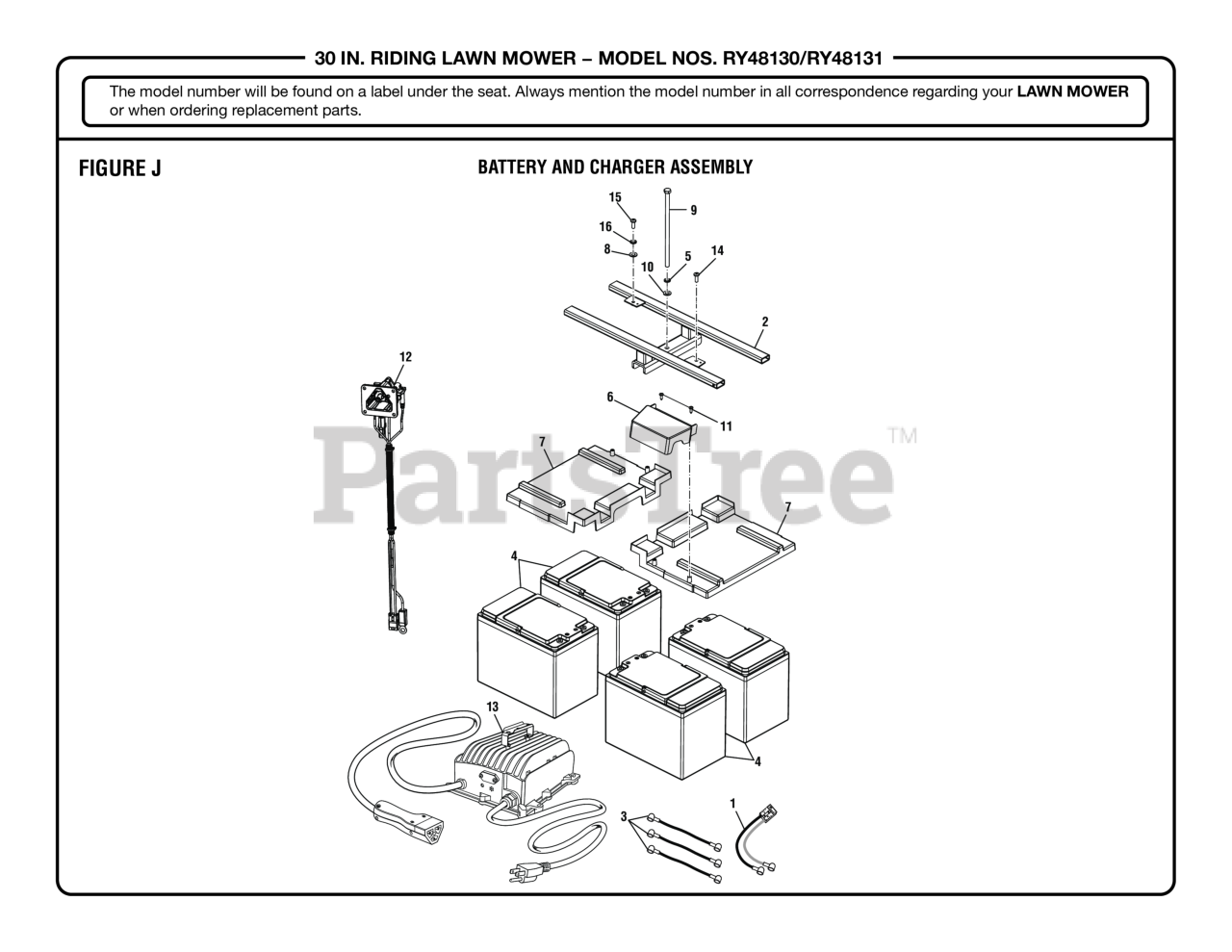

FIGURE J Parts Diagram

  • Title

1

Homelite 997289001

Battery Cable 2

$128.99

$

Usually ships in 3-7 days

0

2

Homelite 997286001

Battery Tie Down

$48.99

$

Usually ships in 3-7 days

0

3

Homelite 997288001

Battery Cable 1

$19.99

$

Usually ships in 3-7 days

0

4

Homelite 997233001

Battery

$

$

Not available

5

Homelite 994770001

Lock Washer (OD9.8 x ID8.5 x 5t)

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 997357001

Main Relay Cover

$5.49

$

Usually ships in 3-7 days

0

7

Homelite 997231001

Battery Cover

$10.99

$

Usually ships in 3-7 days

0

8

Homelite 996035001

Washer (OD7 x ID3.2 x 0.6t) (For Beeper Q)

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 997370001

Bolt (M8 x 180 mm, Hex Hd.)

$8.49

$

Usually ships in 3-7 days

0

10

Homelite 994771001

Washer (OD16 x ID8.4 x 1.6t)

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 996291001

Screw (ST4.2 x 13 mm)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 996515001

Charger Receptacle

$

$

Not available

13

Homelite 996514001

Charger

$

$

Not available

14

Homelite 996213001

SCREW,PPHMS, M5 X 0.8 X 16 - STEEL,

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 997381001

Screw (M3 x 20)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 996055001

WASHER, LOCK SPRING, 3MM, ZINC BLACK

$

$

Not available
