RY 48130 (099749020) - Ryobi 30" 48V Riding Mower, Rev 01 (2020-03) FIGURE A Parts Diagram

30" 48V Riding Mower, Rev 01

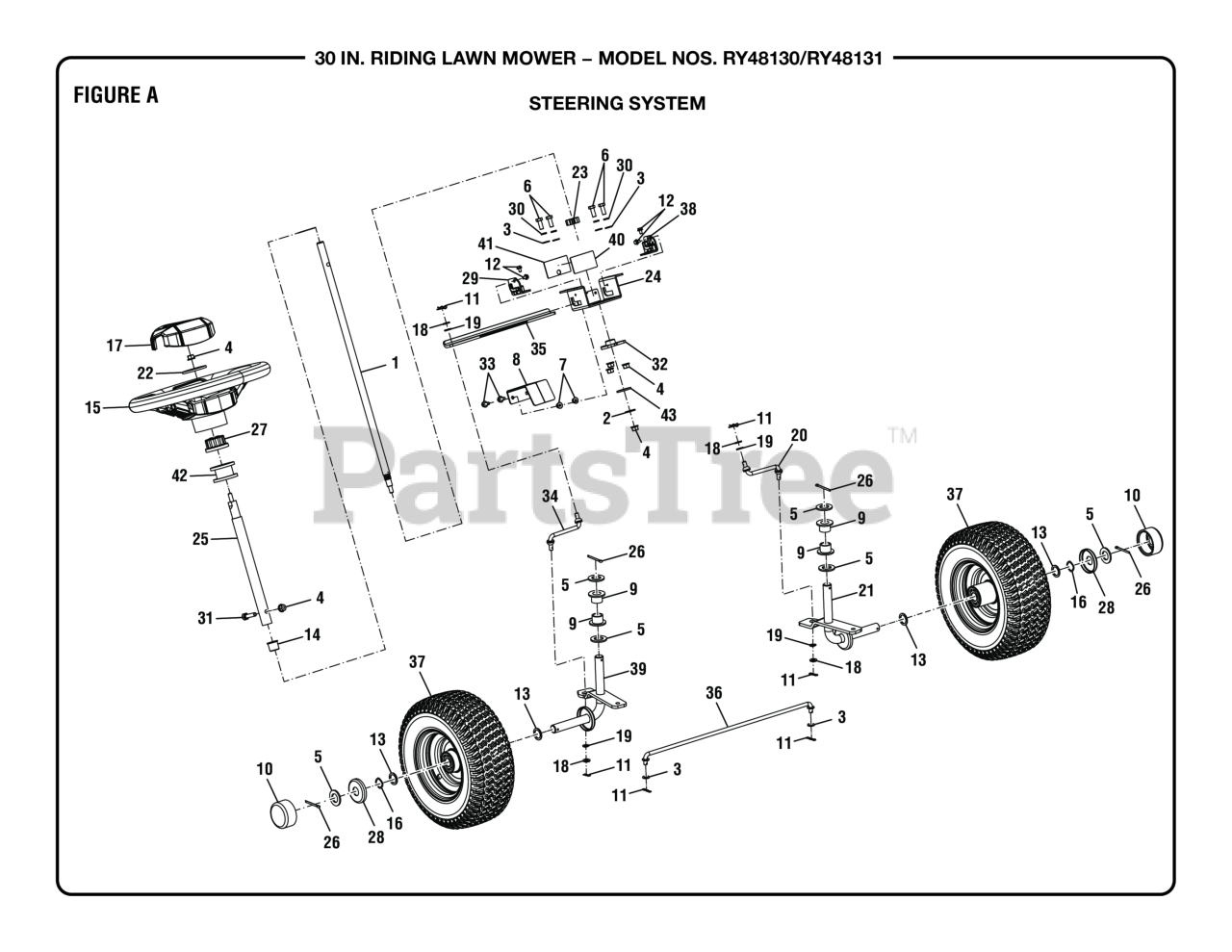

FIGURE A Parts Diagram

  • Title

1

Homelite 997298001

Lower Steering Shaft

$32.99

$

Usually ships in 3-7 days

0

2

Homelite 994827001

Washer (OD 24 x ID8.4 x 2t)

$2.99

$

In Stock, only 1 left!

0

3

Homelite 994771001

Washer (OD16 x ID8.4 x 1.6t)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 994867001

Flange Nut (M8) (For Drive Motor Controller V)

$2.49

$

In Stock, Qty 7

0

5

Homelite 994766001

Washer (OD37 x ID21 x 0.3t)

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 997374001

Hexagon Bolt (M8 x 20 mm)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 994792001

Flange Nut (M6)

$

$

Not available

8

Homelite 997416001

Rack Limiter

$48.99

$

Usually ships in 3-7 days

0

9

Homelite 997301001

Steering Knuckle Bushing

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 996033001

Dust Cover, Front Wheel

$5.49

$

Usually ships in 3-7 days

0

11

Homelite 996013001

Cotter Pin (8 mm)

$2.99

$

In Stock, only 1 left!

0

12

Homelite 996520001

Bolt (M5 x 8 mm, Hex Flange Hd.)

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 994842001

Washer (OD28 x ID20.5 x 2t)

$2.49

$

In Stock, only 3 left!

0

14

Homelite 997293001

Steering Shaft Bushing

$16.99

$

Usually ships in 3-7 days

0

15

Homelite 994873001

Steering Wheel

$181.99

$

In Stock, only 2 left!

0

16

Homelite 996362001

Wavy Washer

$3.49

$

Usually ships in 3-7 days

0

17

Homelite 996043001

Steering Wheel Cap

$29.99

$

In Stock, only 1 left!

0

18

Homelite 997303001

Tie Rod Washer (M8)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 997375001

Wave Washer

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 997305001

Tie Rod (Left)

$11.99

$

Usually ships in 3-7 days

0

21

Homelite 997239001

Steering Knuckle (Left)

$19.99

$

Usually ships in 3-7 days

0

22

Homelite 994899001

Washer Plate

$4.99

$

In Stock, only 1 left!

0

23

Homelite 996225001

Steering Pinion Gear

$22.99

$

Usually ships in 3-7 days

0

24

Homelite 997238001

Steering Rack Seat Bracket

$38.99

$

Usually ships in 3-7 days

0

25

Homelite 997296001

Upper Steering Shaft

$25.99

$

Usually ships in 3-7 days

0

26

Homelite 994768001

Cotter Pin (4 x 40 mm)

$2.49

$

In Stock, Qty 6

0

27

Homelite 994898001

Spline Collar

$9.49

$

Usually ships in 3-7 days

0

28

Homelite 994857001

Front Wheel Bearing Cover

$7.49

$

Usually ships in 3-7 days

0

29

Homelite 997235001

Rack Bushing (Right)

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 994770001

Lock Washer (OD9.8 x ID8.5 x 5t)

$2.99

$

Usually ships in 3-7 days

0

31

Homelite 997297001

Shoulder Bolt (M8 x 38 mm)

$2.99

$

Usually ships in 3-7 days

0

32

Homelite 994863001

Steering Shaft Seat

$13.99

$

Usually ships in 3-7 days

0

33

Homelite 996247001

Flange Bolt (M6 x 14 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 997306001

Tie Rod (Right)

$11.99

$

Usually ships in 3-7 days

0

35

Homelite 997237001

Steering Rack

$59.99

$

Usually ships in 3-7 days

0

36

Homelite 997307001

Sway Bar

$9.49

$

Usually ships in 3-7 days

0

37

Homelite 997302001

Front Wheel Assembly

$172.99

$

Usually ships in 3-7 days

0

38

Homelite 997234001

Rack Bushing (Left)

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 997240001

Steering Knuckle (Right)

$17.99

$

In Stock, only 1 left!

0

40

Homelite 997299001

Rack Washer

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 997300001

Steel Pad

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 997354001

Column Spacer

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 997361001

Washer

$1.49

$

Usually ships in 3-7 days

0
