RY 48112 (099749011) - Ryobi 38" 48V Riding Mower, Rev 01 (2018-02) Figure M (Front Bumber And Skid Assembly) Parts Diagram

38" 48V Riding Mower, Rev 01

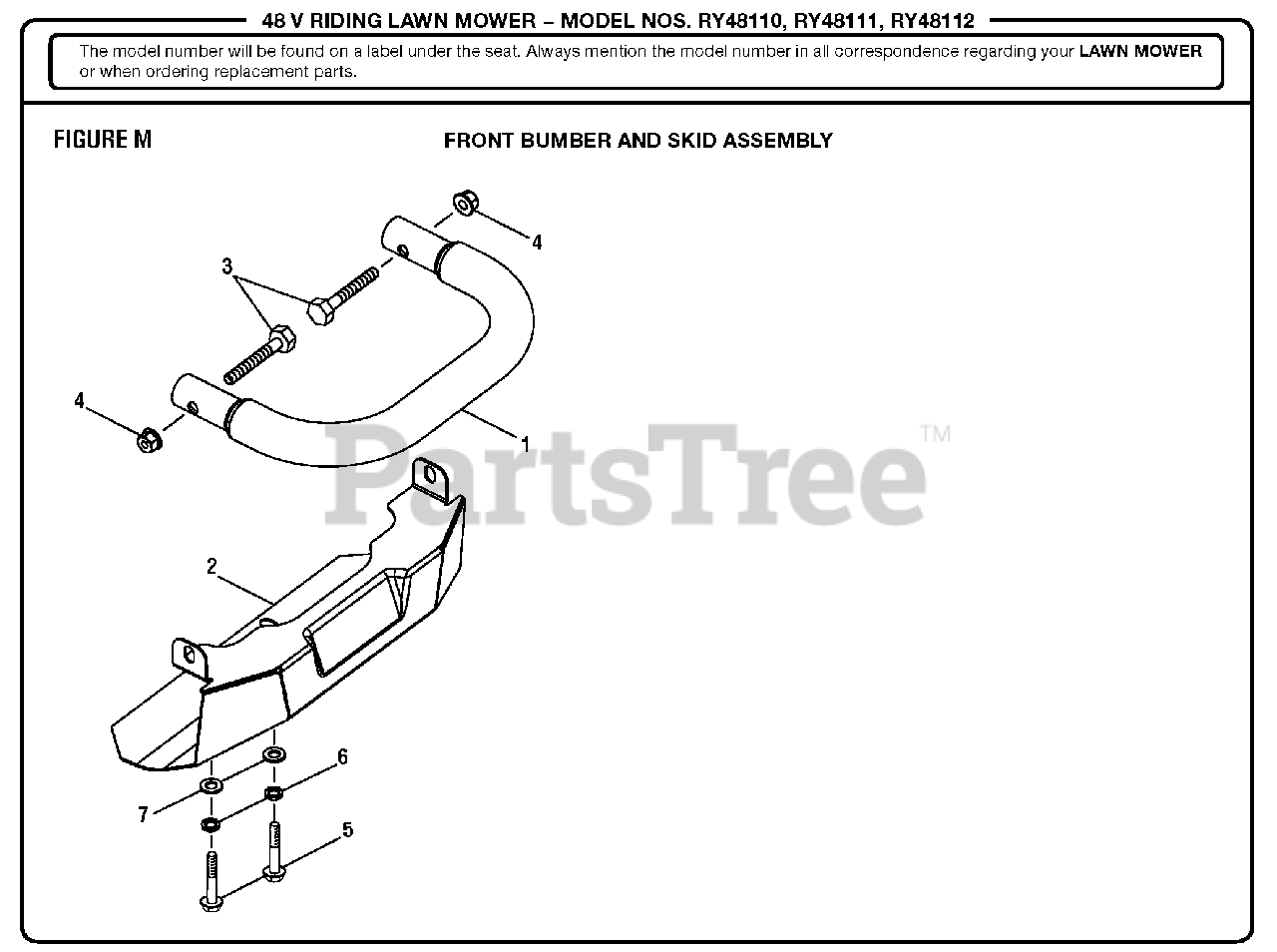

Figure M (Front Bumber And Skid Assembly) Parts Diagram

  • Title
1

Homelite 994894001

Mower Bumper Tube

$36.99

$

Usually ships in 3-7 days

0

2

Homelite 996023001

Front Bumper Cover

$44.99

$

Usually ships in 3-7 days

0

3

Homelite 996289001

Shoulder Bolt (M8 x 50 mm)

$10.99

$

Usually ships in 3-7 days

0

4

Homelite 994867001

Lock Nut (M8 x 1.25)

$2.49

$

In Stock, Qty 7

0

5

Homelite 994795001

Shoulder Bolt (M8 x 45 mm, Hex Flange Hd.)

$2.99

$

In Stock, only 1 left!

0

6

Homelite 994770001

Lock Washer (8 mm)

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 994771001

Washer (OD16 x ID8.4 x 1.6t)

$2.99

$

Usually ships in 3-7 days

0
