RY 48112 (099749003) - Ryobi 38" 48V Riding Mower, Rev 05 (2021-05) FIGURE O - PANEL HOUSING Parts Diagram

38" 48V Riding Mower, Rev 05

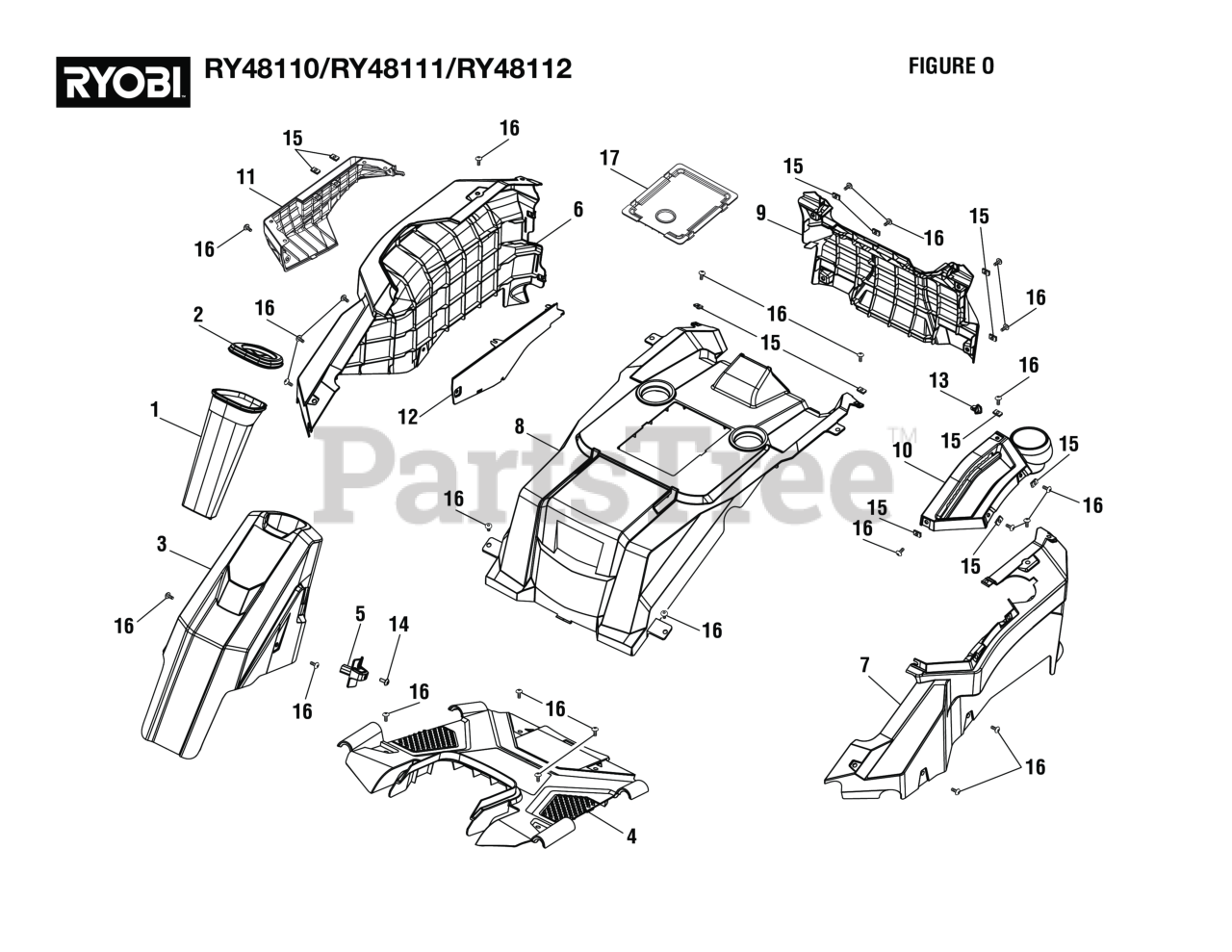

FIGURE O - PANEL HOUSING Parts Diagram

  • Title

1

Homelite 994901001

Upper Steering Column

$17.99

$

Usually ships in 3-7 days

0

2

Homelite 994902001

Steering Column Cover

$7.49

$

Usually ships in 3-7 days

0

3

Homelite 994883001

Lower Steering Column

$70.99

$

Usually ships in 3-7 days

0

4

Homelite 994876001

Floor Pan

$

$

Not available

5

Homelite 994910001

Parking Brake Lever

$9.49

$

Usually ships in 3-7 days

0

6

Homelite 994879001

Right Fender Housing

$69.99

$

Usually ships in 3-7 days

0

7

Homelite 994880001

Left Fender Housing

$73.99

$

Usually ships in 3-7 days

0

8

Homelite 994907001

Seat Pan

$130.99

$

Usually ships in 3-7 days

0

9

Homelite 994895001

Rear Mover Cover

$42.99

$

Usually ships in 3-7 days

0

10

Homelite 994900001

Deck Lift Console

$28.99

$

Usually ships in 3-7 days

0

11

Homelite 994882001

Console

$15.99

$

Usually ships in 3-7 days

0

12

Homelite 994786001

Rear Console Cover

$7.49

$

Usually ships in 3-7 days

0

13

Homelite 994958001

Indicator Flag

$2.99

$

Usually ships in 3-7 days

0

14

Homelite 996297001

Screw (M4 x 10 mm, Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 994785001

Clip-On Nut (M6)

$2.49

$

In Stock, Qty 8

0

16

Homelite 994989001

Screw (M6 x 10 mm, Soc. Button Hd.)

$2.99

$

In Stock, Qty 5

0

17

Homelite 996002001

Battery Access Cap

$8.99

$

Usually ships in 3-7 days

0
