RY 48112 (099749003) - Ryobi 38" 48V Riding Mower, Rev 05 (2021-05) FIGURE K - ACCELERATOR ASSEMBLY Parts Diagram

38" 48V Riding Mower, Rev 05

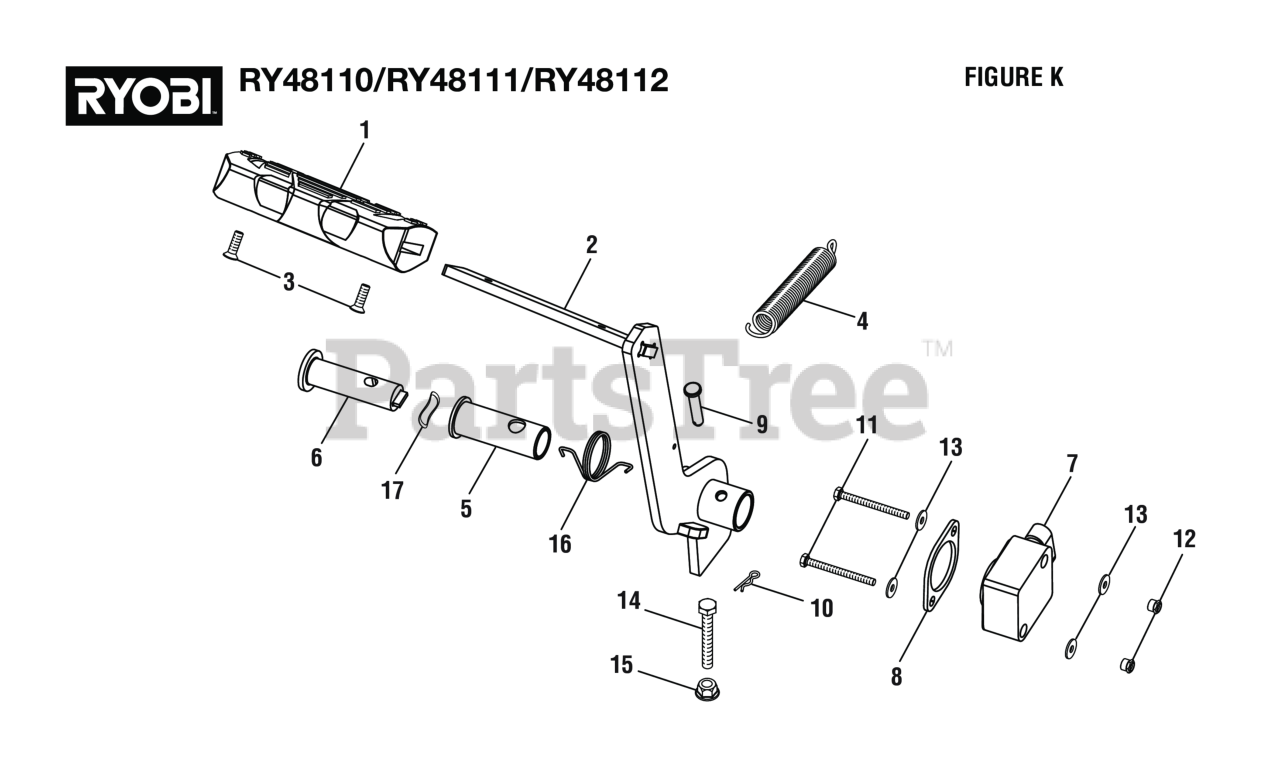

FIGURE K - ACCELERATOR ASSEMBLY Parts Diagram

  • Title

1

Homelite 994931001

Brake Pedal

$

$

Not available

2

Homelite 994859001

Acceleration Pedal

$

$

Not available

3

Homelite 994937001

Screw (M5 x 16 mm, Flat Hd.)

$

$

Not available

4

Homelite 994838001

Pedal Spring

$5.49

$

Usually ships in 3-7 days

0

5

Homelite 994848001

Accelerator Axle Bushing

$

$

Not available

6

Homelite 994847001

Accelerator Axle

$

$

Not available

7

Homelite 994840001

Speed Control Switch
(Superseded to 996499001)

$246.99

$

Usually ships in 3-7 days

0

8

Homelite 994858001

Control Switch Mounting Bracket

$3.99

$

Usually ships in 3-7 days

0

9

Homelite 994769001

Clevis Pin (6 x 30 mm)

$

$

Not available

10

Homelite 996293001

Cotter Pin (6 mm)

$

$

Not available

11

Homelite 996254001

Bolt (M4 x 45 mm, Hex Hd.)

$

$

Not available

12

Homelite 996301001

Nut (M4 x 0.7, Lock)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 996294001

Washer (OD12 x ID4.3 x 1t)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 996061001

Bolt (M6 x 45 mm, Hex Hd.)

$

$

Not available

15

Homelite 994792001

Flange Nut (M6)

$

$

Not available

16

Homelite 996365001

Torsion Spring

$

$

Not available

17

Homelite 996355001

Spring Washer (OD20.5 x ID17 x 0.3t)

$3.49

$

In Stock, only 2 left!

0
