RY 48112 (099749003) - Ryobi 38" 48V Riding Mower, Rev 05 (2021-05) FIGURE H - DRIVE TRAIN ASSEMBLY Parts Diagram
38" 48V Riding Mower, Rev 05

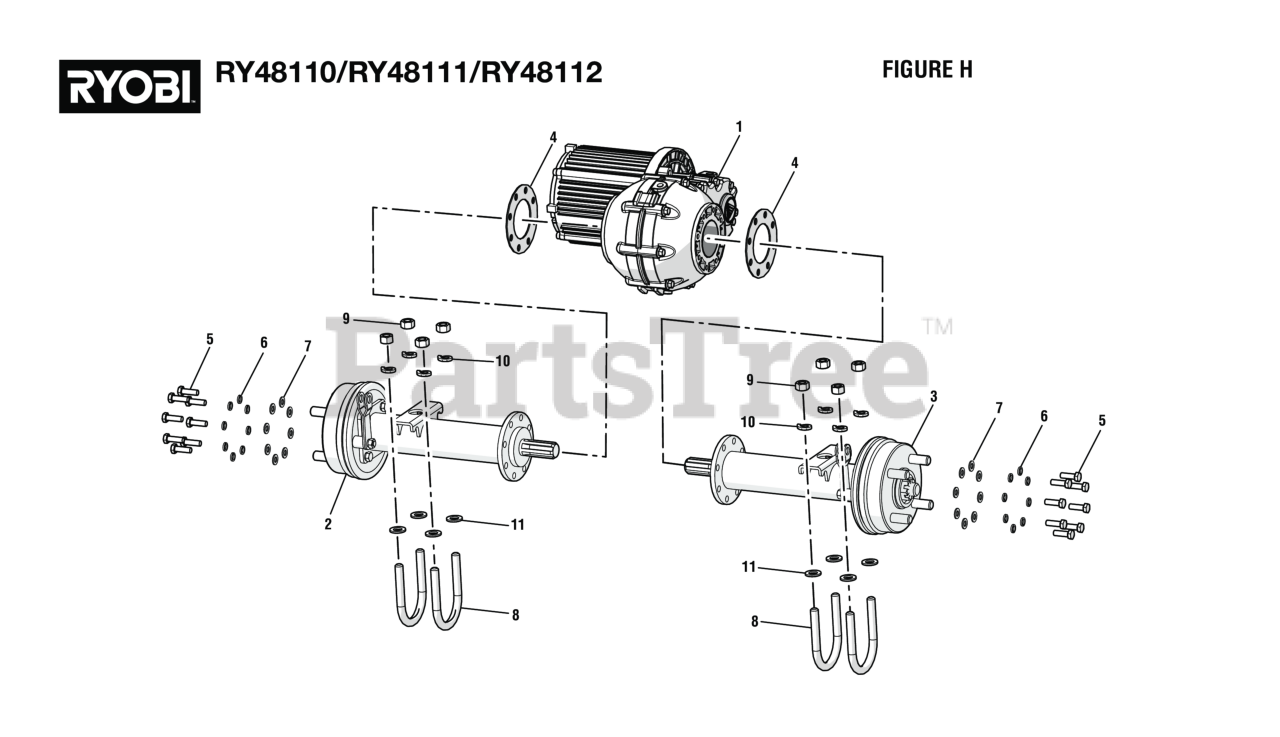

FIGURE H - DRIVE TRAIN ASSEMBLY Parts Diagram
Homelite 994920001
Transaxle
$1179.99
$
Usually ships in 3-7 days
Homelite 994801001
Left Rear Axle
$226.99
$
Usually ships in 3-7 days
Homelite 994800001
Right Rear Axle
$226.99
$
Usually ships in 3-7 days
Homelite 996045001
Transmission Gasket
$3.49
$
Usually ships in 3-7 days
Homelite 996046001
Bolt (M8 x 25 mm, Hex Hd.)
$2.99
$
Usually ships in 3-7 days
Homelite 994770001
Lock Washer (OD9.8 x ID8.5 x 5t)
$2.99
$
Usually ships in 3-7 days
Homelite 994771001
Washer (OD16 x ID8.4 x 1.6t)
$2.99
$
Usually ships in 3-7 days
Homelite 994809001
U-Bolt
$
$
Not available
Homelite 994788001
Hex Nut (M12 x 1.75 mm)
$
$
Not available
Homelite 996062001
Spring Washer (OD20 x ID12.4 x 2t)
$
$
Not available
Homelite 994891001
Washer (OD24 x ID13 x 2.5t)
$2.99
$
Usually ships in 3-7 days
