RY 48112 (099749003) - Ryobi 38" 48V Riding Mower, Rev 04 (2017-11) Figure S Parts Diagram

38" 48V Riding Mower, Rev 04

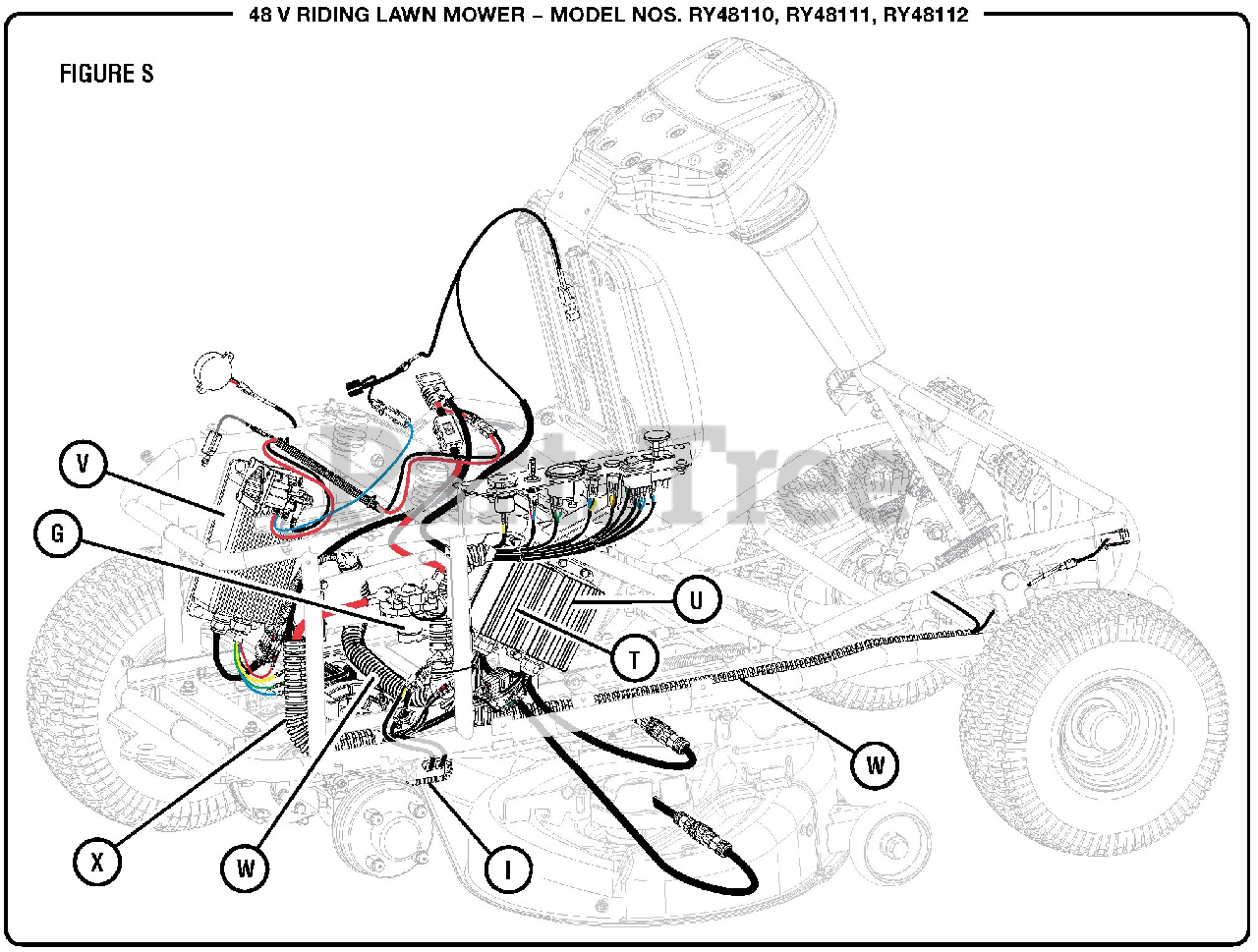

Figure S Parts Diagram

  • Title

1

Homelite 994781001

12 Volt Power Converter (I)
(Superseded to 997077001)

$120.99

$

Usually ships in 3-7 days

0

2

Homelite 994861001

Master Deck Motor Controller (T)
(Superseded to 996506001)

$589.99

$

In Stock, only 3 left!

0

3

Homelite 996244001

Slave Deck Motor Controller (U)
(Superseded to 996507001)

$573.99

$

Usually ships in 3-7 days

0

4

Homelite 994862001

Drive Motor Controller (V)
(Superseded to 996508001)

$765.99

$

Usually ships in 3-7 days

0

5

Homelite 996271001

Main Wiring Harness (W)
(Superseded to 996498001)

$520.99

$

Usually ships in 3-7 days

0

6

Homelite 996273001

Sub Wiring Harness (X)

$516.99

$

Usually ships in 3-7 days

0

7

Homelite 994993001

Main Relay (G)
(Superseded to 996497001)

$161.99

$

Usually ships in 3-7 days

0

Homelite 996381001

Heat Shrink (19.1 x 80 mm, Main Wiring Harness)

Note: Not Shown:

$3.99

$

Usually ships in 3-7 days

0

Homelite 996382001

Heat Shrink (15.9 x 80 mm, Main Wiring Harness)

$1.99

$

Usually ships in 3-7 days

0

Homelite 996383001

Heat Shrink (12.7 x 60 mm, Main Wiring Harness)

$5.49

$

Usually ships in 3-7 days

0

Homelite 996384001

Heat Shrink (25.4 x 80 mm, Drive Motor Controller, Power/Motor Wiring)

$14.99

$

Usually ships in 3-7 days

0
