RY 48112 (099749003) - Ryobi 38" 48V Riding Mower, Rev 04 (2017-11) Figure D Parts Diagram

38" 48V Riding Mower, Rev 04

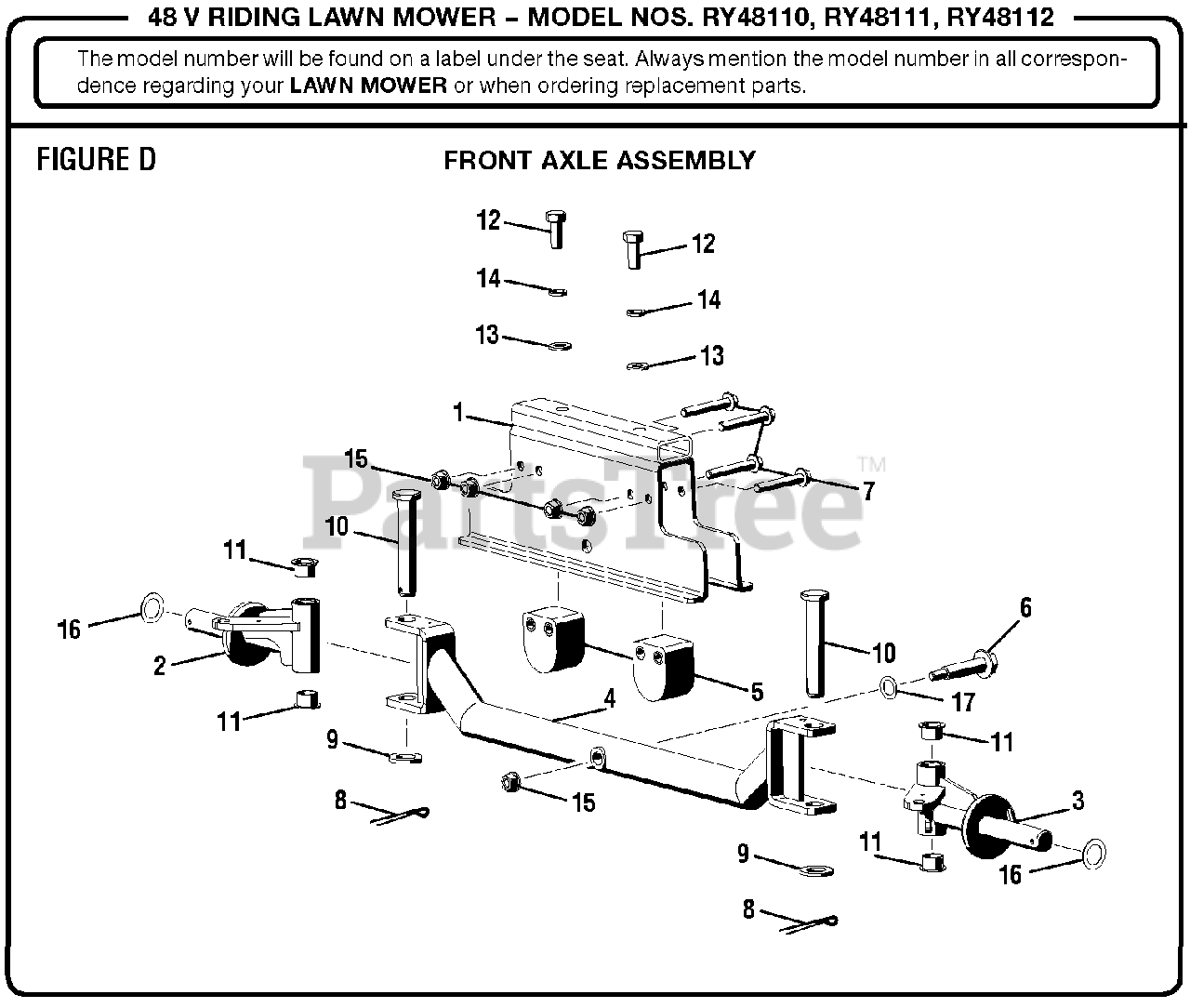

Figure D Parts Diagram

  • Title

1

Homelite 994864001

Front Axle Channel Plate w/Brackets

$

$

Not available

2

Homelite 994835001

Right Steering Knuckle

$30.99

$

Usually ships in 3-7 days

0

3

Homelite 994834001

Left Steering Knuckle

$30.99

$

Usually ships in 3-7 days

0

4

Homelite 994826001

Front Axle

$87.99

$

Usually ships in 3-7 days

0

5

Homelite 996224001

Front Axle Rubber Bumper Assembly

$

$

Not available

6

Homelite 994789001

Shoulder Bolt (M8 x 60 mm, Flange Hex Hd.)

$9.99

$

Usually ships in 3-7 days

0

7

Homelite 996237001

Bolt (M8 x 55 mm, Flange Hex Hd.)

$

$

Not available

8

Homelite 994768001

Cotter Pin (4 x 40)

$2.49

$

In Stock, Qty 6

0

9

Homelite 994763001

Washer (OD30 x ID17 x 3t)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 994778001

Steering Knuckle Anchor

$15.99

$

Usually ships in 3-7 days

0

11

Homelite 994865001

Steering Knuckle Bushing

$5.99

$

Usually ships in 3-7 days

0

12

Homelite 996323001

Bolt (M10 x 45 mm, Hex Hd.)

$

$

Not available

13

Homelite 994996001

Washer (M10 x 20 mm)

$3.49

$

In Stock, Qty 5

0

14

Homelite 994998001

Lock Washer (M10)

$

$

Not available

15

Homelite 994867001

Flange Nut (M8)

$2.49

$

In Stock, Qty 7

0

16

Homelite 994842001

Washer (OD28 x ID20.5 x 2t)

$2.49

$

In Stock, only 3 left!

0

17

Homelite 994891001

Washer (OD24 x ID13 x 2.5t)

$2.99

$

Usually ships in 3-7 days

0
