RY 48112 (099749003) - Ryobi 38" 48V Riding Mower, Rev 04 (2017-11) Figure B Parts Diagram

38" 48V Riding Mower, Rev 04

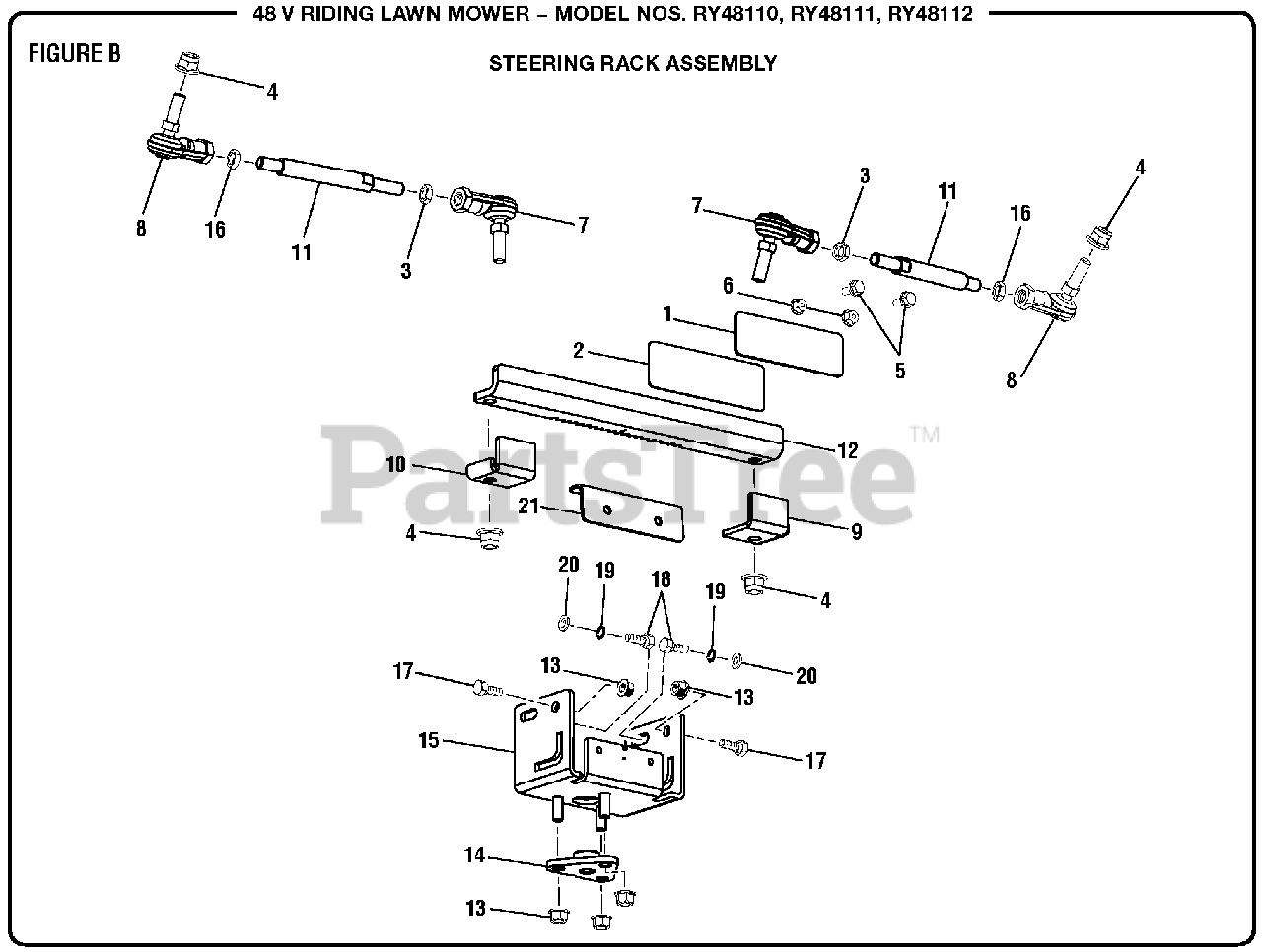

Figure B Parts Diagram

  • Title

1

Homelite 996044001

Steel Pad

$

$

Not available

2

Homelite 994832001

Shim Steering Rack

$

$

Not available

3

Homelite 994836001

Nut (M10)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 996249001

Flange Lock Nut (M10 x 1.25 mm)

$2.49

$

In Stock, only 2 left!

0

5

Homelite 996247001

Flange Bolt (M6 x 14 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 994792001

Flange Nut (M6)

$

$

Not available

7

Homelite 996245001

Rod End

$26.99

$

Usually ships in 3-7 days

0

8

Homelite 996246001

Rod End 2

$28.99

$

In Stock, only 1 left!

0

9

Homelite 996222001

Left Rack Limiter

$4.49

$

Usually ships in 3-7 days

0

10

Homelite 996223001

Right Rack Limiter

$4.49

$

Usually ships in 3-7 days

0

11

Homelite 994866001

Tie Rod

$14.99

$

In Stock, only 2 left!

0

12

Homelite 996221001

Steering Rack

$70.99

$

Usually ships in 3-7 days

0

13

Homelite 994867001

Flange Nut (M8)

$2.49

$

In Stock, Qty 7

0

14

Homelite 994863001

Steering Shaft Seat

$13.99

$

Usually ships in 3-7 days

0

15

Homelite 994841001

Seat Bracket

$

$

Not available

16

Homelite 996343001

Hex Nut (M10 x 1.25 mm, Left Hand)

$1.99

$

In Stock, Qty 5

0

17

Homelite 996255001

Hex Bolt (M8 x 25 mm)

$

$

Not available

18

Homelite 996046001

Bolt (M8 x 25 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 994770001

Lock Washer (M8)

$2.99

$

Usually ships in 3-7 days

0

20

Homelite 994771001

Washer (M8)

$2.99

$

Usually ships in 3-7 days

0

21

Homelite 996354001

Rack Shim Limiter

$

$

Not available
