RY 48112 (099749003) - Ryobi 38" 48V Riding Mower, Rev 03 (2017-05) Figure R Parts Diagram

38" 48V Riding Mower, Rev 03

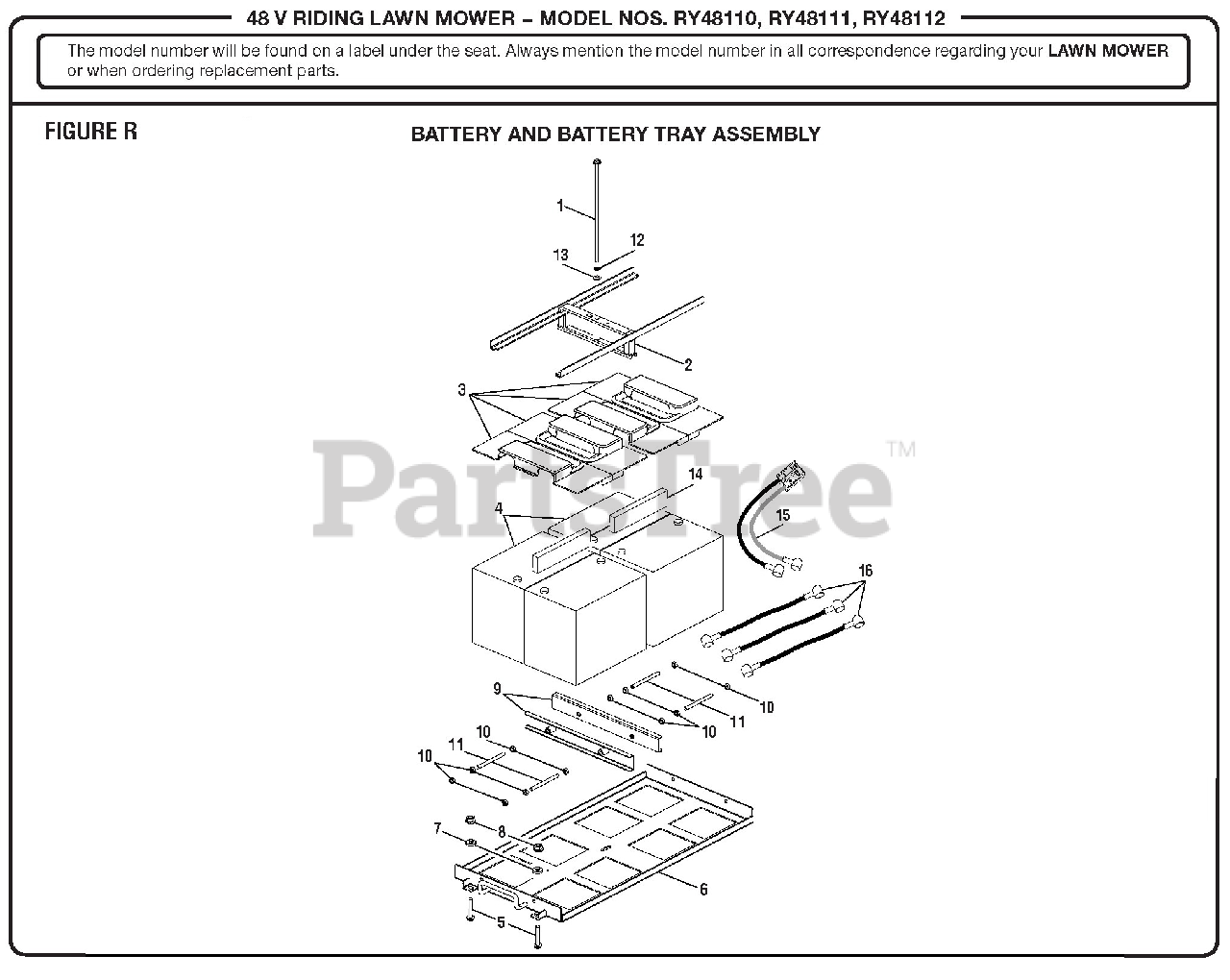

Figure R Parts Diagram

  • Title

1

Homelite 996357001

Bolt (M8)

$12.99

$

Usually ships in 3-7 days

0

2

Homelite 994925001

Battery Tie Down

$54.99

$

Usually ships in 3-7 days

0

3

Homelite 994990001

Battery Cover

$

$

Not available

4

Homelite 996269001

Battery (LPC12-75, RY48110, RY48112)

$

$

Not available

Homelite 996239001

Battery (LPC12-100, RY48111)

$431.99

$

Usually ships in 3-7 days

0

5

Homelite 996237001

Flange Bolt (M8 x 55 mm, Hex Hd.)

$

$

Not available

6

Homelite 994923001

Battery Tray

$

$

Not available

7

Homelite 996038001

Metal Bushing

$

$

Not available

8

Homelite 994867001

Flange Nut (M8)

$2.49

$

In Stock, Qty 7

0

9

Homelite 996351001

Battery Holder Bracket

$

$

Not available

10

Homelite 996346001

Hex Nut (M8)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 996350001

Threaded Rod (M8 x 100 mm)

$

$

Not available

12

Homelite 994770001

Lock Washer (OD9.8 x ID8.5 x 5t)

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 994954001

Washer (OD12.5 x ID8.4 x 4t)

$2.99

$

Usually ships in 3-7 days

0

14

Homelite 996363001

Battery Spacer (LPC12-75)

$

$

Not available

15

Homelite 996270001

Two Wire Battery Cable (4 AWG Black & 4 AWG Red, 250 mm)

$129.99

$

Usually ships in 3-7 days

0

16

Homelite 996272001

Battery Cable w/Covers (Red and Black, 120 mm)

$36.99

$

In Stock, only 1 left!

0
