RY 48112 (099749003) - Ryobi 38" 48V Riding Mower, Rev 03 (2017-05) Figure C Parts Diagram

38" 48V Riding Mower, Rev 03

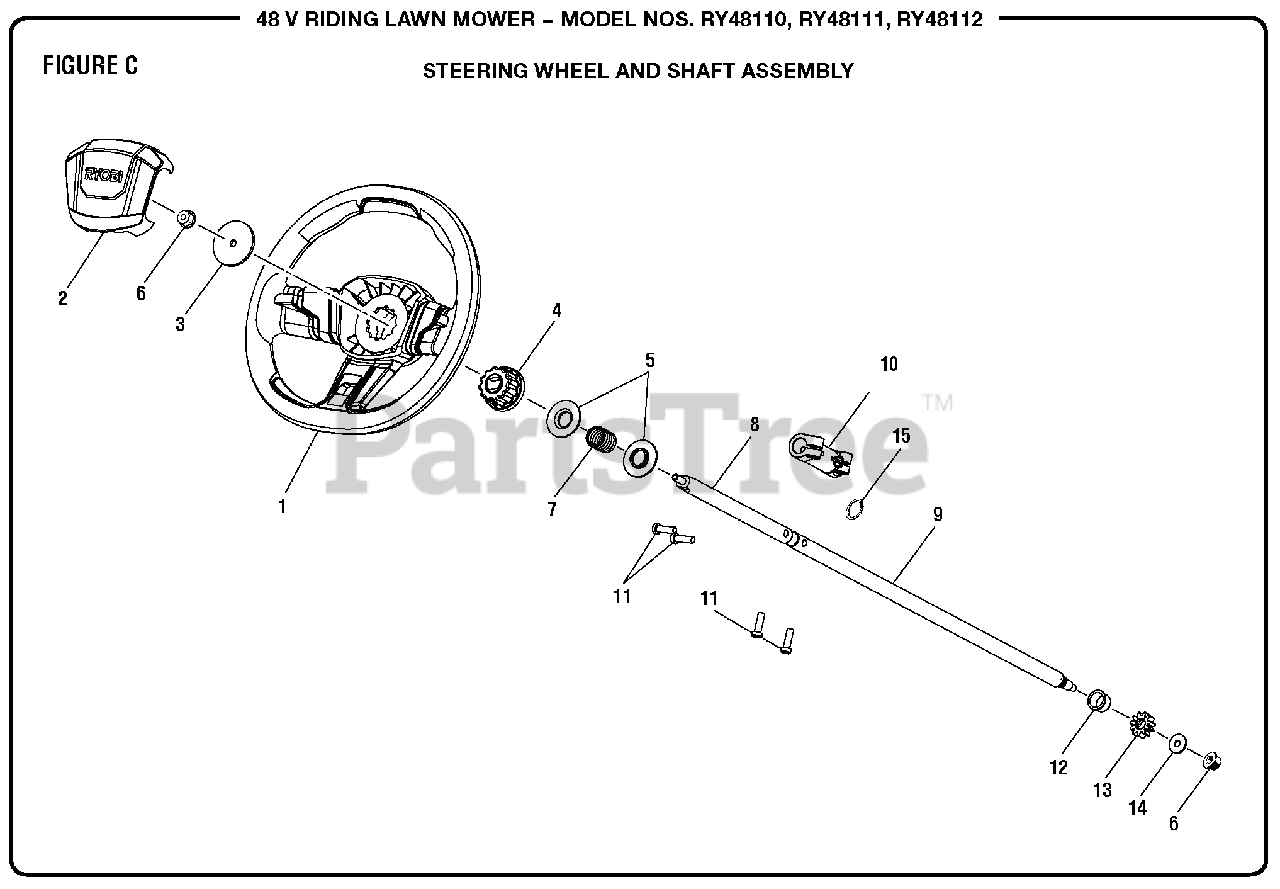

Figure C Parts Diagram

  • Title

1

Homelite 994873001

Steering Wheel

$181.99

$

In Stock, only 2 left!

0

2

Homelite 996043001

Steering Wheel Cap

$29.99

$

In Stock, only 1 left!

0

3

Homelite 994899001

Washer Plate

$4.99

$

In Stock, only 1 left!

0

4

Homelite 994898001

Spline Collar

$9.49

$

Usually ships in 3-7 days

0

5

Homelite 996031001

Spring Seat

$2.99

$

In Stock, Qty 5

0

6

Homelite 994867001

Flange Lock Nut (M8)

$2.49

$

In Stock, Qty 7

0

7

Homelite 996032001

Steering Shaft Spring

$2.99

$

Usually ships in 3-7 days

0

8

Homelite 996027001

Upper Steering Shaft

$52.99

$

Usually ships in 3-7 days

0

9

Homelite 996026001

Lower Steering Shaft

$68.99

$

In Stock, only 1 left!

0

10

Homelite 996024001

Steering Shaft Coupling

$16.99

$

In Stock, only 1 left!

0

11

Homelite 996025001

Screw (M8 x 25 mm, Soc. Hd.)

$2.49

$

In Stock, Qty 5

0

12

Homelite 994860001

Flanged Bushing (19 x 22 x 15)

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 996225001

Steering Pinion Gear

$22.99

$

Usually ships in 3-7 days

0

14

Homelite 994827001

Washer (OD24 x ID8.4 x 2t)

$2.99

$

In Stock, only 1 left!

0

15

Homelite 996359001

Retaining Ring

$2.99

$

In Stock, only 1 left!

0
