RY 46501 A - Ryobi Cultivator, Electric Replacement Part Drawing Parts Diagram

Cultivator, Electric

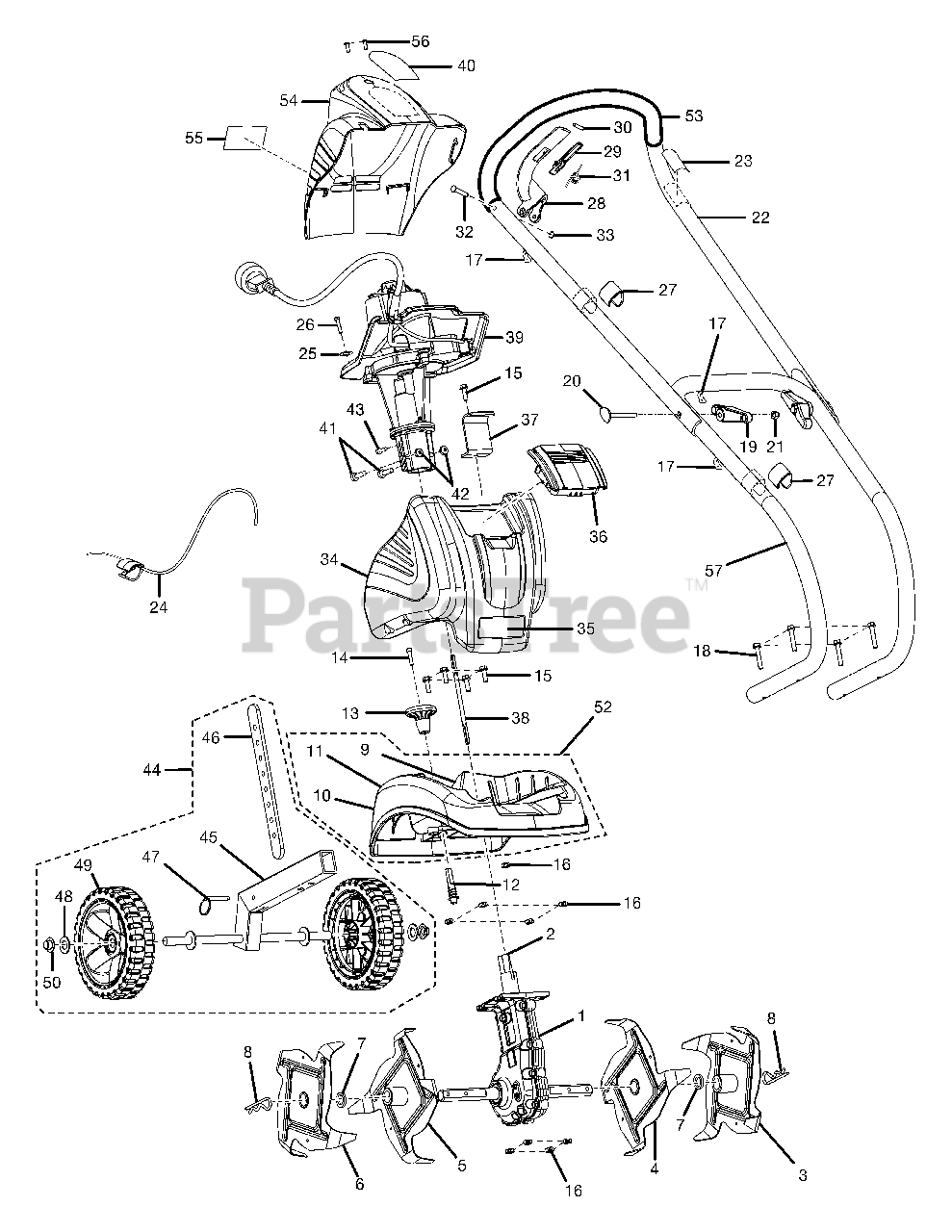

Replacement Part Drawing Parts Diagram

  • Title

1

Homelite 220032001

GEAR BOX ASSY W/TUBE AND LINER

$

$

Not available

2

Homelite 518279001

LINER-HELIX (47 mm)

$

$

Not available

3

Homelite 308216002

TINE ASSEMBLY (A)
(Superseded to UT15550A-25)

$23.99

$

Usually ships in 3-7 days

0

4

Homelite 308216003

TINE ASSEMBLY (B)
(Superseded to UT15550A-26)

$

$

Not available

5

Homelite 308216004

TINE ASSEMBLY (C)
(Superseded to UT15550A-27)

$23.99

$

Usually ships in 3-7 days

0

6

Homelite 308216005

TINE ASSEMBLY (D)
(Superseded to UT15550A-28)

$23.99

$

Usually ships in 3-7 days

0

7

Homelite 900755001

FELT WASHER
(Superseded to UT15550A-36)

$1.99

$

In Stock, Qty 8

0

8

Homelite 638001004

CLEVIS CLIP
(Superseded to 3320543G)

$1.99

$

In Stock, Qty 5

0

9

Homelite 950119001

WARNING LABEL (BACK LEFT)

$

$

Not available

10

Homelite 950124002

WARNING LABEL (BACK RIGHT)

$

$

Not available

11

Homelite 950119010

WARNING LABEL (FOOT)

$

$

Not available

12

Homelite 308228001

RECEIVER RETAINER ASSEMBLY

$

$

Not available

13

Homelite 518206001

KNOB

$3.49

$

Usually ships in 3-7 days

0

14

Homelite 660713001

SCREW (M5 x 16 mm SOC. WASHER HD. CAP)

Note: Purchase Locally.

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 660643002

BOLT (1/4-20 x 1 in. HEX HD.)
(Superseded to 82496)

Note: Purchase Locally.

$

$

Not available

16

Homelite 678132001

LOCK NUT (1/4-20)

Note: Purchase Locally.

$

$

Not available

17

Homelite 700810001

HEAT SHRINK TUBING

$4.49

$

Usually ships in 3-7 days

0

18

Homelite 660643001

BOLT (HANDLE) (1/4-20 x 1-1/2 in. HEX HD.)

Note: Purchase Locally.

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 518190001

KNOB (1/4-20)

$

$

Not available

20

Homelite 660711002

CARRAIGE BOLT (1/4-20 x 2-1/4 in.)

Note: Purchase Locally.

$

$

Not available

21

Homelite 678142001

NUT-ACORN, CENTERLOCK (1/4-20)

Note: Purchase Locally.

$

$

Not available

22

Homelite 308339002

HANDLE, UPPER ASSEMBLY W/GRIP AND LABEL

Note: INC. KEY NOS. 17, 23 & 53)

$

$

Not available

23

Homelite 950124004

BOOM LABEL

$

$

Not available

24

Homelite 308293001

THROTTLE CABLE ASSEMBLY

$

$

Not available

25

Homelite 983788174

WASHER

Note: (FOR ATTACHING THROTTLE CABLE TO MOTOR)

$

$

Not available

26

Homelite 660734001

SCREW (M4 x 16 mm)

Note: (FOR ATTACHING THROTTLE CABLE TO MOTOR)

$1.99

$

In Stock, only 3 left!

0

27

Homelite 518205001

CLIP

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 518280001

TRIGGER

$7.49

$

Usually ships in 3-7 days

0

29

Homelite 518281001

LOCK OUT LEVER

$

$

Not available

30

Homelite 638138001

PIN

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 638139001

SPRING

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 638132001

CLEVIS PIN

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 678135001

RETAINING RING

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 308217001

TANK, BALLAST ASSEMBLY

Note: (INC. KEY NO. 35)

$

$

Not available

35

Homelite 950119004

LOGO LABEL

$

$

Not available

36

Homelite 360992001

LID

$

$

Not available

37

Homelite 638099001

MOUNTING BRACKET

$

$

Not available

38

Homelite 620388001

DRIVE SHAFT

$12.99

$

Usually ships in 3-7 days

0

39

Homelite 230128001

MOTOR AND PINION ASSEMBLY

$

$

Not available

40

Homelite 950124003

LABEL, ELECTRIC AMP LOGO

$

$

Not available

41

Homelite 660429001

SCREW (M5 x 19 mm SOC. HD. CAP)

Note: Purchase Locally.

$

$

Not available

42

Homelite 678213001

SQUARE NUT (M5)

Note: Purchase Locally

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 968702007

SCREW (8-16 x 1/2 in. PAN HD.)

Note: Purchase Locally

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 308213001

WHEEL/DRAG STAKE ASSEMBLY

Note: (INC. KEY NOS. 45, 46, 47, 48, 49 AND 50)

$

$

Not available

45

Homelite 308222001

FRAME ASSEMBLY

$

$

Not available

46

Homelite 638017004

DRAG STAKE

$11.99

$

Usually ships in 3-7 days

0

47

Homelite 638017003

HITCH PIN

$14.99

$

Usually ships in 3-7 days

0

48

Homelite 638017002

WASHER

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 308236001

WHEEL ASSEMBLY

$

$

Not available

50

Homelite 678136001

PUSH CAP NUT (1/2 in.)
(Superseded to 638635001)

Note: Purchase Locally.

$

$

Not available

51

Homelite 950124005

HANG TAG, WHEEL ASSEMBLY

Note: (NOT SHOWN)

$

$

Not available

52

Homelite 308367001

TINE SHIELD ASSEMBLY

Note: (INC. KEY NOS. 9,10 AND 11)

$

$

Not available

53

Homelite 518053002

GRIP

$17.99

$

Usually ships in 3-7 days

0

54

Homelite 308366001

REAR HOUSING ASSEMBLY

Note: (INC. KEY NOS. 40 & 55)

$

$

Not available

55

Homelite 950124001

DATA LABEL

$

$

Not available

56

Homelite 983638006

SCREW (M4 x 13 mm TF.)

Note: Purchase Locally.

$2.49

$

Usually ships in 3-7 days

0

57

Homelite 308047002

LOWER HANDLE ASSEMBLY

Note: (INC. KEY NO. 17)

$59.99

$

Usually ships in 3-7 days

0
