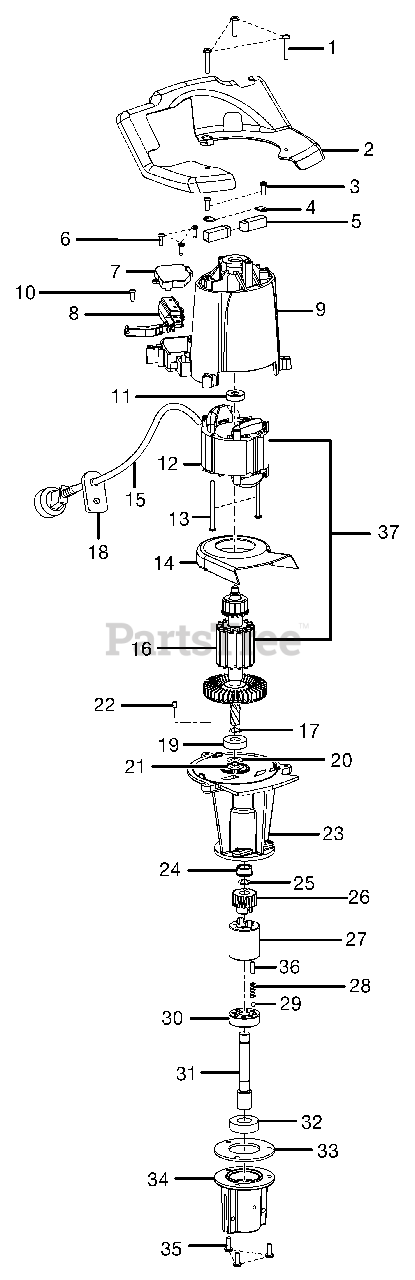

RY 46501 A - Ryobi Cultivator, Electric Motor / Gear Box Assembly Parts Diagram

Cultivator, Electric

Motor / Gear Box Assembly Parts Diagram

  • Title

1

Homelite 983660021

SCREW (M5 X 26 mm)

Note: Purchase Locally.

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 513361001

INNER HOUSING

$

$

Not available

3

Homelite 968702009

SCREW (8-16 x 5/8 in. PAN HD.)

Note: Purchase Locally

$1.06

$

Usually ships in 3-7 days

0

4

Homelite 630801001

BRUSH TUBE CLAMP

$4.49

$

Usually ships in 3-7 days

0

5

Homelite 968173001

BRUSH TUBE ASSEMBLY

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 660164001

SCREW (M3.5 X 16 mm)

Note: Purchase Locally.

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 513360001

SWITCH COVER

$

$

Not available

8

Homelite 760245004

SWITCH, ON-OFF ASSEMBLY

$39.99

$

Usually ships in 3-7 days

0

9

Homelite 513359001

MOTOR HOUSING

$21.99

$

Usually ships in 3-7 days

0

10

Homelite 983645005

SCREW (M4 x 18 mm PAN HD.)

$1.99

$

In Stock, only 4 left!

0

11

Homelite 990924001

BALL BEARING (NTN 608ZZ C3/1E)
(Superseded to 6814104)

$3.16

$

Usually ships in 3-7 days

0

12

Homelite 740763001

FIELD ASSEMBLY
(Superseded to 290147007)

$

$

Not available

13

Homelite 660101004

SCREW (8-10 X 2-1/2 in. PAN HD.)

Note: Purchase Locally

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 513363001

FAN SHROUD

$

$

Not available

15

Homelite 730377019

POWER CORD

$

$

Not available

16

Homelite 740764001

ARMATURE ASSEMBLY
(Superseded to 290147007)

$

$

Not available

17

Homelite 982897016

RETAINING RING

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 570569001

GROMMET

$

$

Not available

19

Homelite 680769003

BALL BEARING
(Superseded to T690395001)

$16.99

$

Usually ships in 3-7 days

0

20

Homelite 900721001

FELT SEAL

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 900098001

FIBRE WASHER RING

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 550339001

RUBBER PLUG

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 640958004

GEAR BOX

$40.99

$

In Stock, only 1 left!

0

24

Homelite 670058002

FLANGE BEARING

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 671829001

WASHER

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 610481001

GEAR

$25.99

$

Usually ships in 3-7 days

0

27

Homelite 671739001

CLUTCH

$55.99

$

Usually ships in 3-7 days

0

28

Homelite 671743001

SPRING

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 671400003

BALL (5.96 mm)

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 670514002

CLUTCH PLATE

$21.99

$

Usually ships in 3-7 days

0

31

Homelite 620403001

OUTPUT SHAFT

$

$

Not available

32

Homelite 680769004

BALL BEARING (6003)

$13.99

$

Usually ships in 3-7 days

0

33

Homelite 901110001

GASKET

$

$

Not available

34

Homelite 640958003

GEAR CASE

$

$

Not available

35

Homelite 983660009

SCREW (M5 x 14 mm)

Note: Purchase Locally.

$

$

Not available

36

Homelite 690009001

PLUG (6 mm x 17 mm)

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 290147007

MOTOR ASSEMBLY
(Superseded to 230128001)

Note: (INC. KEY NOS. 12 AND 16)

$

$

Not available

Homelite 983000658

OPERATOR'S MANUAL (960994001)

$

$

Not available

Homelite NLA

REPLACEMENT PARTS LIST

$

$

Currently unavailable

Homelite NLA

REPAIR SHEET (REV:06)

$

$

Currently unavailable
