RY 43200 - Ryobi 8" Pole Saw, Electric General Assembly Parts Diagram

8" Pole Saw, Electric

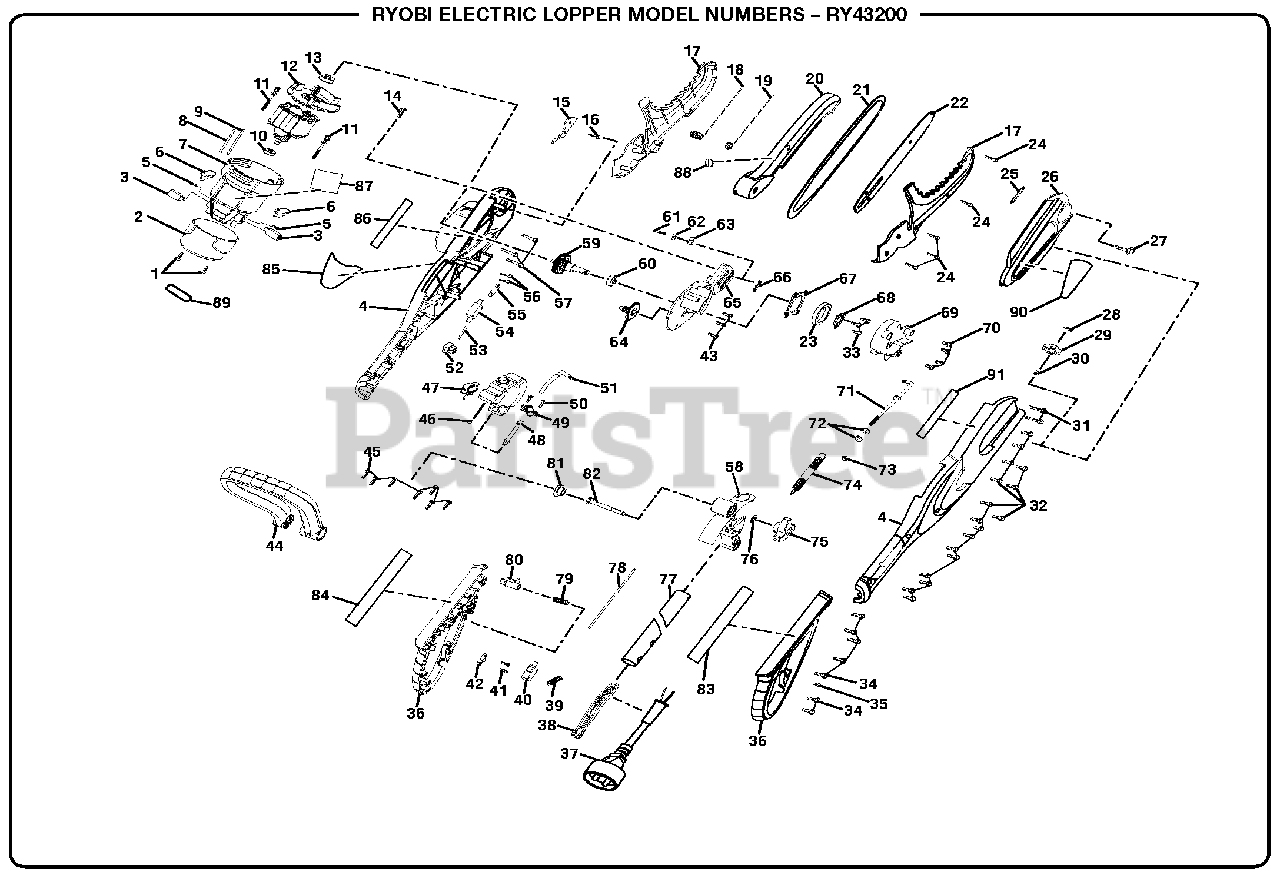

General Assembly Parts Diagram

  • Title

1

Homelite 993850001

Screw (M4 x 14 mm)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 993976001

End Cap (Motor Housing)

$

$

Not available

3

Homelite 993852001

Brush Assembly

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 993965001

Housing Assembly

$32.99

$

Usually ships in 3-7 days

0

5

Homelite 993854001

Screw (M3 x 8 mm)

$

$

Not available

6

Homelite 993855001

Wire Lead (1)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 993960001

Motor Housing Assembly

$5.49

$

Usually ships in 3-7 days

0

8

Homelite 993857001

Wire Lead (2)

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 993858001

Wire Lead (3)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 993860001

Ball Bearing (607z)

$15.99

$

Usually ships in 3-7 days

0

11

Homelite 993861001

Screw (M4 x 50 mm)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 993961001

Motor Assembly

Note: (Inc. Key Nos. 10-11 & 13)

$77.99

$

Usually ships in 3-7 days

0

13

Homelite 993864001

Ball Bearing (609z)

$

$

Not available

14

Homelite 993865001

Screw (M4 x 14 mm)

$

$

Not available

15

Homelite 993866001

Dust Cover

$

$

Not available

16

Homelite 993867001

Screw (M3 x 8 mm)

$

$

Not available

17

Homelite 993966001

Blade Clamp Assembly

$28.99

$

Usually ships in 3-7 days

0

18

Homelite 993869001

Compression Spring (1)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 993870001

Compression Spring (2)

$

$

Not available

20

Homelite 993969001

Upper Blade Guard Assembly

$21.99

$

Usually ships in 3-7 days

0

21

Homelite 993873001

Chain

$44.99

$

Usually ships in 3-7 days

0

22

Homelite 993975001

Bar w/Graphics

$52.99

$

Usually ships in 3-7 days

0

23

Homelite 993955001

Ball Bearing (6807z)

$

$

Not available

24

Homelite 993876001

Screw (M4 x 8 mm)

$

$

Not available

25

Homelite 993877001

Seal Ring

$

$

Not available

26

Homelite 993974001

Chain Cover Assembly

$6.99

$

Usually ships in 3-7 days

0

27

Homelite 993880001

Lock Screw (M8 x 40 mm)

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 993881001

Retaining Ring (E)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 993882001

Sprocket

$

$

Not available

30

Homelite 993883001

Compression Spring

$

$

Not available

31

Homelite 993884001

Screw (M4 x 30 mm)

$

$

Not available

32

Homelite 993885001

Screw (M4 x 14 mm)

$

$

Not available

33

Homelite 993956001

Screw (M4 x 14 mm)

$

$

Not available

34

Homelite 993887001

Screw (M4 x 14 mm)

$

$

Not available

35

Homelite 993888001

Screw (M4 x 12 mm)

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 993964001

Handle Assembly

$

$

Not available

37

Homelite 993963001

Power Cord Assembly

$

$

Not available

38

Homelite 993892001

Trigger

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 993893001

Compression Spring (Switch)

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 993894001

Micro Switch

$4.49

$

Usually ships in 3-7 days

0

41

Homelite 993895001

Screw (M4 x 12 mm)

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 993896001

Switch Clamp

$

$

Not available

43

Homelite 993953001

Screw

$

$

Not available

44

Homelite 993962001

Axillary Handle Assembly

Note: (Inc. Key No. 45)

$12.99

$

Usually ships in 3-7 days

0

45

Homelite 993900001

Screw (M4 x 14 mm)

$2.49

$

Usually ships in 3-7 days

0

46

Homelite 993973001

Oil Tank

$

$

Not available

47

Homelite 993902001

Oil Tank Cap

$2.49

$

Usually ships in 3-7 days

0

48

Homelite 993971001

Oil Inlet Tube Assembly

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 993978001

Oil Pump Assembly

$

$

Not available

50

Homelite 993944001

Screw (M4 x 14 mm)

$

$

Not available

51

Homelite 993972001

Oil Outlet Tube Assembly

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 993905001

Terminal Block

$

$

Not available

53

Homelite 993906001

Wire Lead (4)

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 993907001

Switch

$7.99

$

Usually ships in 3-7 days

0

55

Homelite 993908001

Switch Clamp

$

$

Not available

56

Homelite 993909001

Screw (M3 x 12 mm)

$

$

Not available

57

Homelite 993910001

Screw (M4 x 30 mm)

$

$

Not available

58

Homelite 993957001

Drive Shaft

$5.49

$

Usually ships in 3-7 days

0

59

Homelite 993968001

Output Shaft Assembly w/Bearing

$28.99

$

Usually ships in 3-7 days

0

60

Homelite 993916001

Ball Bearing (626z)

$4.49

$

Usually ships in 3-7 days

0

61

Homelite 993917001

Adjustment Bolt (M8)

$2.49

$

Usually ships in 3-7 days

0

62

Homelite 993918001

Washer (M8)

$2.49

$

Usually ships in 3-7 days

0

63

Homelite 993919001

Tensioning Nut

$

$

Not available

64

Homelite 993949001

Worm Spindle Assembly

$4.49

$

Usually ships in 3-7 days

0

65

Homelite 993967001

Chain Bar Holder Assembly

$7.49

$

Usually ships in 3-7 days

0

66

Homelite 993922001

Oil Seal

$

$

Not available

67

Homelite 993923001

Bearing Bracket

$

$

Not available

68

Homelite 993924001

Bearing Seat

$

$

Not available

69

Homelite 993925001

Blade Guard Holder

$3.99

$

Usually ships in 3-7 days

0

70

Homelite 993926001

Screw (M4 x 10 mm)

$2.49

$

Usually ships in 3-7 days

0

71

Homelite 993927001

Tensioning Shaft

$2.99

$

Usually ships in 3-7 days

0

72

Homelite 993928001

Washer (M6)

$2.49

$

Usually ships in 3-7 days

0

73

Homelite 993929001

Lock Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

74

Homelite 993930001

Tension Spring

$2.49

$

Usually ships in 3-7 days

0

75

Homelite 993970001

Front Handle Knob Assembly

$2.49

$

Usually ships in 3-7 days

0

76

Homelite 993933001

Washer (M8)

$2.49

$

Usually ships in 3-7 days

0

77

Homelite 993934001

Connecting Tube

$3.99

$

Usually ships in 3-7 days

0

78

Homelite 993935001

Wire Lead (5)

$

$

Not available

79

Homelite 993936001

Compression Spring

$

$

Not available

80

Homelite 993937001

Lock-Out Button

$

$

Not available

81

Homelite 993959001

Bolt Cover Front Handle

$2.49

$

Usually ships in 3-7 days

0

82

Homelite 993958001

Hex Screw (M8 x 75 mm)

$2.49

$

Usually ships in 3-7 days

0

83

Homelite 940657137

Icon Label

$

$

Not available

84

Homelite 941653001

Warning Label (SP)

$

$

Not available

85

Homelite 941860001

Ryobi Logo (Left)

$

$

Not available

86

Homelite 940749021

Warning Label (EN/FR)

$

$

Not available

87

Homelite 940678348

Data Label

$1.99

$

Usually ships in 3-7 days

0

88

Homelite 941856001

No Hands Label

$

$

Not available

89

Homelite 940705213

Ryobi Logo (Small)

$

$

Not available

90

Homelite 940705214

Ryobi Logo (Right)

$

$

Not available

91

Homelite 941859001

Warning Label (EN/FR)

$2.99

$

Usually ships in 3-7 days

0

Homelite 990000728

Operator's Manual

$

$

Not available
