RY 43154 (099748001) - Ryobi 16" Chainsaw, Electric, Rev 02 (2017-12) Figure A Parts Diagram

16" Chainsaw, Electric, Rev 02

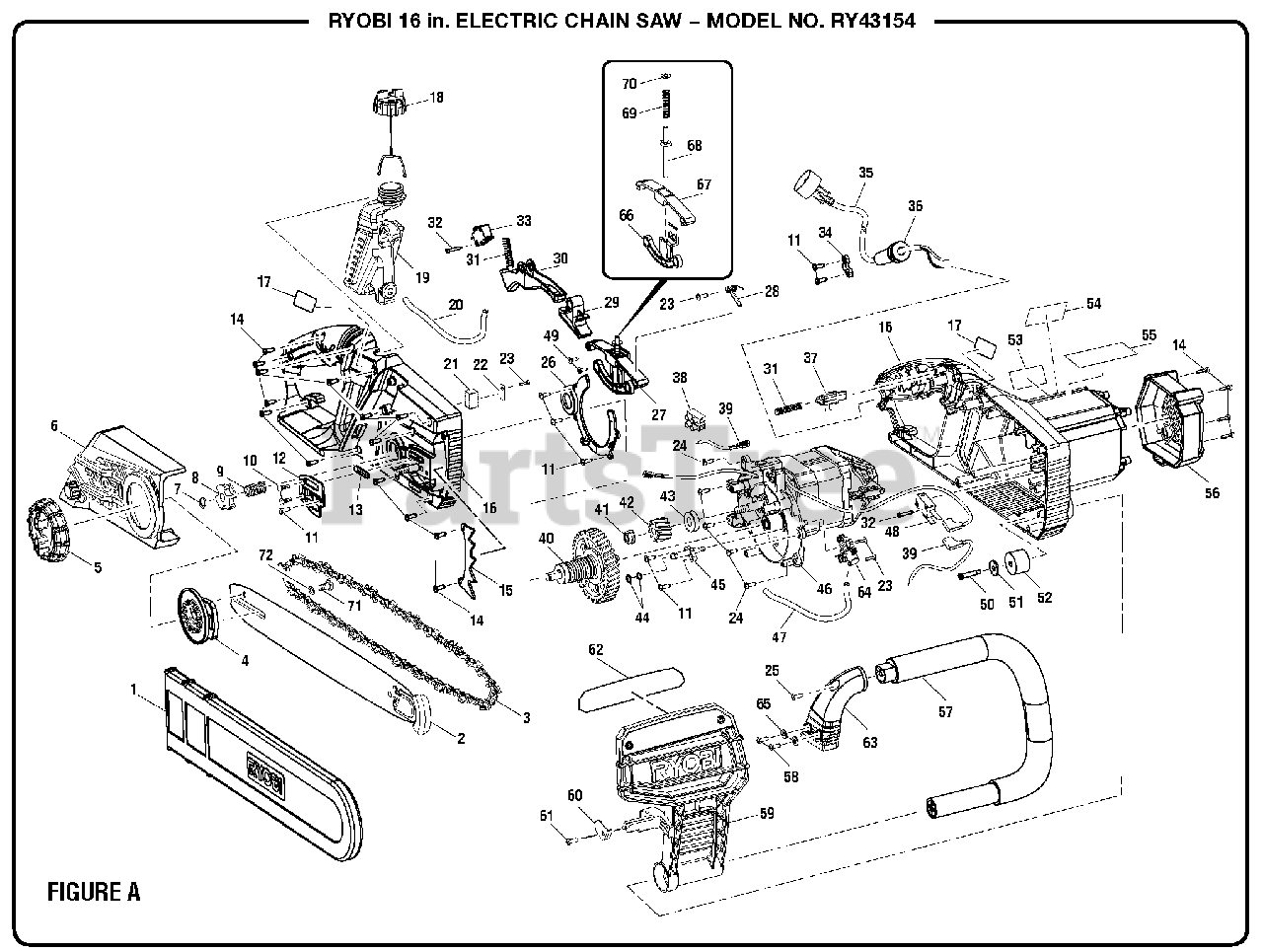

Figure A Parts Diagram

  • Title

1

Homelite 099748001001

Scabbard

$9.99

$

Usually ships in 3-7 days

0

2

Homelite 099748001002

Guide Bar

$58.99

$

Usually ships in 3-7 days

0

3

Homelite 099748001003

Chain (16 in.)

$62.99

$

In Stock, only 2 left!

0

4

Homelite 099748001004

Chain Tensioner Assembly

Note: (Inc. Key Nos. 71-72)

$14.99

$

Usually ships in 3-7 days

0

5

Homelite 099748001005

Chain Adjusting Knob Assembly

$9.49

$

Usually ships in 3-7 days

0

6

Homelite 099748001006

Bar Cover Assembly

Note: (Inc. Key No. 5)

$

$

Not available

7

Homelite 099748001007

E-Ring

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 099748001008

Chain Sprocket

$3.49

$

Usually ships in 3-7 days

0

9

Homelite 099748001009

Spring

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 099748001010

Screw

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 099748001011

Screw

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 099748001012

Guide Plate

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 099748001013

Seal Ring

$

$

Not available

14

Homelite 099748001014

Screw

$

$

Not available

15

Homelite 099748001015

Spike Bar

$

$

Not available

16

Homelite 099748001016

Housing Assembly

Note: (Inc. Key Nos. 17 and 53-55)

$

$

Not available

17

Homelite 940705360

Side Logo Label

$

$

Not available

18

Homelite 099748001017

Oil Tank Cap Assembly

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 099748001018

Oil Tank Assembly

$7.99

$

Usually ships in 3-7 days

0

20

Homelite 099748001019

Oil Tube

$3.49

$

Usually ships in 3-7 days

0

21

Homelite 099748001020

Filter

$

$

Not available

22

Homelite 099748001021

Clamp

$

$

Not available

23

Homelite 099748001022

Screw

$2.99

$

Usually ships in 3-7 days

0

24

Homelite 099748001069

Screw

$

$

Not available

25

Homelite 099748001070

Screw

$

$

Not available

26

Homelite 099748001025

Dust Shield

$

$

Not available

27

Homelite 099748001026

Brake Assembly

Note: (Inc. Key Nos. 66-70)

$13.99

$

Usually ships in 3-7 days

0

28

Homelite 099748001027

Brake Spring

$

$

Not available

29

Homelite 099748001028

Intermediate Connecting Rod

$2.99

$

Usually ships in 3-7 days

0

30

Homelite 099748001029

Trigger

$3.49

$

Usually ships in 3-7 days

0

31

Homelite 099748001030

Spring

$

$

Not available

32

Homelite 099748001031

Screw

$

$

Not available

33

Homelite 099748001032

Switch

$12.99

$

Usually ships in 3-7 days

0

34

Homelite 099748001033

Cord Clamp

$

$

Not available

35

Homelite 099748001034

Power Cord

$9.49

$

Usually ships in 3-7 days

0

36

Homelite 099748001035

Cord Sheath

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 099748001036

Lock-Off Button

$

$

Not available

38

Homelite 099748001037

Terminal Connector

$

$

Not available

39

Homelite 099748001038

Stator Wire

$

$

Not available

40

Homelite 099748001039

Output Shaft Gear Assembly

$

$

Not available

41

Homelite 099748001040

Flange Nut

$

$

Not available

42

Homelite 099748001041

Motor Gear

$

$

Not available

43

Homelite 099748001042

Motor Gear Bushing

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 099748001043

O-Rings

$

$

Not available

45

Homelite 099748001044

Nozzle Assembly

$

$

Not available

46

Homelite 099748001045

Motor Assembly

$

$

Not available

47

Homelite 099748001046

Oil Tube With Spring

$4.99

$

Usually ships in 3-7 days

0

48

Homelite 099748001047

Control Switch

$

$

Not available

49

Homelite 099748001048

Screw

$

$

Not available

50

Homelite 099748001049

Screw

$

$

Not available

51

Homelite 099748001050

Washer

$

$

Not available

52

Homelite 099748001051

Sleeve

$

$

Not available

53

Homelite 940851188

Danger/Warning Label

$

$

Not available

54

Homelite 940851189

Warning/Data Label

$

$

Not available

55

Homelite 940657233

Icon/Danger Label

$

$

Not available

56

Homelite 099748001052

Motor Cover

$

$

Not available

57

Homelite 099748001053

Front Handle

$

$

Not available

58

Homelite 099748001054

Screw

$

$

Not available

59

Homelite 099748001055

Front Handle Guard

Note: (Inc. Key No. 62)

$

$

Not available

60

Homelite 099748001056

Handle Guard Plate

$

$

Not available

61

Homelite 099748001057

Screw

$

$

Not available

62

Homelite 940851191

Chain Brake Label

$

$

Not available

63

Homelite 099748001058

Front Handle-Right

$

$

Not available

64

Homelite 099748001059

Oil Pump Assembly

$7.99

$

Usually ships in 3-7 days

0

65

Homelite 099748001060

Washer

$

$

Not available

66

Homelite 099748001061

Brake Bar Plate

$

$

Not available

67

Homelite 099748001062

Link Switch

$3.99

$

Usually ships in 3-7 days

0

68

Homelite 099748001063

Brake Bar

$5.49

$

Usually ships in 3-7 days

0

69

Homelite 099748001064

Brake Lever Spring

$2.99

$

Usually ships in 3-7 days

0

70

Homelite 099748001065

Washer

$2.49

$

Usually ships in 3-7 days

0

71

Homelite 099748001066

Tension Screw

$2.99

$

Usually ships in 3-7 days

0

72

Homelite 099748001067

Seal Ring

$

$

Not available

Homelite 991000895

Operator's Manual

Note: Not Shown

$

$

Not available
