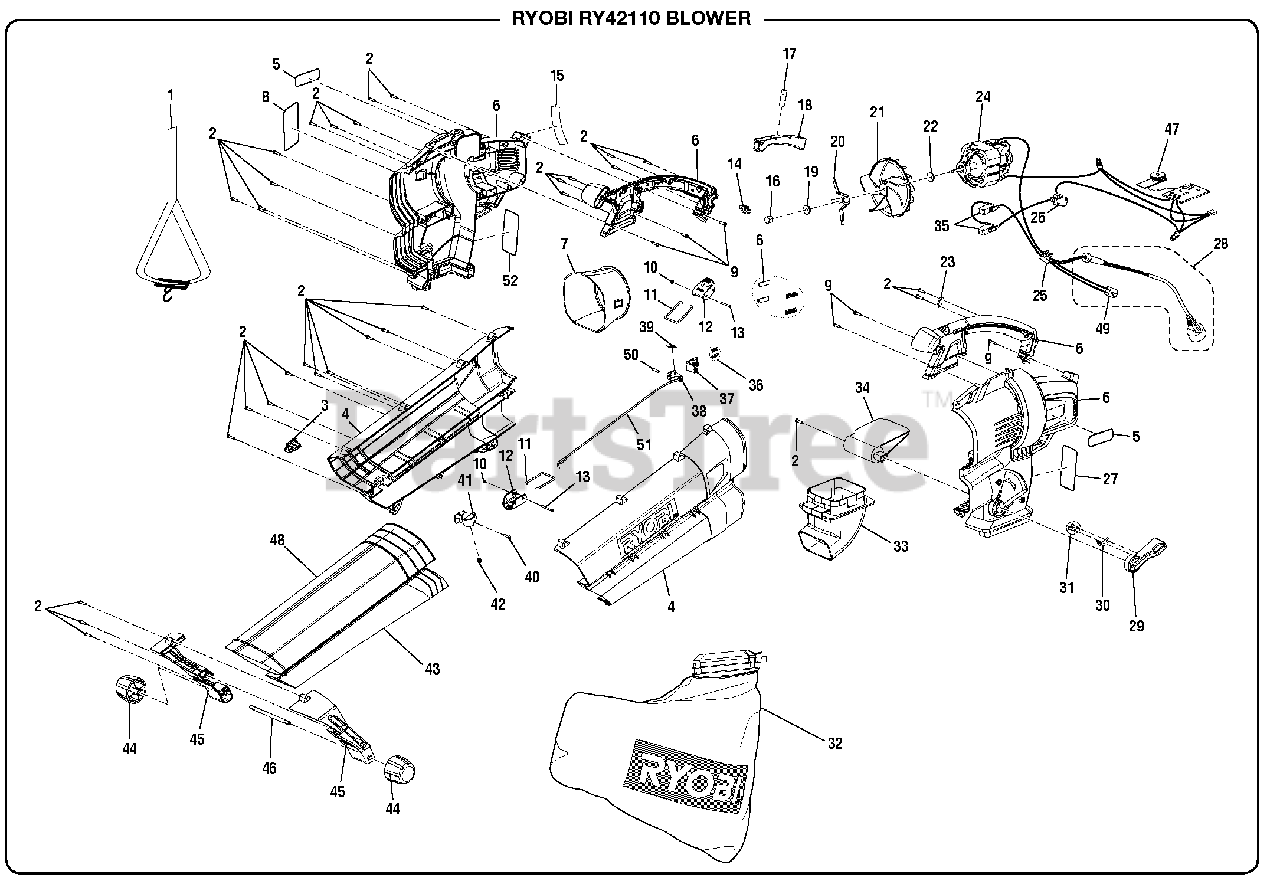

RY 42110 - Ryobi Blower General Assembly Parts Diagram

Blower

General Assembly Parts Diagram

  • Title

1

Homelite 37902144G

Shoulder Strap

$

$

Not available

2

Homelite 3220505G

Screw (M4 x 16 mm)

$

$

Not available

3

Homelite 34120144G

Cap

$

$

Not available

4

Homelite 34112144G

Upper Tube Assembly

$

$

Not available

5

Homelite 940114154

Logo Label

$

$

Currently unavailable

6

Homelite 31108144G

Housing Assembly

$

$

Not available

7

Homelite 34104144G

Inner Tube

$

$

Not available

8

Homelite 99926001903

Impeller Warning Label

$

$

Currently unavailable

9

Homelite 32202144G

Screw (M4 x 12 mm)

$

$

Not available

10

Homelite 3221305G

Hex Nut (M3)

$

$

Not available

11

Homelite 33402144G

Latch

$

$

Not available

12

Homelite 34107144G

Clip

$

$

Not available

13

Homelite 32201144G

Bolt (M3 x 30 mm)

$

$

Not available

14

Homelite 34108144G

Indicator Cover

$

$

Not available

15

Homelite 99926001902

Icon Label

$

$

Currently unavailable

16

Homelite 34118144G

Hex Nut (M10)

$

$

Not available

17

Homelite 33403144G

Compression Spring

$

$

Not available

18

Homelite 34109144G

Switch Trigger

$

$

Not available

19

Homelite 34119144G

Washer

$

$

Not available

20

Homelite 33204144G

Mulching Blade

$2.99

$

In Stock, only 2 left!

0

21

Homelite 34117144G

Impeller

$1.49

$

In Stock, only 1 left!

0

22

Homelite 33211144G

Bushing

$7.49

$

In Stock, only 2 left!

0

23

Homelite 3410302G

Cord Clamp

$

$

Not available

24

Homelite 36100149G

Motor Assembly

$

$

Not available

25

Homelite 36404167G

Terminal Block

$

$

Not available

26

Homelite 36301329G

Switch

$

$

Not available

27

Homelite 99926001901

Warning Label

$

$

Currently unavailable

28

Homelite 31107144G

Cord Assembly

$

$

Not available

29

Homelite 34130144G

Quick Change Lever

$

$

Not available

30

Homelite 33205144G

Bracket

$

$

Not available

31

Homelite 3221099G

Screw (M4 x 5 mm)

$

$

Not available

32

Homelite 31102144G

Leaf Bag Assembly

$

$

Not available

33

Homelite 34124144G

Discharge Outlet Elbow

$

$

Not available

34

Homelite 34111144G

Air Deflector

$

$

Not available

35

Homelite 36302144G

Micro Switch

$

$

Not available

36

Homelite 33404144G

Block Spring

$

$

Not available

37

Homelite 34105144G

Slide Block

$

$

Not available

38

Homelite 34106144G

Cam Wheel

$

$

Not available

39

Homelite 33405144G

Torsion Spring

$

$

Not available

40

Homelite 3220239G

Screw (M3 x 12 mm)

$

$

Not available

41

Homelite 34121144G

Lock Block

$

$

Not available

42

Homelite 33401144G

Compression Spring

$

$

Not available

43

Homelite 34114144G

Blower Tube

$

$

Not available

44

Homelite 34116144G

Guide Wheel

$

$

Not available

45

Homelite 34115144G

Front Bracket

$

$

Not available

46

Homelite 33203144G

Wheel Axle

$

$

Not available

47

Homelite 36201149G

Circuit Board Assembly

$

$

Not available

48

Homelite 34113144G

Vac Tube

$

$

Not available

49

Homelite 36202144G

Live Tool Indicator

$

$

Not available

50

Homelite 32203144G

Screw (M3 x 12 mm)

$

$

Not available

51

Homelite 33908144G

Steel Wire

$

$

Not available

52

Homelite 99926001900

Data Label

$

$

Currently unavailable

Homelite 988000162

Operator's Manual

Note: (Not Shown)

$

$

Not available
