RY 42102 (090264001) - Ryobi 40V Blower, Electric, Rev 09 (2018-08) General Assembly Parts Diagram

40V Blower, Electric, Rev 09

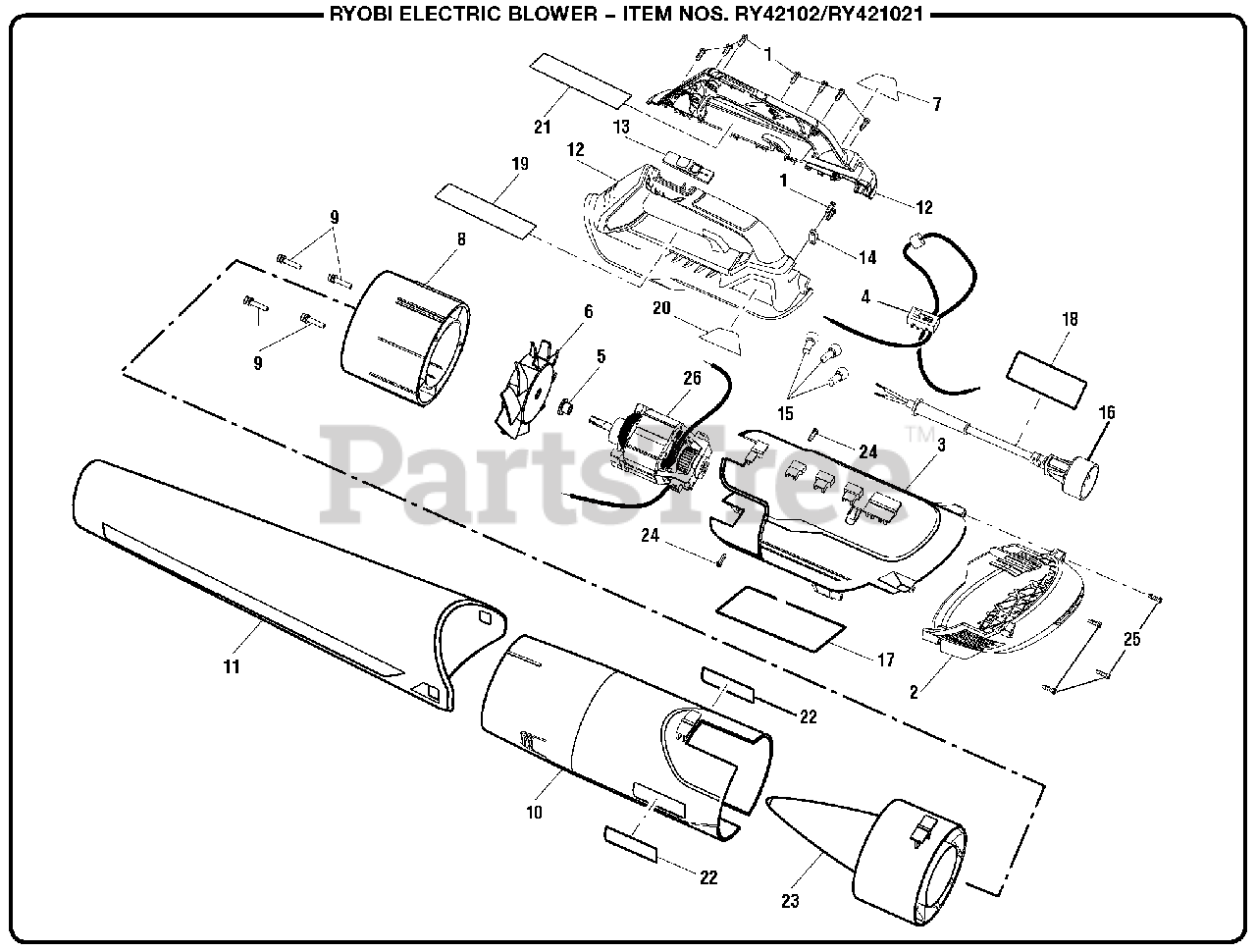

General Assembly Parts Diagram

  • Title

1

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 529412002

Inlet Guard

$9.99

$

Usually ships in 3-7 days

0

3

Homelite 311796001

Housing Assembly
(Superseded to 205207001)

Note: (Incl. Key No. 17)

$26.99

$

Usually ships in 3-7 days

0

4

Homelite 760565001

Switch and Fuse Assembly

$15.99

$

Usually ships in 3-7 days

0

5

Homelite 695040001

Bushing

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 529410003

Fan w/Insert Nut

$7.49

$

In Stock, Qty 5

0

7

Homelite 940851148

8 Amp Label (Right)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 312259001

Motor Housing Assembly
(Superseded to 529411001)

$

$

Not available

9

Homelite 662167001

Screw w/Washers (M5 x 25 mm, T25 Torx Cap Hd.)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 311793001

Outlet Housing Assembly

Note: (Incl. Key No. 22)

$30.99

$

Usually ships in 3-7 days

0

11

Homelite 529406001

Blower Tube

$12.99

$

In Stock, Qty 5

0

12

Homelite 311794001

Handle Assembly

Note: (Incl. Key Nos. 7 and 19-21)

$23.99

$

Usually ships in 3-7 days

0

13

Homelite 529413001

Switch Trigger

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 523001003

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 790009004

Wire Connector

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 311797001

Power Cord Assembly

$9.49

$

Usually ships in 3-7 days

0

17

Homelite 941588099

Data Label (RY42102)
(Superseded to 941588330)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 940851081

Warning Label (Fr/Sp)

$

$

Not available

19

Homelite 940851147

Icon Warning Label

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 940851083

8 Amp Label (Left)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 940851082

Warning Label

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 940705300

Logo Label

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 529408002

Tail Cone

$12.99

$

Usually ships in 3-7 days

0

24

Homelite T662028001

Screw (M4 x 16 mm, T15 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 660024021

Screw (M4 x 20 mm, T20 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 742196002

Motor Assembly

$

$

Not available

Homelite 991000493

Operator's Manual

Note: NOT SHOWN

$

$

Currently unavailable
