RY 42 WB (090248005) - Ryobi Wheeled Blower, Rev 01 (2020-01) FIGURE C Parts Diagram

Wheeled Blower, Rev 01

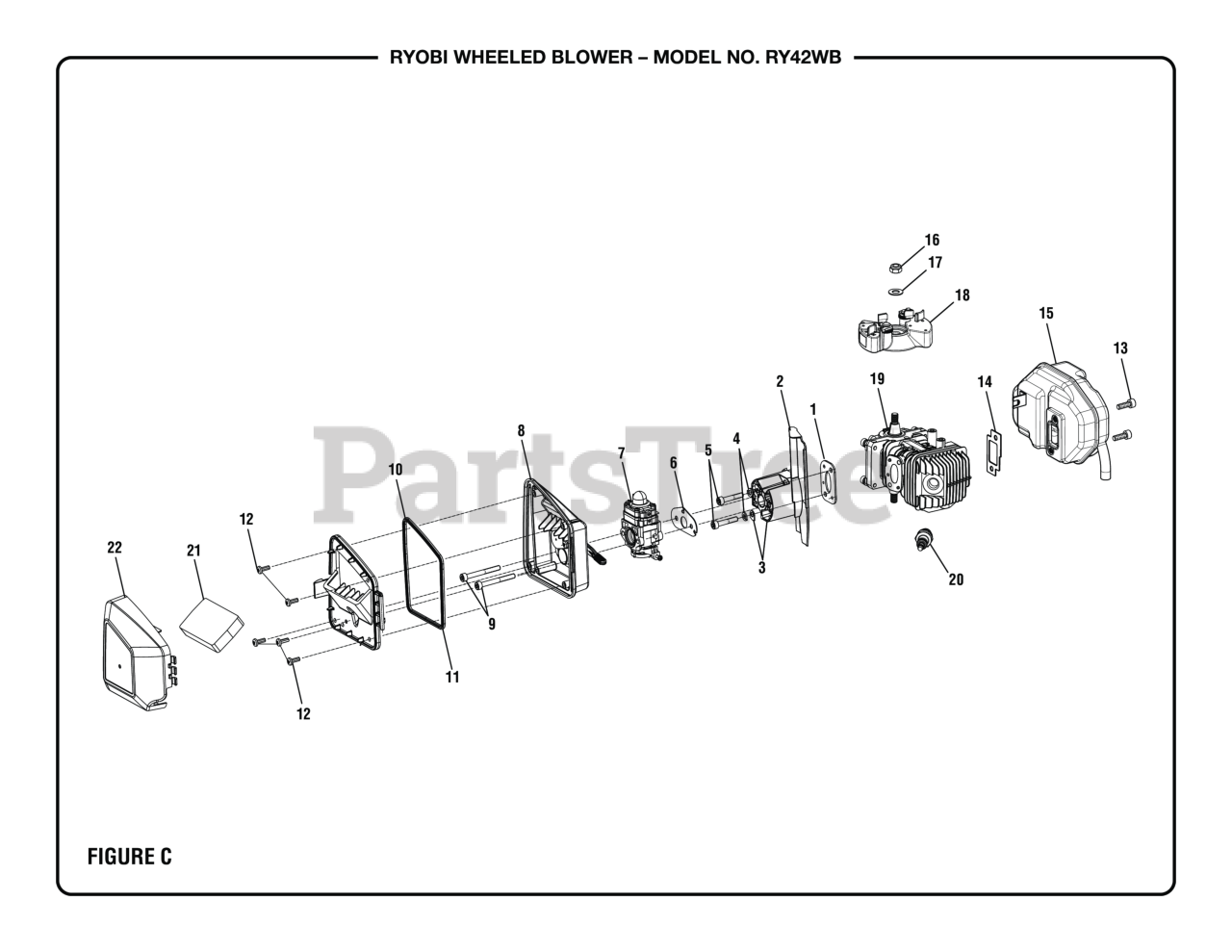

FIGURE C Parts Diagram

  • Title

1

Homelite 562927010

Heat Dam Gasket

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 524583005

Heat Dam

$

$

Not available

3

Homelite 638980003

Washer (Heat Dam)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 678343002

Spring Washer (M5)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 661832001

Screw (M5 x 0.8 in.)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 900711015

Gasket Carb-Heat Dam

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 308054202

Carburetor (Walbro, WYJ-536)

$

$

Not available

8

Homelite 310821005

Air Box Base

$

$

Currently unavailable

9

Homelite 660347003

Cap Screw (M5 x 45 mm, T25 Torx Soc. Hd.)

$1.99

$

In Stock, Qty 5

0

10

Homelite 570107005

Airbox Gasket

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 525019002

Midplate

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 660345001

Screw (M4 x 12 mm, Slotted Recessed Pan Hd.)
(Superseded to 983645005)

$1.99

$

In Stock, only 4 left!

0

13

Homelite 660612001

Screw (1/4-20 x 5/8 in.)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 901653007

Gasket

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 309330004

Exhaust Assembly

$146.99

$

In Stock, only 1 left!

0

16

Homelite 678067001

Lock Nut (M8)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 631049001

Washer (ID9 x OD17.7 x 1.1t)
(Superseded to PS84065)

$

$

Not available

18

Homelite 309013004

Flywheel Assembly

$

$

Not available

19

Homelite 309842001

Short Block Assembly

$

$

Not available

20

Homelite 870170001

SPARK PLUG (CHAMPION RCJ4)

$10.99

$

Usually ships in 3-7 days

0

21

Homelite 901652001

Air Filter

$

$

Not available

22

Homelite 523924005

Air Box Cover

$1.99

$

In Stock, Qty 8

0
