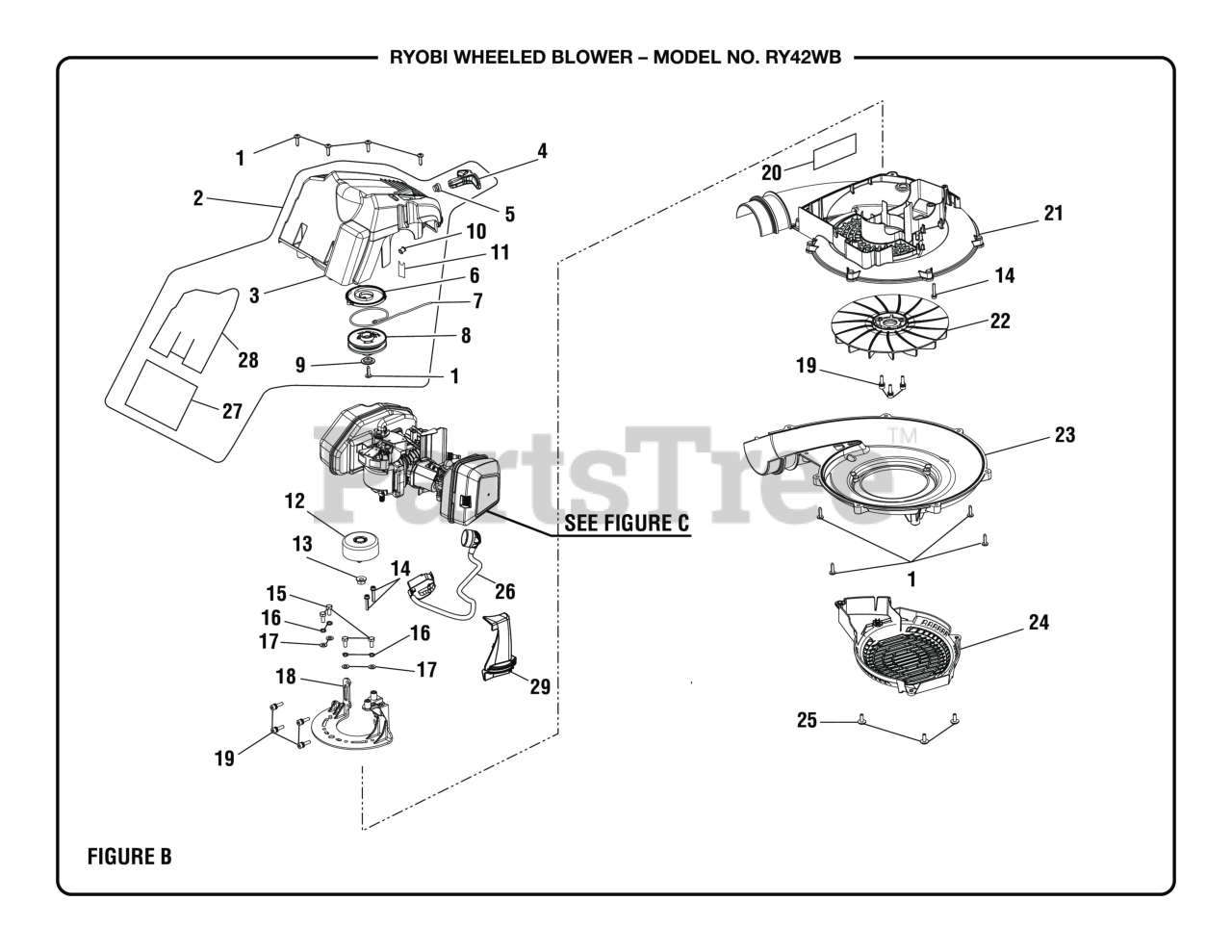

RY 42 WB (090248005) - Ryobi Wheeled Blower, Rev 01 (2020-01) FIGURE B Parts Diagram

Wheeled Blower, Rev 01

FIGURE B Parts Diagram

  • Title

1

Homelite 660629005

Screw (10-14 x 19 mm, T25 Torx Truss Pan Hd. T.F.)

$1.99

$

In Stock, only 1 left!

0

2

Homelite 308563027

Engine Cover w/Starter Assembly

$27.99

$

Usually ships in 3-7 days

0

3

Homelite 524587004

Motor Cover

$

$

Not available

4

Homelite 511731004

Starter Grip

$1.49

$

In Stock, Qty 6

0

5

Homelite 638088002

Eyelet

$1.99

$

In Stock, only 4 left!

0

6

Homelite 638033001

Spring & Container Assembly

$5.49

$

In Stock, only 4 left!

0

7

Homelite 900849002

STARTER ROPE 42 (PKG)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 521519001

Starter Pulley

$

$

Not available

9

Homelite 638980001

Starter Cap

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 638088004

Eyelet

$1.99

$

In Stock, only 3 left!

0

11

Homelite 522600003

Eyelet Support

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 679052003

Fan Disk

$22.99

$

Usually ships in 3-7 days

0

13

Homelite 678018001

Lock Nut (M8 x 1.25 in., Left Hand Threads)
(Superseded to 04277)

$

$

Not available

14

Homelite 660613001

Screw w/Washer (M5 x 25.4 mm, T25 Pan Hd. T.F.)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 661431003

Screw (M6 x 14 mm, Hex Soc. Hd.)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 693001001

Spring Washer (ID6.4 x 1.6t)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 693002001

Washer (OD12.9 x ID6.6 x 1.2t)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 634062001

Engine Mount

$

$

Not available

19

Homelite 660344007

Screw w/Washers (M5 x 20 mm, Hex Soc. Hd.)

$1.99

$

In Stock, Qty 5

0

20

Homelite 700150003

Heat Shield Tape

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 523921003

Inner Volute

$

$

Not available

22

Homelite 518265004

Fan

$21.99

$

Usually ships in 3-7 days

0

23

Homelite 524586003

Outer Volute

$

$

Not available

24

Homelite 531133001

Intake Cover

$

$

Not available

25

Homelite 660629002

Screw (#10-14 x 3/4 in, T25 Torx Pan Hd. T.F.)

$1.99

$

In Stock, only 4 left!

0

26

Homelite 291424009

Ignition Module

$49.99

$

Usually ships in 3-7 days

0

27

Homelite 650023006

Foil Tape

$

$

Not available

28

Homelite 902735001

Insulation

$

$

Not available

29

Homelite 679462002

Cable Guide/Baffle Plate

$2.49

$

Usually ships in 3-7 days

0
