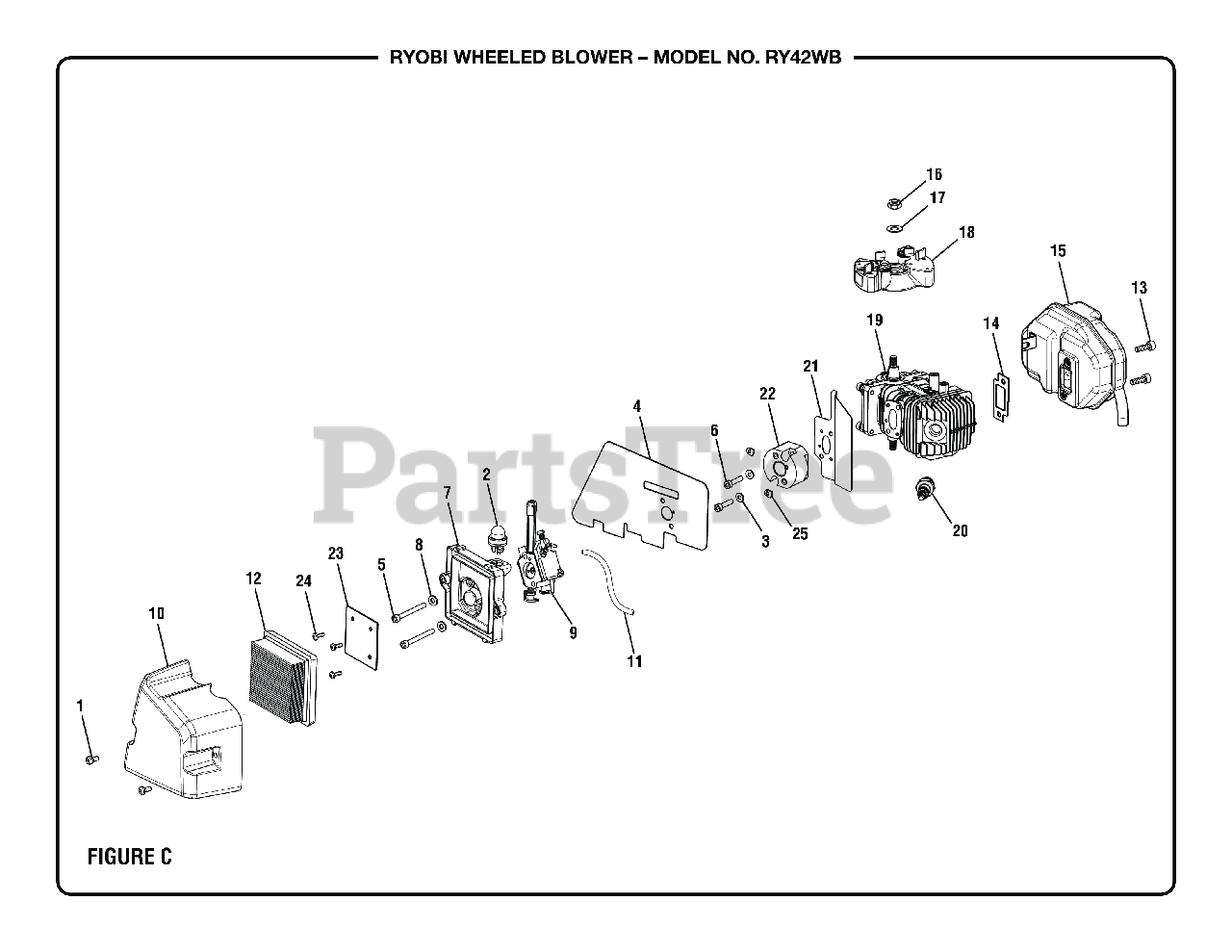

RY 42 WB (090248003) - Ryobi Wheeled Blower, Rev 01 (2019-03) FIGURE C Parts Diagram

Wheeled Blower, Rev 01

FIGURE C Parts Diagram

  • Title

1

Homelite 660510009

Screw (M5, Special)

$1.99

$

In Stock, Qty 5

0

2

Homelite 300780002

Primer Bulb Assembly
(Superseded to 01183)

$

$

Not available

3

Homelite 678343002

Spring Washer (M5)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 562927009

Gasket

$

$

Not available

5

Homelite 660347001

Screw (M5 x 50 mm, Torx Slotted Recessed Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

6

Homelite 661832001

Screw (M5 x 0.8 in.)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 523923001

Air Box Base
(Superseded to 533688001)

$

$

Not available

8

Homelite 671080001

Washer (ID5.8 x OD11.5 x 1.7t)

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 308054132

Carburetor

$

$

Currently unavailable

10

Homelite 523924001

Air Box Cover
(Superseded to 533688001)

$

$

Not available

11

Homelite 570373049

Fuel Line

$1.49

$

In Stock, only 2 left!

0

12

Homelite 900777005

Air Filter

$12.99

$

Usually ships in 3-7 days

0

13

Homelite 660612001

Screw (1/4-20 x 5/8 in.)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 901653007

Gasket

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 309330004

Exhaust Assembly

$146.99

$

In Stock, only 1 left!

0

16

Homelite 678067001

Lock Nut (M8)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 631049001

Washer (ID9 x OD17.7 x 1.1t)
(Superseded to PS84065)

$

$

Not available

18

Homelite 309013004

Flywheel Assembly

$

$

Not available

19

Homelite 309842001

Short Block Assembly

$

$

Not available

20

Homelite 870170001

SPARK PLUG (CHAMPION RCJ4)

$10.99

$

Usually ships in 3-7 days

0

21

Homelite 562927003

Gasket

$3.99

$

In Stock, Qty 10

0

22

Homelite 524583003

Heat Dam

$13.99

$

In Stock, only 2 left!

0

23

Homelite 638091011

Spacer

$1.49

$

In Stock, Qty 9

0

24

Homelite 660345001

Screw (M4 x 12 mm, Slotted Recessed Pan Hd.)
(Superseded to 983645005)

$1.99

$

In Stock, only 4 left!

0

25

Homelite 638980003

Washer (Heat Dam)

$1.99

$

Usually ships in 3-7 days

0
