RY 42 WB (090248001) - Ryobi Wheeled Blower Figure C Parts Diagram

Wheeled Blower

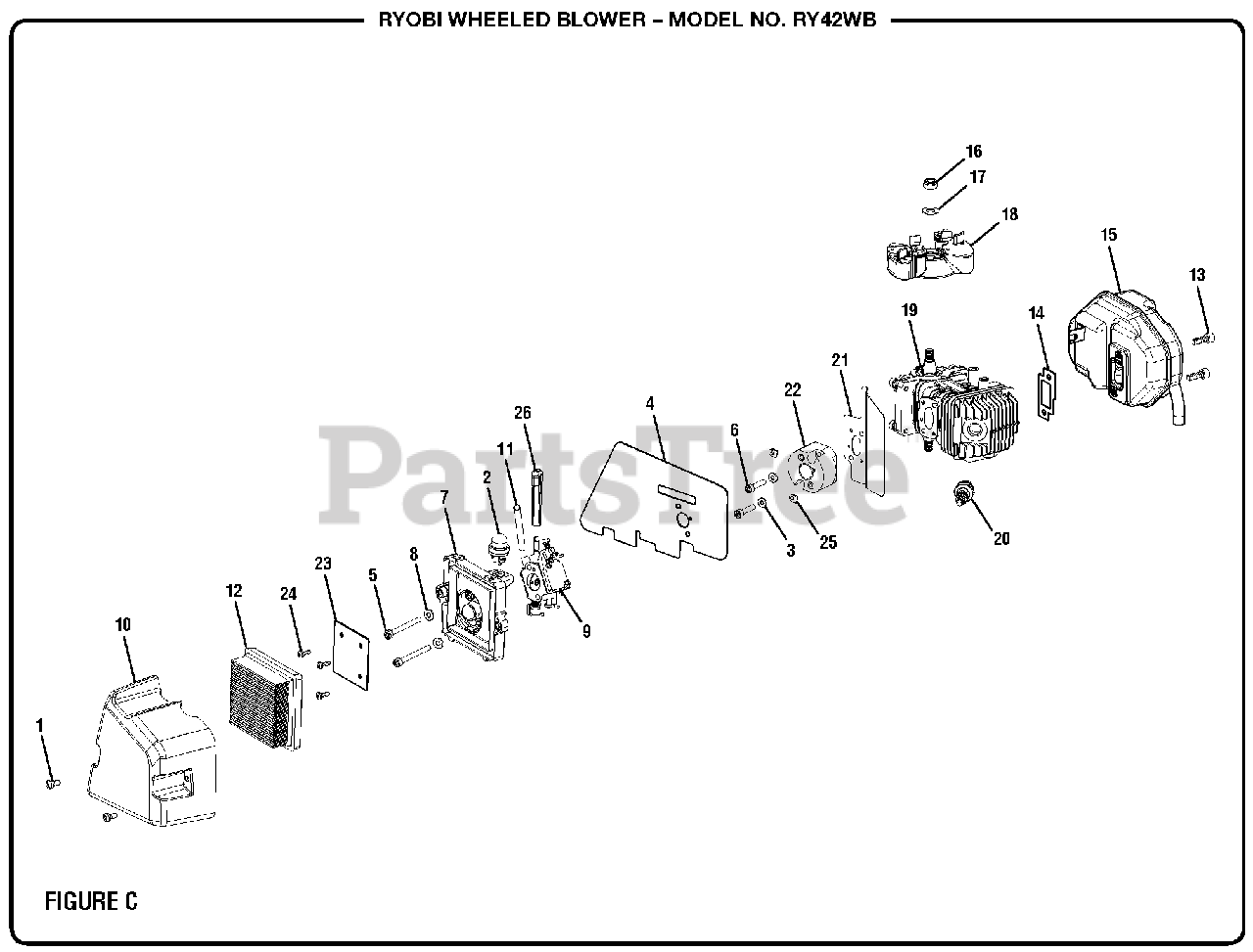

Figure C Parts Diagram

  • Title
1

Homelite 660651009

Screw
(Superseded to 660510009)

$1.99

$

In Stock, Qty 5

0

2

Homelite 300780002

Primer Assembly
(Superseded to 01183)

$

$

Not available

3

Homelite 678343002

Spring Washer (M5)

$1.99

$

Usually ships in 3-7 days

0

$

$

Not available

5

Homelite 660347001

Screw (M5 x 50 mm, Soc. Hd.)

$1.99

$

In Stock, only 1 left!

0

6

Homelite 661832001

Screw (M5 x 0.8 in.)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 523923001

Air Box Base
(Superseded to 533688001)

$

$

Not available

8

Homelite 671080001

Washer (ID5.8 x OD11.5 x 1.7t)

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 308054093

Carburetor

Note: (Inc. Key No. 26)

$

$

Not available

10

Homelite 523924001

Air Box Cover
(Superseded to 533688001)

$

$

Not available

11

Homelite 570373049

Fuel Line

$1.49

$

In Stock, only 2 left!

0

12

Homelite 900777005

Air Filter

$12.99

$

Usually ships in 3-7 days

0

13

Homelite 660612001

Bolt (1/4-20 x 18 mm)

$1.99

$

Usually ships in 3-7 days

0

14

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 309330004

Exhaust Assembly

$146.99

$

In Stock, only 1 left!

0

16

Homelite 678067001

Lock Nut (M8)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 631049001

Washer (ID9 x OD17.7 x 1.1t)
(Superseded to PS84065)

$

$

Not available

18

Homelite 309013004

Flywheel Assembly

$

$

Not available

19

Homelite 309842001

Short Block Assembly

$

$

Not available

20

Homelite 870170001

Spark Plug (RCJ4)

$10.99

$

Usually ships in 3-7 days

0

21

$3.99

$

In Stock, Qty 10

0

22

Homelite 524583001

Heat Dam
(Superseded to 524583003)

$13.99

$

In Stock, only 2 left!

0

23

$1.49

$

In Stock, Qty 9

0

24

Homelite 660345001

Screw (M4 x 12 mm, Pan Hd.)
(Superseded to 983645005)

$1.99

$

In Stock, only 4 left!

0

25

Homelite 638980003

Washer (Heat Dam)

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 524556007

Choke Lever

$

$

Currently unavailable
