RY 42 BPEMC (090156012) - Ryobi Backpack Blower, Rev 01 (2017-05) Figure A Parts Diagram

Backpack Blower, Rev 01

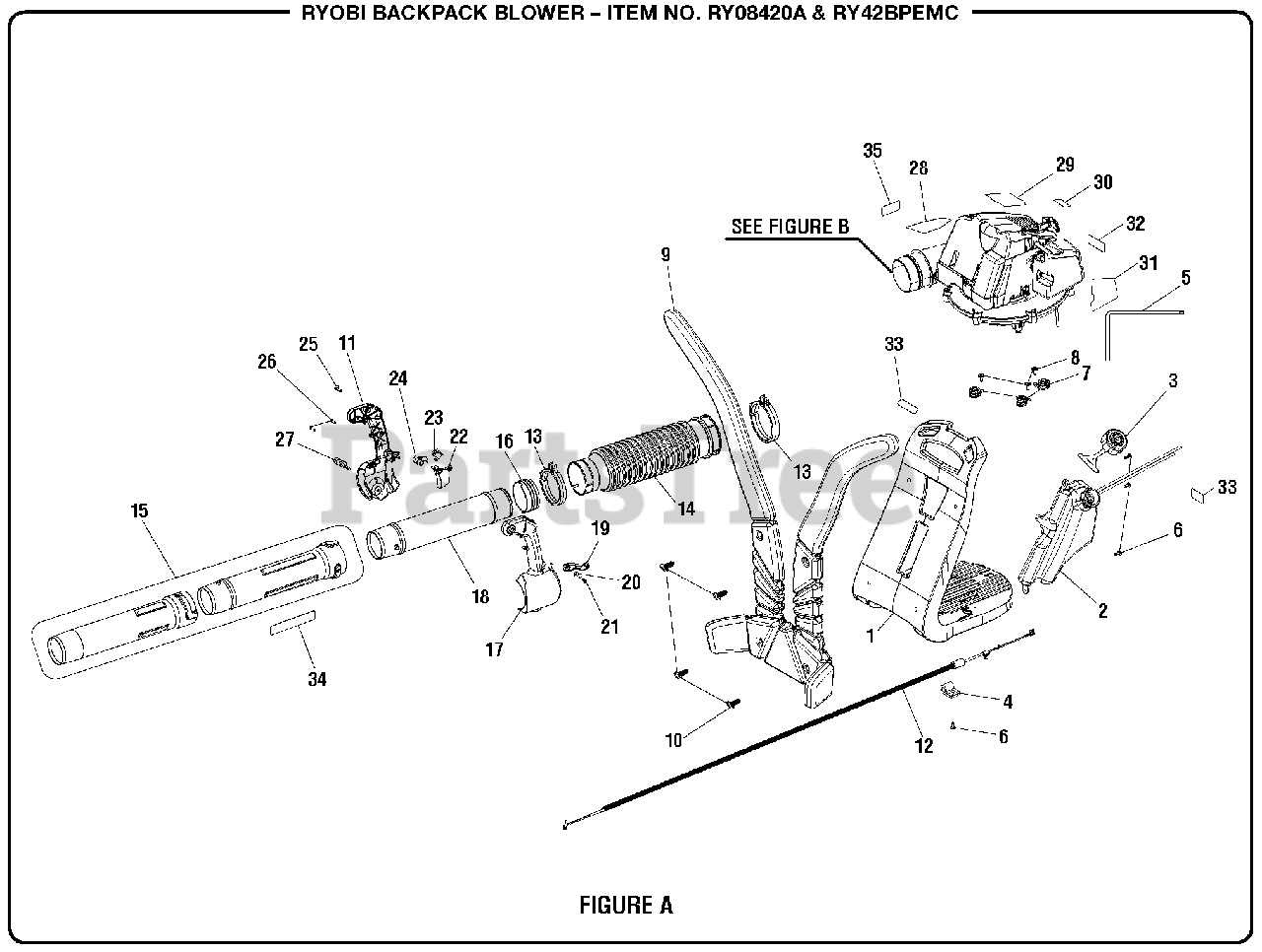

Figure A Parts Diagram

  • Title

1

Homelite 204649001

Frame w/Labels

$

$

Not available

2

Homelite 204651001

Fuel Tank Assembly w/Fuel Lines and Label

$14.99

$

Usually ships in 3-7 days

0

3

Homelite 310816015

Fuel Cap Assembly w/Tether

$13.99

$

In Stock, only 1 left!

0

4

Homelite 678561001

Cable Clamp

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 631055012

Wrench (T-25)

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 660614001

Screw (10-14 x 14 mm)

$1.99

$

In Stock, only 4 left!

0

7

Homelite 679950001

Spring

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 660626006

Screw (10-14 x 16 mm)

$1.99

$

In Stock, only 1 left!

0

9

Homelite 901588003

Strap

$74.99

$

Usually ships in 3-7 days

0

10

Homelite 525644002

Harness Snap Fastener

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 518272004

Right Hand Handle

$3.99

$

Usually ships in 3-7 days

0

12

Homelite 290298003

Throttle Cable

$

$

Not available

13

Homelite 580465001

Clamp Assembly Kit

$2.49

$

In Stock, Qty 16

0

14

Homelite 580693004

Tube

$

$

Not available

15

Homelite 310845009

Blower Tube Assembly
(Superseded to 306947001)

$7.99

$

Usually ships in 3-7 days

0

16

Homelite 518481003

Upper Blower Tube Bushing

$1.49

$

In Stock, Qty 8

0

17

Homelite 518271004

Left Hand Handle

$5.49

$

Usually ships in 3-7 days

0

18

Homelite 580692003

Upper Tube

$5.49

$

Usually ships in 3-7 days

0

19

Homelite 518160007

Cruise Lever

$1.99

$

In Stock, only 4 left!

0

20

Homelite 678125001

Washer (OD12 x ID4.3 x 1.5t)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 660666001

Screw (8-14 x 25 mm)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 518255005

Trigger

$

$

Not available

23

Homelite 760961002

Stop Switch

$3.99

$

Usually ships in 3-7 days

0

24

Homelite 518150001

Trigger Lock

$1.49

$

In Stock, only 3 left!

0

25

Homelite 660629001

Screw (10-14 x 3/4 in.)
(Superseded to 82563)

$1.99

$

In Stock, Qty 6

0

26

Homelite 660734001

Screw (M4 x 16 mm, Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

27

Homelite 518273002

Knob

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 941727002

Combustion Warning Label

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 940991051

Model Label

$1.99

$

In Stock, only 2 left!

0

30

Homelite 941738001

Choke Label

$1.49

$

In Stock, only 3 left!

0

31

Homelite 941739001

Start Instructions Label

$1.49

$

In Stock, only 3 left!

0

32

Homelite 941740001

Logo Label

$1.99

$

In Stock, only 2 left!

0

33

Homelite 941727003

Warning Label

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 941710010

Ryobi Tube Label

$

$

Not available

35

Homelite 940803288

EMC Label (RY42BPEMC)

$1.99

$

Usually ships in 3-7 days

0

Homelite 991000578

Operator's Manual (961172001)

Note: Not Shown:

$

$

Not available
