RY 41131 - Ryobi String Trimmer, Electric Figure A Parts Diagram

String Trimmer, Electric

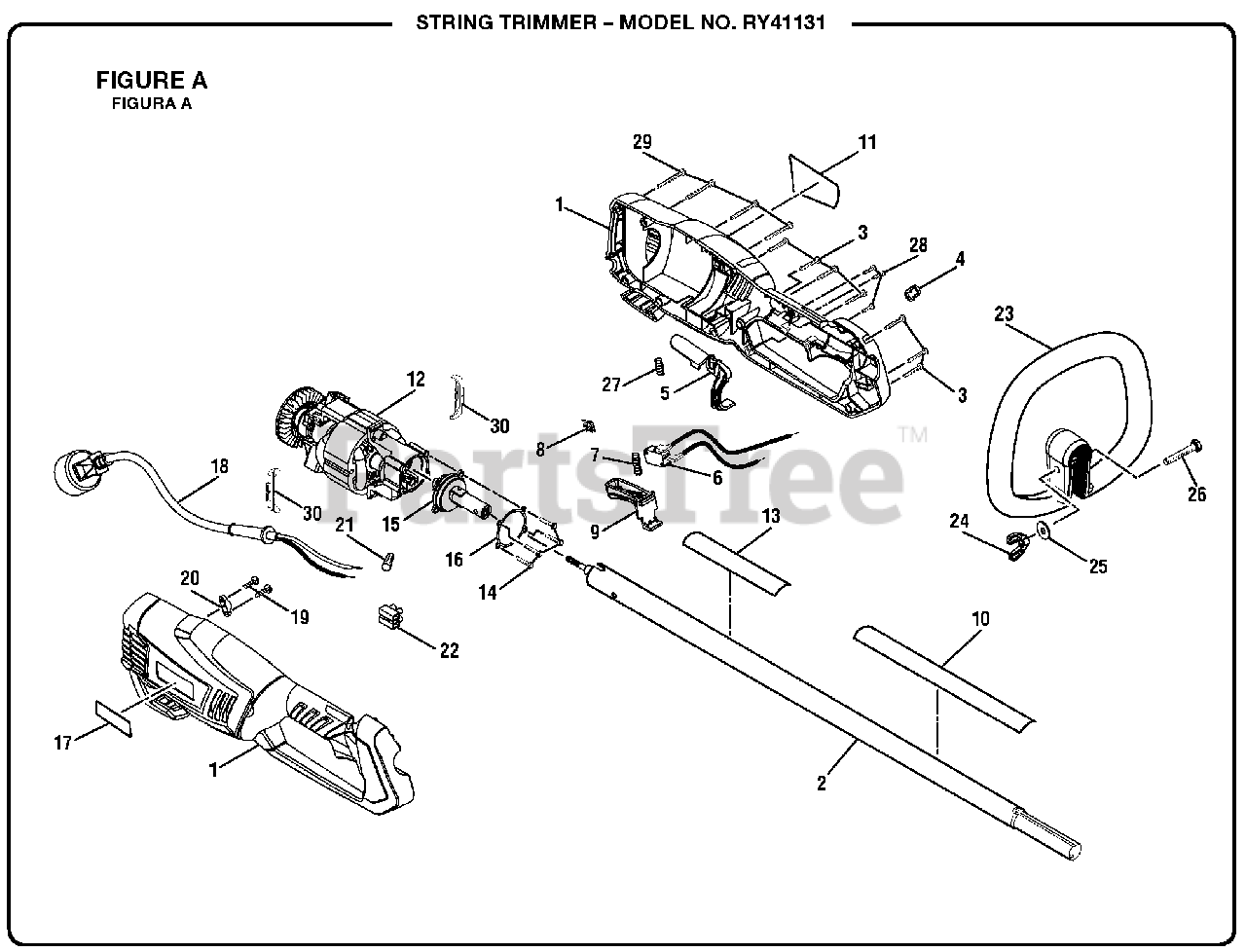

Figure A Parts Diagram

  • Title
1

Homelite 31301511AG

Housing Assembly
(Superseded to 31301511G)

$

$

Not available

2

Homelite 31110711G

Boom Assembly (Incl. Key Nos. 10 and 13)

$

$

Not available

3

Homelite 3220313G

Screw (M4 x 14 mm)

$0.99

$

In Stock, Qty 5

0

4

Homelite 33301511G

Strap Hook

$

$

Not available

5

Homelite 34101511AG

Lock-Out Lever

$

$

Not available

6

Homelite 31109511G

Switch Assembly w/Leads

$

$

Not available

7

Homelite 33904511G

Compression Spring

$1.49

$

In Stock, only 1 left!

0

8

Homelite 33901511G

Torsion Spring

$

$

Not available

9

Homelite 34101711G

Switch Trigger

$

$

Not available

10

Homelite 099919001902

Warning Label (French and Spanish)

$

$

Not available

11

Homelite 941588009

Data Label/Warning Label (English)

$

$

Not available

12

Homelite 36101711G

Motor Assembly

$

$

Not available

13

Homelite 940657056

Icon Strip Label

$

$

Not available

14

Homelite 3220205G

Screw (M4 x 10 mm)

$

$

Not available

15

Homelite 31105511G

Gear Assembly

$

$

Not available

16

Homelite 34201511G

Rubber Gasket

$

$

Not available

17

$

$

Not available

18

Homelite 31102511G

Power Cord Assembly

$

$

Not available

19

Homelite 3220345G

Screw (M3.5 x 12 mm)

$

$

Not available

20

Homelite 3410801G

Cord Clamp

$

$

Not available

21

$

$

Not available

22

Homelite 36404167G

Terminal Block

$

$

Not available

23

Homelite 308991001

Front Handle Assembly (Inc. Key Nos. 24-26)

$

$

Not available

24

Homelite 34104511G

Wing Nut (1/4-20)

$

$

Not available

25

Homelite 678008001

Washer (1/4 in.)

$1.99

$

In Stock, only 1 left!

0

26

Homelite 660643008

Bolt (1/4-20 x 40 mm)

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 33902511G

Compression Spring

$

$

Not available

28

Homelite 32202301G

Screw (M2.9 x 10 mm)

$

$

Not available

29

Homelite 3220106G

Screw (M4 x 18 mm)

$

$

Not available

30

Homelite 34104711G

Motor Mount

$

$

Currently unavailable

Homelite 990000073

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
