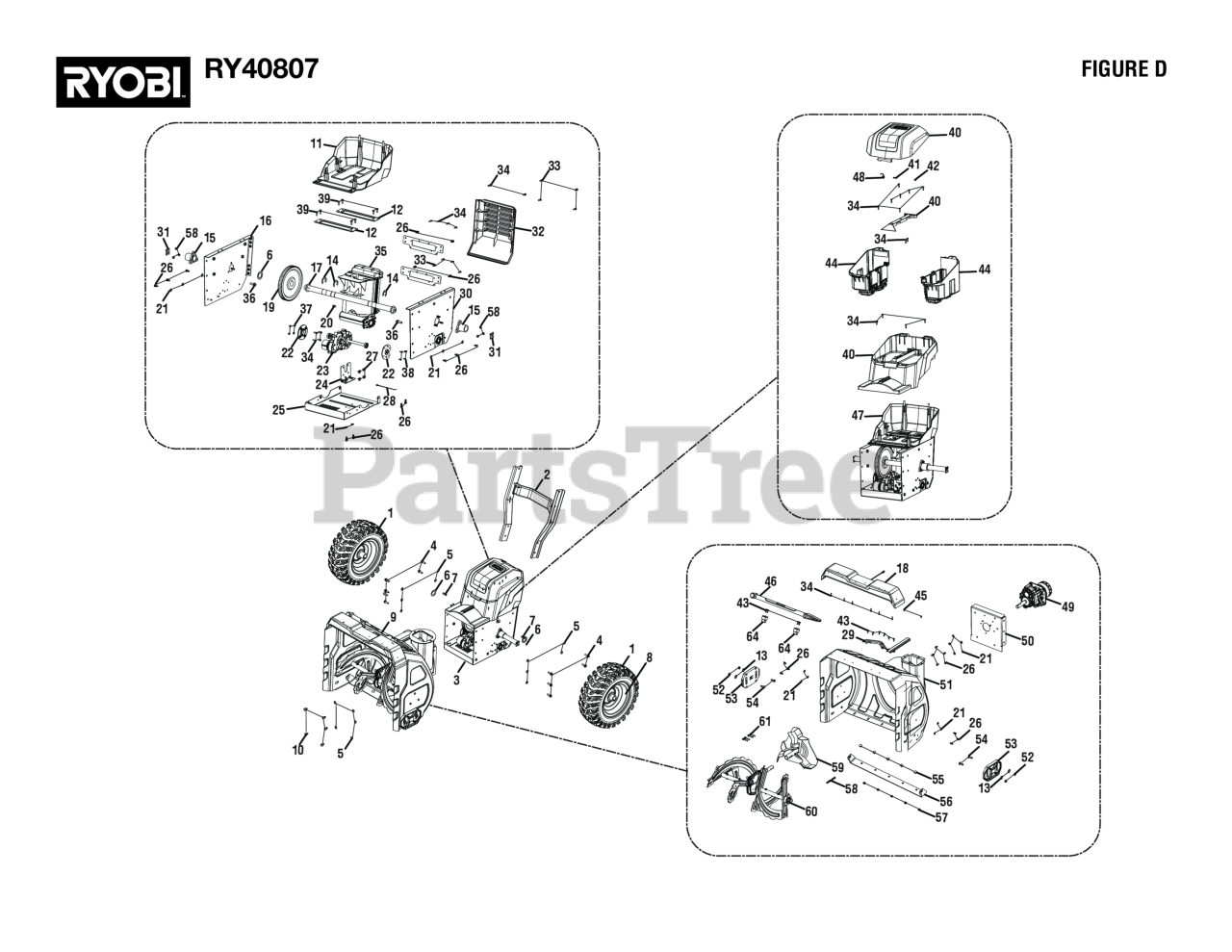

RY 40807 (107612001) - Ryobi 40V Brushless Snow Blower, Rev 01 (2022-02) FIGURE D Parts Diagram

40V Brushless Snow Blower, Rev 01

FIGURE D Parts Diagram

  • Title

1

Homelite 318384001

16 in. Tire Wheel Assembly

$378.99

$

Usually ships in 3-7 days

0

2

Homelite 699638001

Handle Level Adjustment

$167.99

$

Usually ships in 3-7 days

0

3

Homelite 318476001

Battery Box Assembly

$2399.99

$

Usually ships in 0 days

0

4

Homelite 660203091

Screw (M8 x 25 mm)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 638909005

Wave Washer

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 692019001

Washer (OD1.031 x ID1.57 x 0.60t)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 674337001

Key

$6.99

$

Usually ships in 3-7 days

0

8

Homelite 317954001

16 in. Pneumatic Wheel

$378.99

$

Usually ships in 3-7 days

0

9

Homelite 318475001

Lower Deck Assembly

$2776.99

$

Usually ships in 0 days

0

10

Homelite 662160001

Screw (M8 x 16 mm, T40 Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 544065001

Battery Box Base

$

$

Currently unavailable

12

Homelite 656086001

Cross Strut

$9.49

$

Usually ships in 3-7 days

0

13

Homelite 678126005

Washer (ID9.8 x OD30 x 3t)

$1.99

$

In Stock, only 4 left!

0

14

Homelite 656352001

E Ring

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 615154001

Axle Bushing

$36.99

$

Usually ships in 3-7 days

0

16

Homelite 656085001

Side Panel (Right)

$84.99

$

Usually ships in 3-7 days

0

17

Homelite 622962002

Axle

$205.99

$

Usually ships in 3-7 days

0

18

Homelite 318252001

Led Light Bar

$151.99

$

Usually ships in 3-7 days

0

19

Homelite 615300001

Big Output Gear

$205.99

$

Usually ships in 3-7 days

0

20

Homelite 674401001

Key

$15.99

$

Usually ships in 3-7 days

0

21

Homelite 638557001

Washer (ID6.2 x OD15 x 0.08t)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 205957001

Bearing Support Assembly

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 318391001

Gear Box Assembly

$377.99

$

Usually ships in 3-7 days

0

24

Homelite 656257001

Transmission Bracket

$12.99

$

Usually ships in 3-7 days

0

25

Homelite 656088001

Bottom Panel

$66.99

$

Usually ships in 3-7 days

0

26

Homelite 660481005

Screw (M6 x 14 mm)

$

$

Not available

27

Homelite 662199001

Screw w/Washer (M4-18 x 10 mm, T20 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 790062001

Clip

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 205950001

Wire Cover Assembly

$5.99

$

Usually ships in 3-7 days

0

30

Homelite 656084001

Side Panel (Left)

$82.99

$

Usually ships in 3-7 days

0

31

Homelite 656444001

Spring Plate Fastener

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 544711001

Black Panel

$11.99

$

Usually ships in 3-7 days

0

33

Homelite 661600001

Bolt (M5 x 14 mm)

$1.99

$

In Stock, only 4 left!

0

34

Homelite 660466001

Screw (M4 x 18 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, Qty 6

0

35

Homelite 318478001

Heat Sink Assembly

$1202.99

$

Usually ships in 3-7 days

0

36

Homelite 660203091

Screw (M8 x 25 mm)

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 670974003

Lock Nut

$

$

Currently unavailable

38

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

39

Homelite 660722001

Screw (M6 x 17 mm)

$1.99

$

In Stock, Qty 6

0

40

Homelite 205960001

Battery Cover Assembly

$11.99

$

Usually ships in 3-7 days

0

41

Homelite 679073001

Compression Spring

$1.99

$

In Stock, only 4 left!

0

42

Homelite 621628001

Battery Door Axle

$1.99

$

In Stock, only 4 left!

0

43

Homelite 660901001

Bolt (M5 x 14 mm)

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 205959001

Battery Box Assembly Assembly (See Fig. G)

$44.99

$

Usually ships in 3-7 days

0

45

Homelite 662746002

Screw (M4 x 10 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 544062001

Snow Shovel

$16.99

$

Usually ships in 3-7 days

0

47

Homelite 318477001

Chassis Assembly

$2280.99

$

Usually ships in 0 days

0

48

Homelite 679074006

Battery Door Torsion Spring

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 220757001

Gearbox Assembly

$1147.99

$

Usually ships in 3-7 days

0

50

Homelite 656087001

Adaptor Bracket

$60.99

$

Usually ships in 3-7 days

0

51

Homelite 205968001

Deck w/Labels

$787.99

$

Usually ships in 3-7 days

0

52

Homelite 631633001

Nut (M8 x 6.5 mm)

$1.99

$

In Stock, only 4 left!

0

53

Homelite 543863001

Skid Shoe

$11.99

$

Usually ships in 3-7 days

0

54

Homelite 661096001

Screw (M8 x 23 mm)

$1.99

$

In Stock, only 4 left!

0

55

Homelite 662383003

Screw (M8 x 11 mm)

$1.99

$

Usually ships in 3-7 days

0

56

Homelite 656090001

Scraper Blade

$33.99

$

Usually ships in 3-7 days

0

57

Homelite 662828001

Hex Nut (M8)

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 678460002

Lock Nut (M6 x 6 mm)

$1.99

$

Usually ships in 3-7 days

0

59

Homelite 318027001

Impeller Welded Assembly

$115.99

$

In Stock, only 1 left!

0

60

Homelite 318382001

Scraper Assembly

$665.99

$

Usually ships in 3-7 days

0

61

Homelite 663095001

Screw with Spring Washer (M6 x 35 mm)

$1.99

$

Usually ships in 0 days

0
