RY 40807 (107612001) - Ryobi 40V Brushless Snow Blower, Rev 01 (2022-02) FIGURE C Parts Diagram

40V Brushless Snow Blower, Rev 01

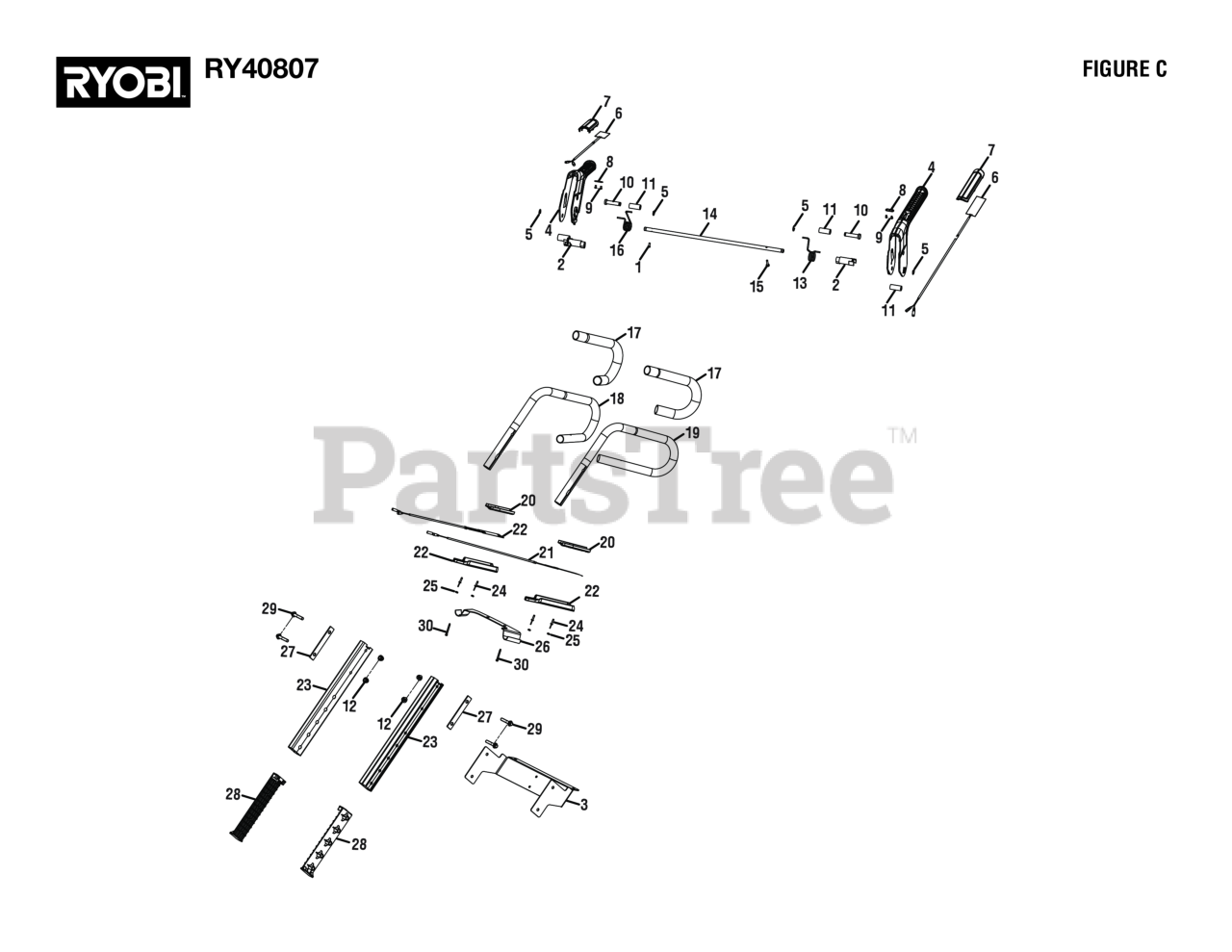

FIGURE C Parts Diagram

  • Title

1

Homelite 660878001

Screw (M4 x 10 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 205949001

Rod Assembly

$8.99

$

Usually ships in 0 days

0

3

Homelite 656260001

Console Support Bracket

$56.99

$

Usually ships in 3-7 days

0

4

Homelite 205953001

Action Handle Paddle Assembly

$

$

Currently unavailable

5

Homelite 679044001

E-Ring

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 890073002

Heating Grip

$

$

Currently unavailable

7

Homelite 545034001

Heated Grip Snap Cover

$

$

Currently unavailable

8

Homelite 656506001

Plate

$1.99

$

Usually ships in 0 days

0

9

Homelite 662107001

Screw (M4 x 6 mm, T10 Torx Pan Hd.)

$

$

Currently unavailable

10

Homelite 622960001

Paddle Stoper Pin

$

$

Not available

11

Homelite 545358001

Bushing

$

$

Currently unavailable

12

Homelite 678774002

Lock Nut (M8 x 1.25 mm, Flange)

$

$

Not available

13

Homelite 699817001

Drive Paddle Torsion Spring

$1.99

$

Usually ships in 0 days

0

14

Homelite 699816001

Paddle Rod Grip

$20.99

$

Usually ships in 0 days

0

15

Homelite 662395001

Bolt (M9 x 19 mm, T25 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 699818001

Drive Paddle Torsion Spring

$1.99

$

Usually ships in 0 days

0

17

Homelite 566546001

Foam Tube

$12.99

$

Usually ships in 3-7 days

0

18

Homelite 699642001

Handle (Right)

$40.99

$

Usually ships in 3-7 days

0

19

Homelite 699641001

Handle (Left)

$40.99

$

Usually ships in 3-7 days

0

20

Homelite 545126001

Lower Heated Grip

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 890073003

Heating Grips

$16.99

$

Usually ships in 3-7 days

0

22

Homelite 205963001

Lower Heated Grip Assembly

$6.49

$

Usually ships in 3-7 days

0

23

Homelite 699639001

Upper Handle Support Tube

$36.99

$

Usually ships in 3-7 days

0

24

Homelite 678002002

Al Rivet

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 566554001

Seal

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 656263001

Upper Handle Support

$19.99

$

Usually ships in 3-7 days

0

27

Homelite 656258001

Handle Reinforcement Plate

$5.49

$

Usually ships in 3-7 days

0

28

Homelite 205962001

Internal Bushing And Top Cover For Tube Assembly

$

$

Currently unavailable

29

Homelite 661505004

Bolt (M8 x 45 mm, Hex Flange Hd.)

$1.99

$

In Stock, Qty 5

0

30

Homelite 660026007

Screw (M4 x 38 mm)

$1.99

$

Usually ships in 3-7 days

0
