RY 40807 (107612001) - Ryobi 40V Brushless Snow Blower, Rev 01 (2022-02) FIGURE A Parts Diagram

40V Brushless Snow Blower, Rev 01

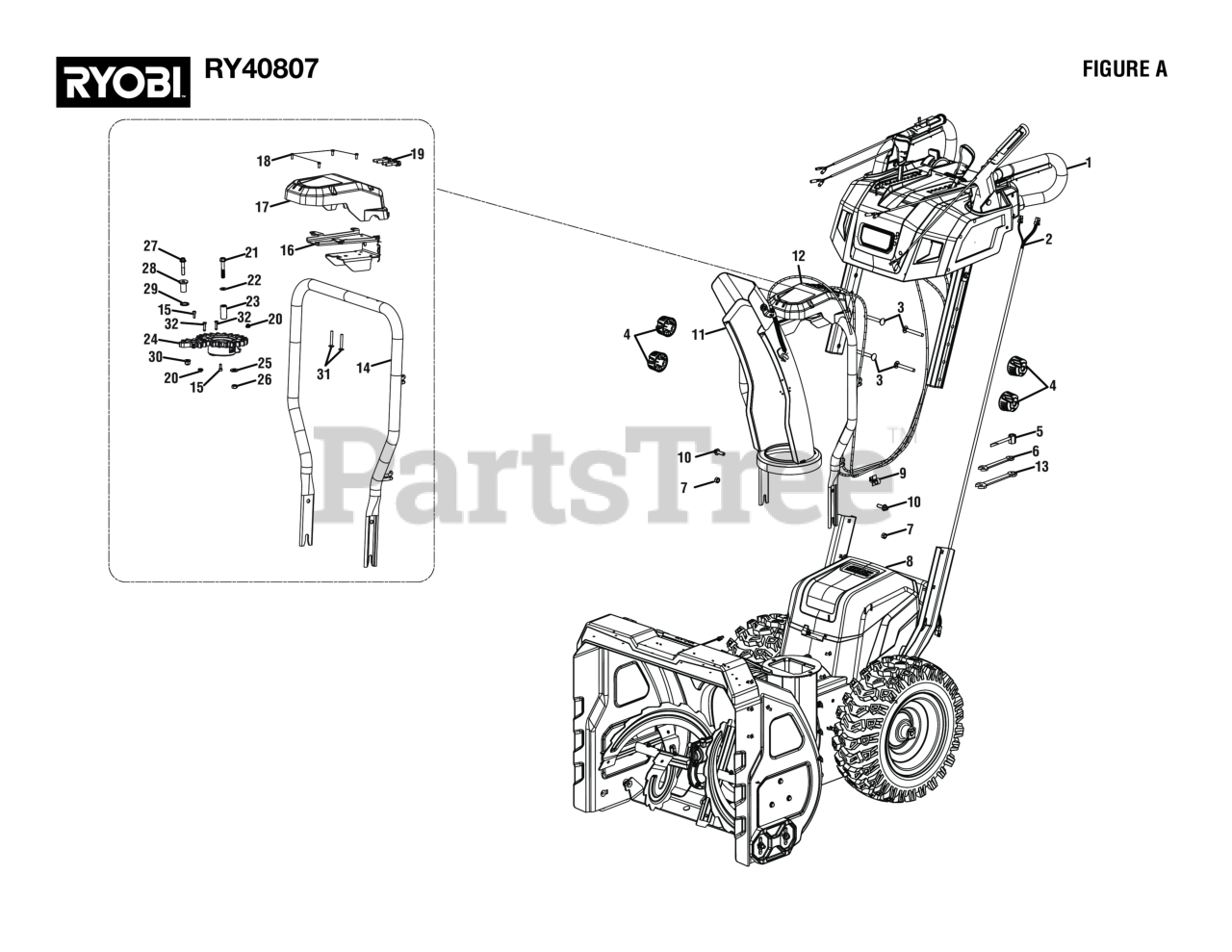

FIGURE A Parts Diagram

  • Title

1

Homelite 318482001

Upper Handle Assembly

$1294.99

$

Usually ships in 3-7 days

0

2

Homelite 292369001

Electrical Wire Assembly

$73.99

$

Usually ships in 3-7 days

0

3

Homelite 661526008

Carriage Bolt (M8 x 1.25 in.)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 543990001

Knuckle Knob

$4.49

$

Usually ships in 3-7 days

0

5

Homelite 612330001

Wrench

$5.99

$

In Stock, only 1 left!

0

6

Homelite 678024001

Open Ended Wrench

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 678355002

Hex Nut (M8)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 318474001

Down Body Assembly

$5969.99

$

Usually ships in 0 days

0

9

Homelite 545179001

Line Buckle

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 660203091

Screw (M8 x 25 mm)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 318493001

Chute Assembly

$171.99

$

Usually ships in 3-7 days

0

12

Homelite 318494001

Defletor Rotation Support Assembly

$163.99

$

Usually ships in 3-7 days

0

13

Homelite 674048001

12 mm Wrench

$5.49

$

Usually ships in 3-7 days

0

14

Homelite 699636001

Defletor Rotation Support Tube

$71.99

$

Usually ships in 3-7 days

0

15

Homelite 661600001

Bolt (M5 x 14 mm)

$1.99

$

In Stock, only 4 left!

0

16

Homelite 656288001

Chute Rotation Bracket

$40.99

$

Usually ships in 3-7 days

0

17

Homelite 544064001

Defletor Gear Cover

$9.49

$

Usually ships in 3-7 days

0

18

Homelite 660878001

Screw (M4 x 10 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 663095001

Screw with Spring Washer (M6 x 35 mm)

$1.99

$

Usually ships in 0 days

0

20

Homelite 678774007

Flange Lock Nut (M5 x 0.8 in.)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 660969001

Bolt (M8 x 50 mm Hex Hd)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 639013001

Washer (ID8.4 x OD18 x 1t)

$1.99

$

In Stock, only 1 left!

0

23

Homelite 544748001

Pivot Spacer

$

$

Currently unavailable

24

Homelite 205955001

Cable Drum Assembly

$16.99

$

Usually ships in 3-7 days

0

25

Homelite 636233001

Washer (ID8.5 x OD20.5 x 2 mm x 2t)

$1.99

$

In Stock, only 4 left!

0

26

Homelite 678355002

Hex Nut (M8)

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 660764002

Bolt (M8 x 1.25 x 40 mm, Flange Hd.)

$

$

Not available

28

Homelite 544747001

Pivot

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 636793001

Washer (ID 17.5 x OD24 x 1t)

$

$

Not available

30

Homelite 678774002

Lock Nut (M8 x 1.25 mm, Flange)

$

$

Not available

31

Homelite 662466005

Screw (M5 x 35 mm, T25 Torx Pan Hd.)

$1.99

$

In Stock, only 2 left!

0

32

Homelite 660466001

Screw (M4 x 18 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, Qty 7

0

Homelite 998000677

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
