RY 40806 VNM (108836108) - Ryobi 40V Snow Blower, Rev 01 (2021-09) FIGURE B Parts Diagram

40V Snow Blower, Rev 01

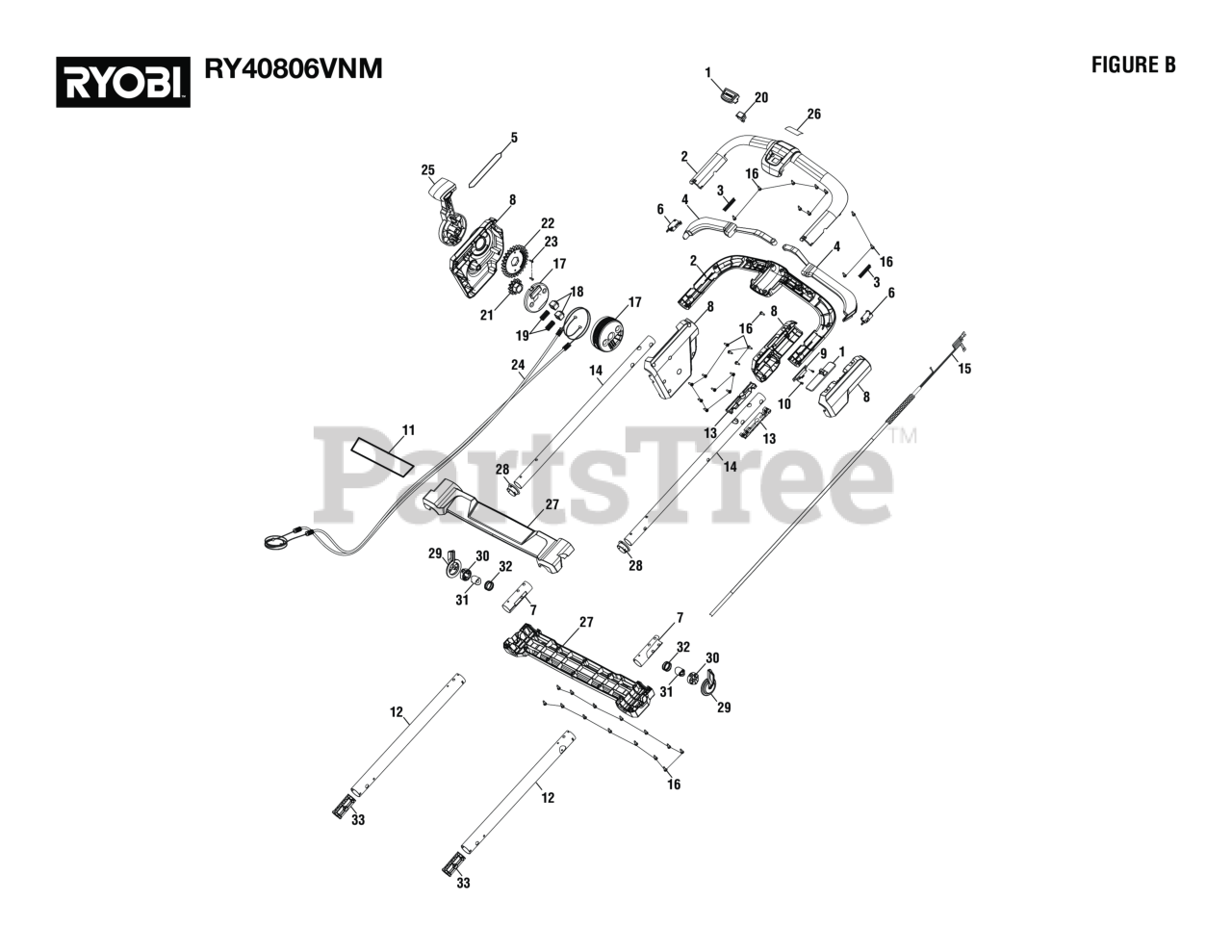

FIGURE B Parts Diagram

  • Title

1

Homelite 315819001

Switch Button Assembly

$5.99

$

Usually ships in 3-7 days

0

2

Homelite 315815001

Handle Cover Assembly

$20.99

$

Usually ships in 3-7 days

0

3

Homelite 696926001

Spring

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 315818001

Trigger Assembly

$11.99

$

Usually ships in 3-7 days

0

5

Homelite 941588390

Chute Direction Label

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 760551003

Switch (Red)

$4.49

$

Usually ships in 3-7 days

0

7

Homelite 537295001

Handle Tube Bushing

$1.99

$

In Stock, only 1 left!

0

8

Homelite 315811001

Chute Adjust & Speed Control Assembly

$21.99

$

Usually ships in 3-7 days

0

9

Homelite 270109001

Variable Switch

$8.49

$

Usually ships in 3-7 days

0

10

Homelite 660203073

SCREW, CH M3 PH B\L=6MM

$0.94

$

Usually ships in 3-7 days

0

11

Homelite 941588392

Logo Label (Crossbar)

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 697789001

Lower Tube

$12.99

$

Usually ships in 3-7 days

0

13

Homelite 538598001

Upper Cable Gland

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 697788001

Upper Handle Tube

$13.99

$

Usually ships in 3-7 days

0

15

Homelite 292106002

Wire Assembly

$36.99

$

Usually ships in 3-7 days

0

16

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

17

Homelite 315810001

Cable Drum Assembly

$15.99

$

Usually ships in 3-7 days

0

18

Homelite 614105001

Cable Trainer Sleeve

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 697796001

Spring

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 760653001

Center Switch

$10.99

$

Usually ships in 3-7 days

0

21

Homelite 614251001

Upper Drum Gear

$3.99

$

Usually ships in 3-7 days

0

22

Homelite 614250001

Lever Gear

$12.99

$

Usually ships in 3-7 days

0

23

Homelite 660187002

Screw (M3 x 22 mm, T10 Torx Pan Hd.)

$

$

Currently unavailable

24

Homelite 292112001

Control Cable Assembly

$41.99

$

Usually ships in 3-7 days

0

25

Homelite 537833001

Chute Rotation Handle

$11.99

$

Usually ships in 3-7 days

0

26

Homelite 941588391

Starting Instructions Label

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 315814001

Cross Bar Assembly

$27.99

$

Usually ships in 3-7 days

0

28

Homelite 529327001

Handle Tube Bushing (Small)

$1.99

$

In Stock, Qty 5

0

29

Homelite 543221001

Handle Latch

$1.99

$

Usually ships in 0 days

0

30

Homelite 543222001

Disc Holder

$1.99

$

Usually ships in 0 days

0

31

Homelite 565045002

Compression Disc (45A)

$1.99

$

Usually ships in 0 days

0

32

Homelite 697483001

Handle Compression Spring

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 539052001

Lower Cable Bushing

$1.99

$

Usually ships in 3-7 days

0
