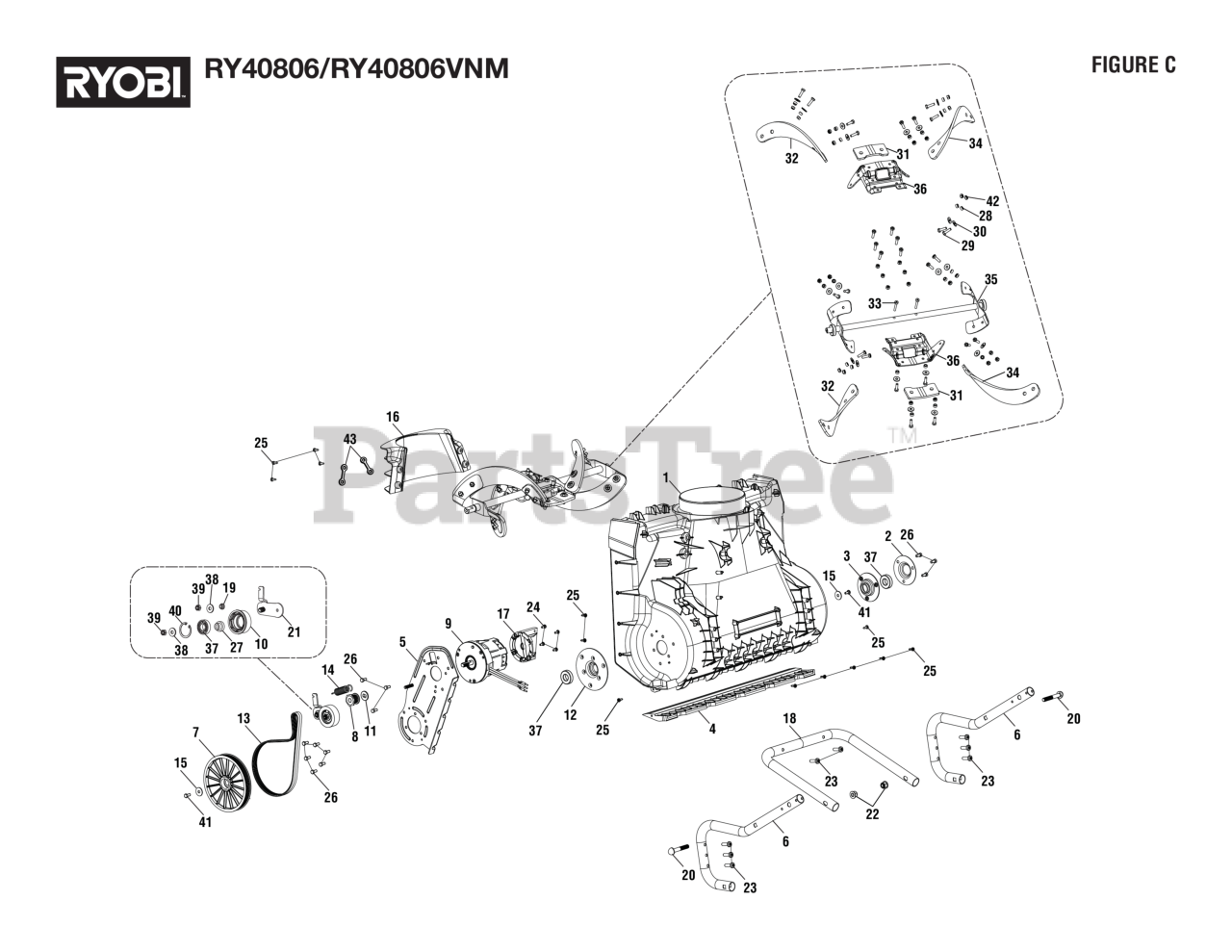

RY 40806 (107836001) - Ryobi 40V Snow Blower, Rev 03 (2021-04) FIGURE C Parts Diagram

40V Snow Blower, Rev 03

FIGURE C Parts Diagram

  • Title

1

Homelite 537723001

Lower Housing

$104.99

$

Usually ships in 3-7 days

0

2

Homelite 658277001

Cover Plate

$4.49

$

Usually ships in 3-7 days

0

3

Homelite 658276001

Bearing Retainer

$7.99

$

Usually ships in 3-7 days

0

4

Homelite 539777001

Scraper Blade

$26.99

$

Usually ships in 0 days

0

5

Homelite 658275001

Motor Mounting Plate

$19.99

$

Usually ships in 3-7 days

0

6

Homelite 697786001

Housing Mount Tube

$13.99

$

Usually ships in 3-7 days

0

7

Homelite 537737001

Auger Pulley

$24.99

$

In Stock, only 1 left!

0

8

Homelite 311275002

Motor Pulley

$12.99

$

Usually ships in 3-7 days

0

9

Homelite 742515001

Motor

$479.99

$

Usually ships in 3-7 days

0

10

Homelite 537834001

Idler Pulley

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 614164001

Spacer

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 658396001

Bearing Retainer Plate

$9.49

$

Usually ships in 3-7 days

0

13

Homelite 563939002

V-Belt

$14.99

$

In Stock, only 2 left!

0

14

Homelite 697873001

Belt Tensioner Spring

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 636191001

Flat Washer, ID6.6XOD20XT1.6, 65Mn,

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 538542001

Lower Chute Neck

$8.99

$

Usually ships in 3-7 days

0

17

Homelite 315820001

Mount Assembly

Note: (See Figure A, Inc. Key No. 9)

$14.99

$

Usually ships in 3-7 days

0

18

Homelite 658575001

Bracing Bar

$23.99

$

Usually ships in 3-7 days

0

19

Homelite 614166001

Flange Washer

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 662339001

Bolt (M8 x 60 mm, Pan Hd.)

$

$

Currently unavailable

21

Homelite 658395001

Idler Bracket

$6.99

$

Usually ships in 3-7 days

0

22

Homelite 678774012

Flange Lock Nut (M8 x 1.25 mm)

$1.99

$

In Stock, only 2 left!

0

23

Homelite 664004003

Screw (1/4-15 x 3/4 in., T30 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 661861004

Screw, M4X0.7, SCM435, Black Zinc Plated

$

$

Not available

25

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

26

Homelite 660927008

Screw (M5 x 12 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 614165001

Spacer (Idler Bracket)

$3.49

$

Usually ships in 3-7 days

0

28

Homelite 697795001

Auger Paddle Spacer

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 661618002

Bolt (M6 x 16 mm, Hex Soc. Hd.)

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 680335079

Washer (OD18 x ID6.6 x 1.5t)

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 565320001

Auger Paddle (Center)

$4.99

$

In Stock, only 2 left!

0

32

Homelite 565321001

Auger Paddle (Drive Side)

$12.99

$

In Stock, only 2 left!

0

33

Homelite 660613004

Screw (M5 x 30 mm, T25 Torx Pan Hd.)

$1.99

$

Usually ships in 0 days

0

34

Homelite 565176001

Auger Paddle (Long Side)

$13.99

$

Usually ships in 3-7 days

0

35

Homelite 315336001

Flange and Shaft Assembly

$75.99

$

In Stock, only 1 left!

0

36

Homelite 658279001

Center Bracket.

$21.99

$

In Stock, only 1 left!

0

37

Homelite 680071012

Ball Bearing (6002 2RS)

$

$

Currently unavailable

38

Homelite 680491003

Washer (OD18.8 x ID7 x 2t)

$

$

Currently unavailable

39

Homelite 671243002

Nut (#1/4-20)

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 636327001

C-Ring

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 660697003

Screw (M6 x 12 mm, T27 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 678460001

Lock Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 529299001

Terminal Block Holder

$1.99

$

Usually ships in 3-7 days

0
