RY 40806 (107836001) - Ryobi 40V Snow Blower, Rev 03 (2021-04) FIGURE A Parts Diagram

40V Snow Blower, Rev 03

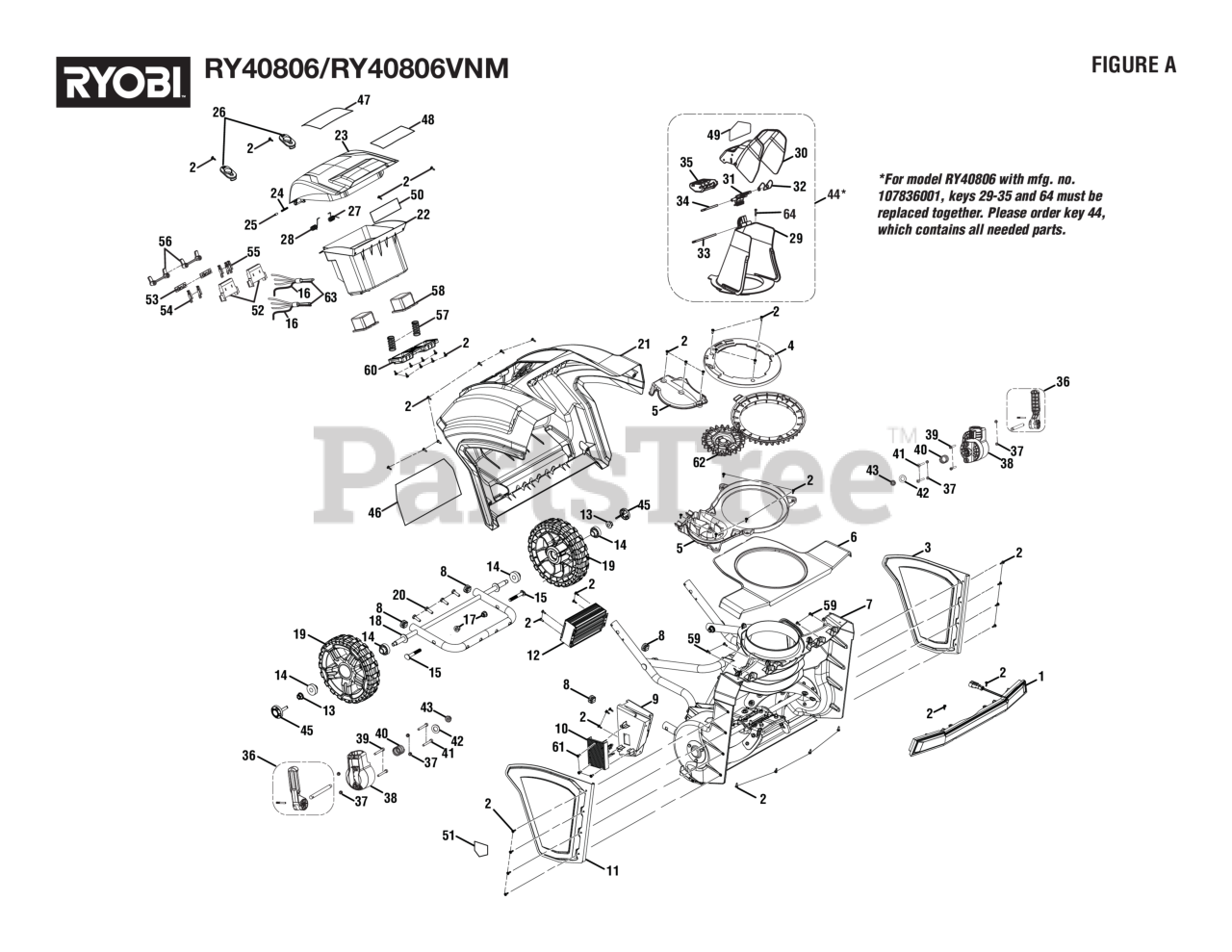

FIGURE A Parts Diagram

  • Title

1

Homelite 315043001

LED Light Assembly

$84.99

$

Usually ships in 3-7 days

0

2

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

3

Homelite 658280001

Left Side Cover

$

$

Currently unavailable

4

Homelite 537736001

Chute Rotation Bezel

$7.99

$

Usually ships in 3-7 days

0

5

Homelite 315817001

Chute Rotation Assembly

$21.99

$

Usually ships in 3-7 days

0

6

Homelite 537727001

Top Housing Cover

$23.99

$

Usually ships in 3-7 days

0

7

Auger Housing Assembly

Note: See Figure C

$

$

Not available

8

Homelite 529330001

Plug

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 315820001

Mount Assembly

Note: (See Fig. C, Inc. Key No. 17)

$14.99

$

Usually ships in 3-7 days

0

10

Homelite 280865001

Battery Controller

$85.99

$

Usually ships in 3-7 days

0

11

Homelite 315805001

Right Side Cover Assembly

Note: (Inc. Key No. 51)

$37.99

$

Usually ships in 3-7 days

0

12

Homelite 280400007

Brushless Motor Controller
(Superseded to 280400018)

$453.99

$

Usually ships in 3-7 days

0

13

Homelite 662082001

Lock Nut (3/8-16, Flange)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 538520001

Wheel Spacer

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 662339001

Bolt (M8 x 60 mm, Pan Hd.)

$

$

Currently unavailable

16

Homelite 292162001

Ground Cable

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 678774012

Flange Lock Nut (M8 x 1.25 mm)

$1.99

$

In Stock, only 2 left!

0

18

Homelite 314993001

Axle and Lower Frame Assembly

$35.99

$

Usually ships in 3-7 days

0

19

Homelite 313618001

8 in. Wheel Assembly

$21.99

$

Usually ships in 3-7 days

0

20

Homelite 664004003

Screw (1/4-15 x 3/4 in., T30 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 315804001

Rear Cover Assembly

Note: (Inc. Key No. 46, RY40806)

$89.99

$

Usually ships in 3-7 days

0

22

Homelite 315812001

Battery Box Assembly

Note: (Inc. Key No. 50)

$33.99

$

In Stock, only 3 left!

0

23

Homelite 315807001

Battery Cover Assembly

Note: (Inc. Key Nos. 47-48)

$32.99

$

Usually ships in 3-7 days

0

24

Homelite 679073001

Compression Spring

$1.99

$

In Stock, only 4 left!

0

25

Homelite 621628001

Battery Door Axle

$1.99

$

In Stock, only 4 left!

0

26

Homelite 537718001

End Cap

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 698023001

Torsion Spring (RH)

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 698023002

Torsion Spring (LH)

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 537741001

Upper Chute

Note: For RY40806 with mfg. no. 107836001, keys 29-35 and 64 must be replaced together. Please order key 44, which contains all needed parts.

$12.99

$

Usually ships in 3-7 days

0

30

Homelite 537740001

Chute Deflector

Note: For RY40806 with mfg. no. 107836001, keys 29-35 and 64 must be replaced together. Please order key 44, which contains all needed parts.

$

$

Currently unavailable

31

Homelite 541032001

Latch

Note: For RY40806 with mfg. no. 107836001, keys 29-35 and 64 must be replaced together. Please order key 44, which contains all needed parts.

$

$

Currently unavailable

32

Homelite 697882002

Chute Deflector Spring

Note: For RY40806 with mfg. no. 107836001, keys 29-35 and 64 must be replaced together. Please order key 44, which contains all needed parts.

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 673981001

Pin (Deflector)

Note: For RY40806 with mfg. no. 107836001, keys 29-35 and 64 must be replaced together. Please order key 44, which contains all needed parts.

$2.99

$

Usually ships in 3-7 days

0

34

Homelite 673990001

Pin (Latch)

Note: For RY40806 with mfg. no. 107836001, keys 29-35 and 64 must be replaced together. Please order key 44, which contains all needed parts.

$1.99

$

In Stock, only 2 left!

0

35

Homelite 537743001

Button

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 315816001

Cam Latch Assembly

$22.99

$

Usually ships in 3-7 days

0

37

Homelite 670974003

Lock Nut

$

$

Currently unavailable

38

Homelite 315808001

Knuckle Assembly

$30.99

$

Usually ships in 3-7 days

0

39

Homelite 660347003

Cap Screw (M5 x 45 mm, T25 Torx Soc. Hd.)

$1.99

$

In Stock, Qty 5

0

40

Homelite 696920001

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 662466001

Screw (M5 x 35 mm, T25 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 678889003

Washer (OD24 x ID12.5 x 2.5t)

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 690689001

Flange Nut (M8, Flywheel)
(Superseded to 6968901)

$

$

Not available

44

Homelite 315044001

Chute Deflector Assembly w/Label

Note: (Inc. Key Nos. 29-35 & 64)

$

$

Currently unavailable

45

Homelite 535063001

Wheel Hub

$

$

Currently unavailable

46

Homelite 941588393

Data/Warning Icons Label

$1.99

$

Usually ships in 3-7 days

0

47

Homelite 941588394

Battery Notice Label

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 941588395

Logo Label (Battery Cover)

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 941588400

Chute Warning Icons Label

$1.99

$

Usually ships in 3-7 days

0

50

Homelite 941588401

Recommended Battery Usage Label

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 941641001

Danger Label (No Hands/Feet)

$

$

Not available

52

Homelite 525692001

Battery Connector
(Superseded to 120722005)

$20.99

$

Usually ships in 3-7 days

0

53

Homelite 525651001

PLASTIC, BATTERY COVER CONNECTOR,
(Superseded to 525651002)

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 638991001

STAMPING I BATTERY CONTACT PLATE TERMINA

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 638991004

Contact Plate Terminal

$1.99

$

Usually ships in 3-7 days

0

56

Homelite 513211003

Hold-Down Tab

$1.99

$

Usually ships in 3-7 days

0

57

Homelite 697881001

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 537742001

Battery Ejector Post

$2.49

$

Usually ships in 3-7 days

0

59

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$1.99

$

In Stock, only 4 left!

0

60

Homelite 537745001

Spring Retainer

$5.99

$

Usually ships in 3-7 days

0

61

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 6

0

62

Homelite 315809001

Chute Gear Assembly

$15.99

$

Usually ships in 3-7 days

0

63

Homelite 291547004

Wire Assembly

$3.99

$

Usually ships in 3-7 days

0

64

Homelite 660208050

Screw (M4 x 20 mm, Philllips -Pan Hd., RY40806VNM)

Note: For RY40806 with mfg. no. 107836001, keys 29-35 and 64 must be replaced together. Please order key 44, which contains all needed parts.

$

$

Currently unavailable

Homelite 995000844

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
