RY 40805 (107700021) - Ryobi 40V Snow Blower, Rev 01 (2018-07) Figure B Parts Diagram

40V Snow Blower, Rev 01

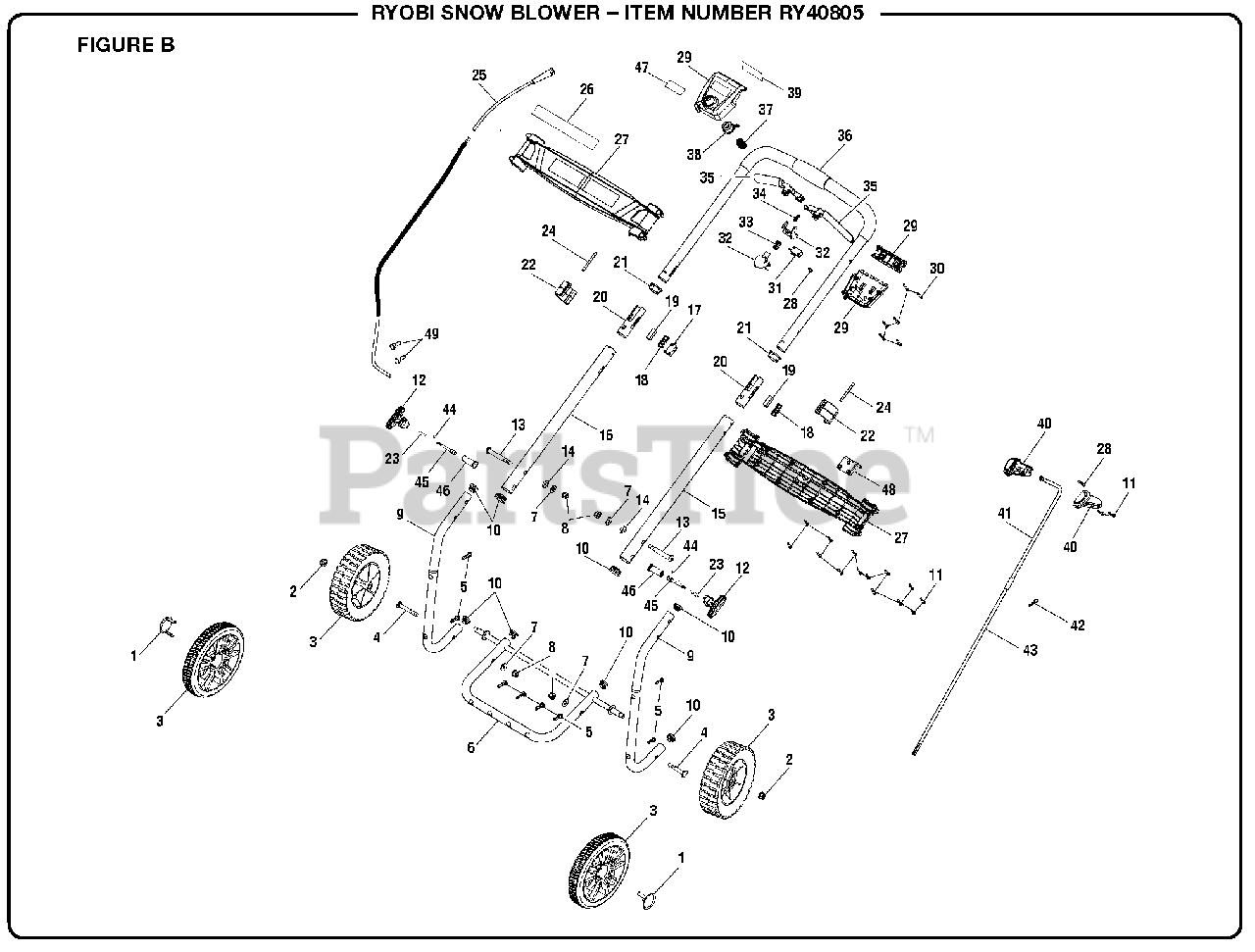

Figure B Parts Diagram

  • Title

1

Homelite 526876001

Wheel Cover (Before Serial Number EU18234D020307)

$1.99

$

In Stock, only 1 left!

0

2

Homelite 662082001

Lock Nut (3/8-16)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 307988002

8 in. Wheel Assembly (Before Serial Number EU18234D020307)

$23.99

$

Usually ships in 3-7 days

0

3

Homelite 313973001

8 in. Wheel Assembly

$29.99

$

Usually ships in 3-7 days

0

4

Homelite T662339001

Screw (M8 x 60 mm, Special Hd.)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 664004003

Screw (1/4-15, T30 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 311274002

Lower Support Tube and Axle Assembly (Before Serial Number EU18234D020307)

$

$

Not available

6

Homelite 313974001

Lower Support Tube and Axle Assembly

$34.99

$

Usually ships in 3-7 days

0

7

Homelite 636233001

Washer (ID8.5 x OD20.5 x 2 mm x 2t)

$1.99

$

In Stock, only 4 left!

0

8

Homelite 678774012

Flange Lock Nut (M8 x 1.25 mm)

$1.99

$

In Stock, only 2 left!

0

9

Homelite 694988002

Lower Handle

$

$

Not available

10

Homelite 203885001

End Cap Set (22 mm)

$4.49

$

Usually ships in 3-7 days

0

11

Homelite 661189003

Screw (4 x 18 mm, T15 Torx Pan Hd.)

$1.99

$

In Stock, Qty 6

0

12

Homelite 528361002

Spring Pin Adjustment Knob

$1.99

$

In Stock, Qty 7

0

13

Homelite 662322001

Screw (M8 x 73 mm, T40 Torx Button Hd.)

$3.99

$

Usually ships in 3-7 days

0

14

Homelite 526907002

Block Washer (ID10.4 x OD22 x 6.75t)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 695012002

Left Middle Straight Tube

$6.49

$

In Stock, only 1 left!

0

16

Homelite 694986002

Right Middle Straight Tube

$

$

Not available

17

Homelite 760551002

Switch

$4.49

$

In Stock, only 2 left!

0

18

Homelite 529298001

Locking Block

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 563862001

Rubber Gasket

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 529328002

Handle Tube Bushing

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 529327001

Straight Tube Bushing

$1.99

$

In Stock, Qty 5

0

22

Homelite 529293001

Telescoping Latch

$1.99

$

In Stock, only 1 left!

0

23

Homelite 694490001

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 621895001

Pin

$1.99

$

In Stock, only 2 left!

0

25

Homelite 270079001

Wiring Assembly

$26.99

$

Usually ships in 3-7 days

0

26

Homelite 940851060

Mid Panel Logo Label

$

$

Not available

27

Homelite 203886001

Mid Trim Housing Assembly

Note: (Inc. Key No. 26)

$30.99

$

Usually ships in 3-7 days

0

28

Homelite 661189002

Screw (M4 x 10 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 5

0

29

Homelite 203887001

Trigger Housing Assembly

Note: (Inc. Key Nos. 39 & 47)

$14.99

$

Usually ships in 3-7 days

0

30

Homelite 660208104

Screw (M4 x 30 mm, T15 Torx Soc. Hd.)

$1.99

$

In Stock, only 2 left!

0

31

Homelite 760689007

On/Off Switch
(Superseded to 760689010)

$4.49

$

In Stock, only 2 left!

0

32

Homelite 203888001

Switch Button Assembly

$4.49

$

Usually ships in 3-7 days

0

33

Homelite 694990001

Compression Spring (Trigger Handle)

$

$

Not available

34

Homelite 694991001

Compression Spring (Trigger)

$

$

Not available

35

Homelite 203889001

Trigger Assembly

$7.99

$

Usually ships in 3-7 days

0

36

Homelite 311340001

Upper Handle Assembly

$35.99

$

Usually ships in 3-7 days

0

37

Homelite 694136002

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 529322001

Safety Button

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 940686159

Start Label

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 203891001

Chute Handle Assembly

$6.99

$

In Stock, only 4 left!

0

41

Homelite 636796001

Upper Rod

$5.49

$

In Stock, only 1 left!

0

42

Homelite 673437001

Hitch Pin

$1.99

$

In Stock, only 3 left!

0

43

Homelite 636795001

Lower Rod

$10.99

$

In Stock, only 2 left!

0

44

Homelite 673441001

Spring Pin

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 673438001

Detent Pin

$2.49

$

In Stock, Qty 6

0

46

Homelite 642586001

Spring Pin Housing

$3.49

$

In Stock, Qty 7

0

47

Homelite 940705286

Logo Label

$

$

Not available

48

Homelite 529290001

Chute Support (Plastic)

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 790009004

Wire Connector

$1.99

$

Usually ships in 3-7 days

0

Homelite 995000565

Operator's Manual

Note: Not Shown

$

$

Not available
