RY 408010 VNM (108678001) - Ryobi 40V Snow Blower, Rev 01 (2022-02) Figure A Parts Diagram

40V Snow Blower, Rev 01

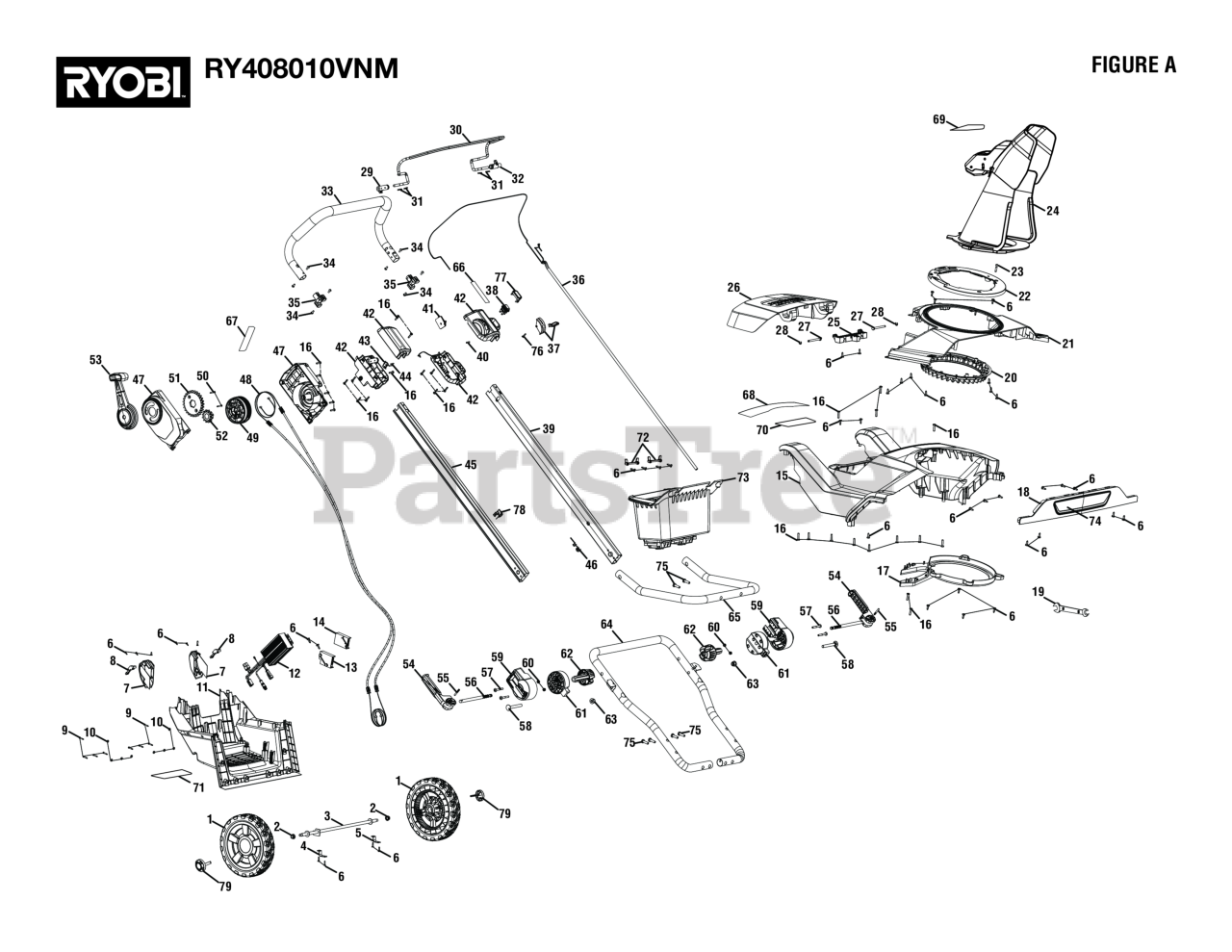

Figure A Parts Diagram

  • Title

1

Homelite 318311001

11 in. Wheel Assembly

$69.99

$

Usually ships in 3-7 days

0

2

Homelite 679075001

Blade Nut (M10 x 1.25, Hex Flange Hd.)

$1.99

$

In Stock, only 3 left!

0

3

Homelite 656053001

Rear Axle

$26.99

$

Usually ships in 3-7 days

0

4

Homelite 656054001

Right Rear Axle Press Plate

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 656075001

Left Rear Axle Press Plate

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

7

Homelite 205848001

Shoulder Assembly

$7.99

$

Usually ships in 3-7 days

0

8

Homelite 205850001

Knuckle Assembly

$9.49

$

Usually ships in 3-7 days

0

9

Homelite 660208049

Screw (M4 x 22 mm Pan Hd.)

$

$

Currently unavailable

10

Homelite 543987001

Rubber Washer

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 543822001

Bottom Cover (Inc. Key No. 71)

$50.99

$

Usually ships in 3-7 days

0

12

Homelite 280400016

Brushless Motor Controller

$645.99

$

Usually ships in 3-7 days

0

13

Homelite 543391002

Controller Mouting Other Side

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 543391001

Controller Mouting

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 205863001

Top Cover

Note: (Inc. Key Nos. 68 & 70)

$42.99

$

Usually ships in 3-7 days

0

16

Homelite 660466001

Screw (M4 x 18 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, Qty 7

0

17

Homelite 543845001

Rotation Gear Cover

$8.99

$

Usually ships in 3-7 days

0

18

Homelite 543827001

Front Cover

$5.49

$

Usually ships in 3-7 days

0

19

Homelite 674048001

12 mm Wrench

$5.49

$

Usually ships in 3-7 days

0

20

Homelite 543832001

Chute Gear

$9.99

$

Usually ships in 3-7 days

0

21

Homelite 543826001

Rear Cover

$15.99

$

Usually ships in 3-7 days

0

22

Homelite 537736001

Chute Rotation Bezel

$7.99

$

Usually ships in 3-7 days

0

23

Homelite 663151001

Screw (M4 x 20 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 317839001

Chute Assembly

$45.99

$

Usually ships in 3-7 days

0

25

Homelite 543916001

Battery Cover Spring Support

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 543825001

Battery Cover

$23.99

$

Usually ships in 3-7 days

0

27

Homelite 622906001

Hinge Shaft

$3.99

$

Usually ships in 3-7 days

0

28

Homelite 678353001

Retaining Ring (4 mm)
(Superseded to 986165001)

$1.99

$

In Stock, only 1 left!

0

29

Homelite 543933001

Spring Side Actuator

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 699555001

Trigger

$32.99

$

Usually ships in 3-7 days

0

31

Homelite 674290001

Spring Pin (3 x 16 mm)

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 543934001

Switch Side Actuator

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 317834001

Upper Handle and Foam Grip Assembly

$33.99

$

Usually ships in 3-7 days

0

34

Homelite 660414009

Screw (M4 x 9 mm, T20 Torx Pan Hd.)

$

$

Currently unavailable

35

Homelite 615073001

Linkage

$13.99

$

Usually ships in 3-7 days

0

36

Homelite 292334001

Electrical Wire Assembly

$43.99

$

Usually ships in 3-7 days

0

37

Homelite 205851001

Speed Control Assembly

Note: (Inc. Key No. 77)

$8.49

$

Usually ships in 3-7 days

0

38

Homelite 760653001

Center Switch

$10.99

$

Usually ships in 3-7 days

0

39

Homelite 656052002

Right Tube

$77.99

$

Usually ships in 3-7 days

0

40

Homelite 673924001

Dial Lever Insert

$1.99

$

In Stock, only 4 left!

0

41

Homelite 281474001

Potentiometer Control Board Assembly

$8.99

$

Usually ships in 3-7 days

0

42

Homelite 205845001

Actuator Housing Assembly

Note: (Inc. Key No. 66)

$18.99

$

Usually ships in 3-7 days

0

43

Homelite 760595004

Micro Switch

$3.49

$

Usually ships in 0 days

0

44

Homelite 622917001

Switch Pin

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 656052001

Left Tube

$77.99

$

Usually ships in 3-7 days

0

46

Homelite 699597001

Line Buckle

$1.99

$

Usually ships in 3-7 days

0

47

Homelite 205846001

Chute Adjustment Assembly

Note: (Inc. Key No. 67)

$14.99

$

In Stock, only 1 left!

0

48

Homelite 292333001

Cable Assembly

$42.99

$

Usually ships in 3-7 days

0

49

Homelite 315046001

Upper Cable Drum Assembly

$9.99

$

Usually ships in 3-7 days

0

50

Homelite 660187002

Screw (M3 x 22 mm, T10 Torx Pan Hd.)

$

$

Currently unavailable

51

Homelite 614250001

Lever Gear

$12.99

$

Usually ships in 3-7 days

0

52

Homelite 614251001

Upper Drum Gear

$3.99

$

Usually ships in 3-7 days

0

53

Homelite 543819001

Chute Adjustment Lever

$11.99

$

Usually ships in 3-7 days

0

54

Homelite 543921001

Knuckle Cam Latch

$3.49

$

Usually ships in 3-7 days

0

55

Homelite 673874001

Cam Lever Dowel (4 mm)

$1.99

$

Usually ships in 3-7 days

0

56

Homelite 674292001

Cam Pin

$9.99

$

Usually ships in 3-7 days

0

57

Homelite 661143001

Screw (M5 x 38 mm, T25 Torx Truss Hd.)

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 661526008

Carriage Bolt (M8 x 1.25 in.)

$1.99

$

Usually ships in 3-7 days

0

59

Homelite 205850001

Knuckle Assembly

Note: (Inc. Key No. 8)

$9.49

$

Usually ships in 3-7 days

0

60

Homelite 670974003

Lock Nut

$

$

Currently unavailable

61

Homelite 543923001

Handlebar Cleat

$3.99

$

Usually ships in 3-7 days

0

62

Homelite 543924001

Wing Nut

$3.49

$

Usually ships in 3-7 days

0

63

Homelite 678774012

Flange Lock Nut (M8 x 1.25 mm)

$1.99

$

In Stock, only 2 left!

0

64

Homelite 656051001

Internal Bracing Bar Tube

$73.99

$

Usually ships in 3-7 days

0

65

Homelite 656055001

Lower Support Tube

$35.99

$

Usually ships in 3-7 days

0

66

Homelite 941263030

Starting Instructions Label

$1.99

$

Usually ships in 3-7 days

0

67

Homelite 941263031

Chute Rotation Label

$1.99

$

Usually ships in 3-7 days

0

68

Homelite 941263027

Icons/Danger/Caution Label

$1.99

$

Usually ships in 3-7 days

0

69

Homelite 941588400

Chute Warning Icons Label

$1.99

$

Usually ships in 3-7 days

0

70

Homelite 941263003

Battery Notice Label

$1.99

$

Usually ships in 3-7 days

0

71

Homelite 941263032

Data Label

$1.99

$

Usually ships in 3-7 days

0

72

Homelite 529299001

Terminal Block Holder

$1.99

$

Usually ships in 3-7 days

0

73

Homelite 317837001

Battery Box Assemblyx

Note: (Inc. Key Nos. 25-28 & 72)

$75.99

$

Usually ships in 3-7 days

0

74

Homelite 317963001

Light Bar

$52.99

$

Usually ships in 3-7 days

0

75

Homelite 664004003

Screw (1/4-15 x 3/4 in., T30 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

76

Homelite 660203002

Screw (M x 12 mm, Pan Hd.)

$

$

Not available

77

Homelite 543813001

Start Button

$1.99

$

Usually ships in 3-7 days

0

78

Homelite 545179001

Line Buckle

$1.99

$

Usually ships in 3-7 days

0

79

Homelite 542861001

Wheel Hub Cap

$1.99

$

Usually ships in 3-7 days

0

Homelite 995000844

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
