RY 40801 - Ryobi Snow Blower Figure C Parts Diagram

Snow Blower

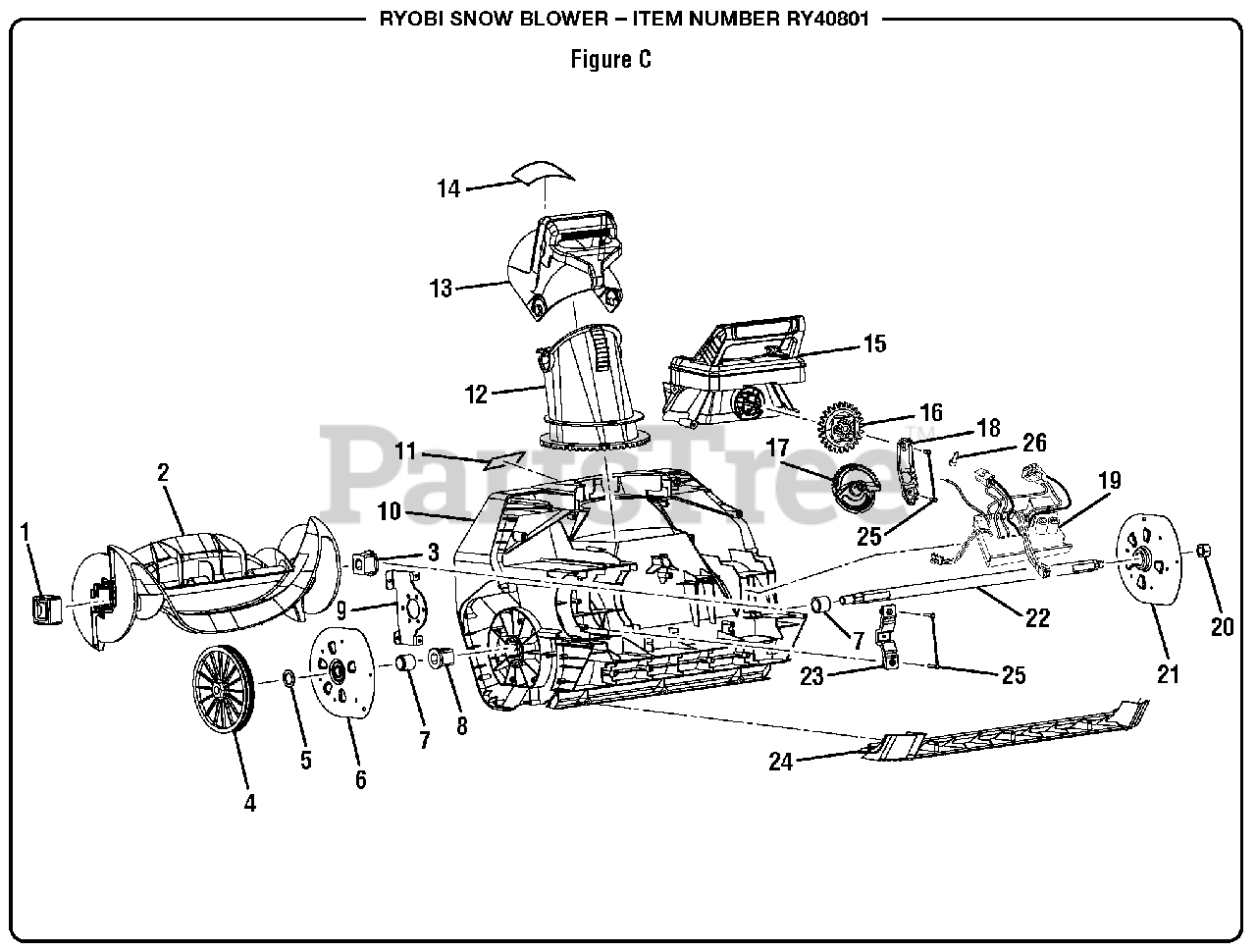

Figure C Parts Diagram

  • Title
1

Homelite 099723051048

Connect plate

$

$

Not available

$

$

Not available

3

Homelite 099723051050

Block (Right)

$

$

Not available

$

$

Not available

5

Homelite 099723051052

Washer (ID15.4 x OD24 x 1.7t )

$

$

Not available

6

Homelite 099723051053

Bearing Plate Assembly (Left)

$

$

Not available

$

$

Not available

8

Homelite 099723051055

Block (Left)

$

$

Not available

$

$

Not available

10

Homelite 099723051057

Front Housing

Note: (Inc. Key No. 11)

$

$

Not available

11

Homelite 099723021008

Chute Logo Label

$

$

Not available

$

$

Not available

13

Homelite 099723051059

Chute Assembly

Note: (Inc. Key No. 14)

$

$

Not available

14

Homelite 940657084

Chute Icon Label

$

$

Not available

15

Homelite 099723051060

Housing Handle

$

$

Not available

$

$

Not available

17

Homelite 099723051063

Gear (Large)

$

$

Not available

$

$

Not available

19

Homelite 099723051067

Circuit Board Assembly

$

$

Not available

20

$

$

Not available

21

Homelite 099723051065

Bearing Plate Assembly (Right)

$

$

Not available

$

$

Not available

23

Homelite 099723051068

Mounting Plate

$

$

Not available

$

$

Not available

25

Homelite 099723051002

Screw (M4.2 x 16 mm)

$

$

Not available

26

Wire Connector

$

$

Not available
