RY 40706 VNM (108695001) - Ryobi 40V Brushless Edger, Rev 01 (2022-02) General Assembly Parts Diagram

40V Brushless Edger, Rev 01

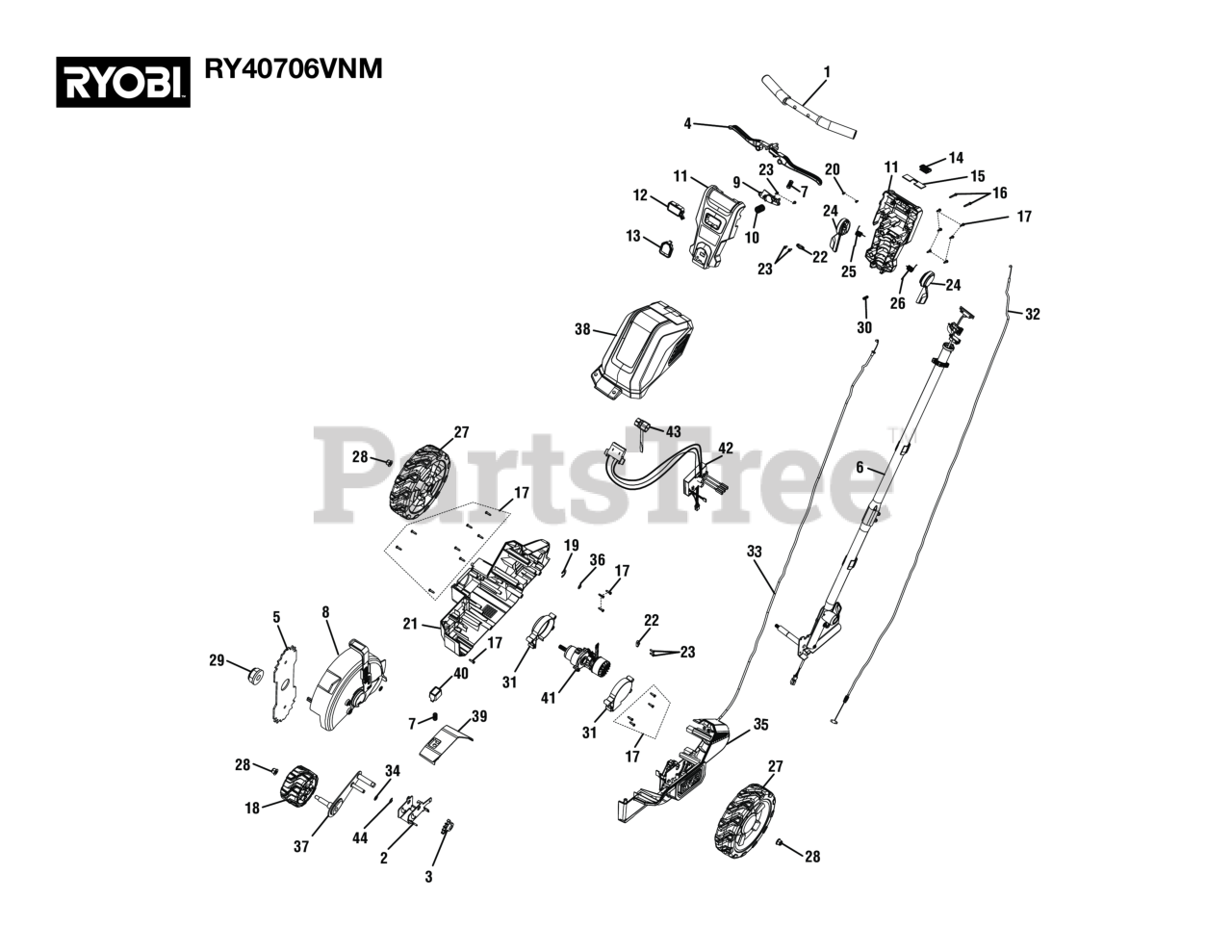

General Assembly Parts Diagram

  • Title

1

Homelite 318295001

Handle Assembly

$28.99

$

Usually ships in 3-7 days

0

2

Homelite 674326001

Front Wheel Adjustor Bracket

$27.99

$

Usually ships in 3-7 days

0

3

Homelite 615148001

Spur Gear

$6.49

$

Usually ships in 3-7 days

0

4

Homelite 205854001

Trigger Assembly

$7.99

$

Usually ships in 3-7 days

0

5

Homelite 638006008

Edger Blade

$

$

Not available

6

Homelite 205856001

Tube Assembly (Inc. Labels)

Note: (Inc. Labels)

$209.99

$

Usually ships in 3-7 days

0

7

Homelite 694218001

Compression Spring

$1.99

$

In Stock, Qty 5

0

8

Homelite 205858001

Blade Guard Assembly

Note: (Inc. Labels & Keys 5 & 29)

$105.99

$

Usually ships in 3-7 days

0

9

Homelite 544726001

Spring Holder

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 694475001

Safety Button Spring

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 205853001

Handle Housing Assembly (Inc. Labels)

Note: (Inc. Labels)

$21.99

$

Usually ships in 3-7 days

0

12

Homelite 544727001

Lock Button

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 205862001

Rotating Handle Button Assembly (Inc. Labels)

Note: (Inc. Labels)

$4.49

$

Usually ships in 3-7 days

0

14

Homelite 532667006

Thumb Pad

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 532680001

Dust Shield

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 660208104

Screw (M4-18 x 30 mm, T15 Torx Soc. Hd.)

$1.99

$

In Stock, only 2 left!

0

17

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

18

Homelite 318373001

Front Wheel Assembly

$12.99

$

Usually ships in 3-7 days

0

19

Homelite 674333001

E-Ring

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$1.99

$

In Stock, only 4 left!

0

21

Homelite 205861001

Right Base Housing Assembly (Inc. Labels)

Note: (Inc. Labels)

$20.99

$

Usually ships in 3-7 days

0

22

Homelite 523001003

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 661824001

ST SCREW BH BM X 10

$

$

Not available

24

Homelite 544728001

Height Adjustment Lever

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 699824001

Lever Spring (Right)

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 683072001

Lever Spring (Left)

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 318372001

8 in. Rear Wheel Assembly

$20.99

$

Usually ships in 3-7 days

0

28

Homelite 678774012

Flange Lock Nut (M8 x 1.25 mm)

$1.99

$

In Stock, only 2 left!

0

29

Homelite 674439001

Flange Nut (M8)

$2.99

$

Usually ships in 3-7 days

0

30

Homelite 696008001

Spring

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 205855001

Motor Volute Assembly

$6.99

$

Usually ships in 3-7 days

0

32

Homelite 790065001

Cable (Front Wheel Adjustor)

$13.99

$

Usually ships in 3-7 days

0

33

Homelite 790064001

Cable (Rear Wheel Height Adjustor)

$12.99

$

Usually ships in 3-7 days

0

34

Homelite 631968002

Washer

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 318306001

Left Bottom Base Housing Assembly

Note: (Inc. Key No. 33)

$136.99

$

Usually ships in 3-7 days

0

36

Homelite 671103001

RING, RETAINING
(Superseded to 08981)

$4.99

$

In Stock, only 1 left!

0

37

Homelite 674325001

Front Wheel Height Adjustment Plate

$64.99

$

Usually ships in 3-7 days

0

38

Homelite 205860001

Upper Housing Assembly (Inc. Label)

$46.99

$

Usually ships in 3-7 days

0

39

Homelite 544740001

Button Cover

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 205859001

Blade Lock Button Assembly (Inc. Labels)

$13.99

$

Usually ships in 3-7 days

0

41

Homelite 318299001

Motor Assembly

$272.99

$

Usually ships in 3-7 days

0

42

Homelite 205857001

Motor Controller Assembly

$192.99

$

Usually ships in 3-7 days

0

43

Homelite 308369001

Combination Wrench

$6.99

$

Usually ships in 3-7 days

0

Homelite 998000737

Operator's Manual

Note: Not shown

$

$

Currently unavailable
