RY 40701 VNM (108630001) - Ryobi 40V Brushless Hole Auger, Rev 03 (2022-01) FIGURE B Parts Diagram

40V Brushless Hole Auger, Rev 03

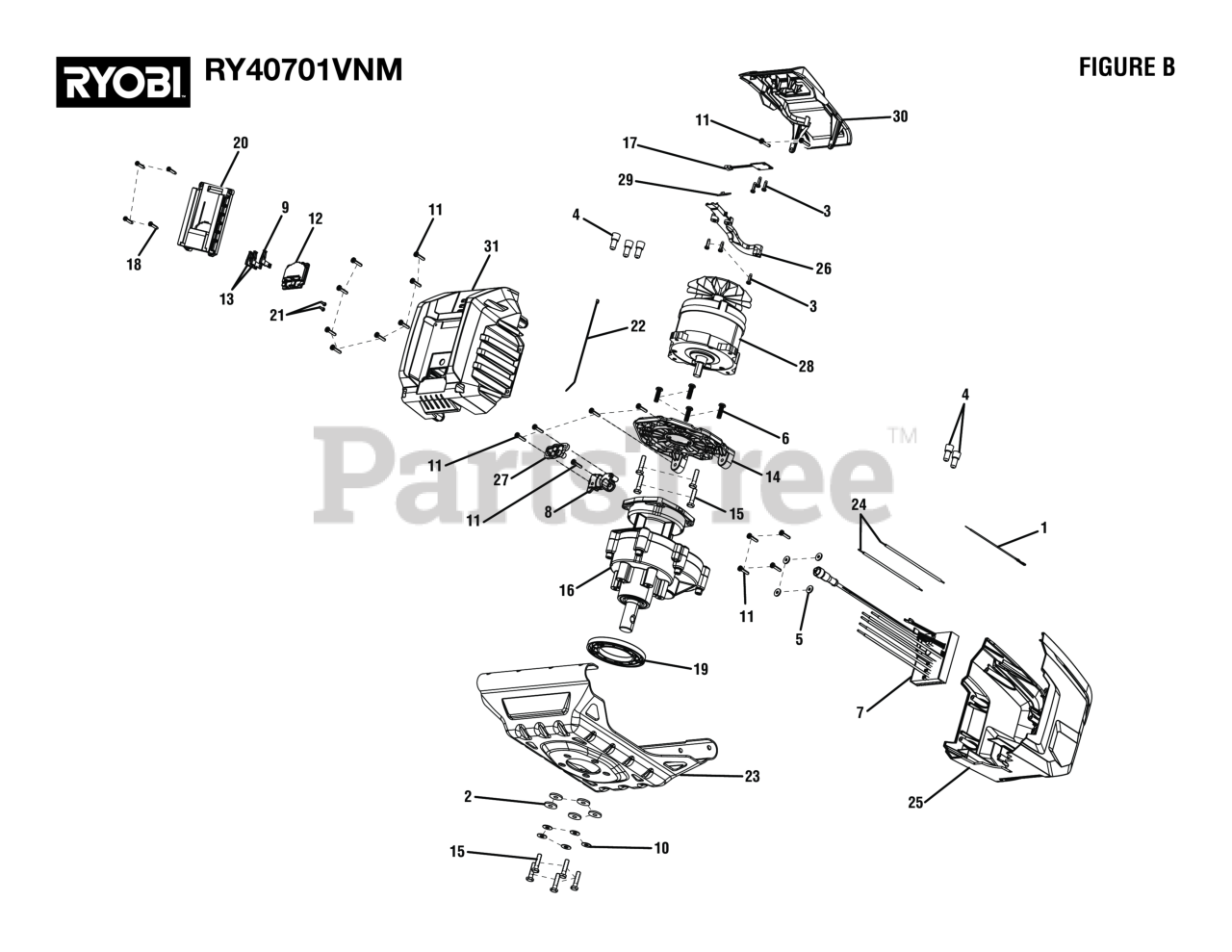

FIGURE B Parts Diagram

  • Title

1

Homelite 292273001

Wire Assembly

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 542043001

Isolation Bushing

$1.99

$

Usually ships in 0 days

0

3

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

4

Homelite 870601002

Close-End Connector

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 678125001

Washer (ID 4.3 x OD12 x 1.5t)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 660697002

Screw (M6 x 20 mm, T27 Torx Button Hd.)

$1.99

$

In Stock, only 1 left!

0

7

Homelite 281020006

Motor Controller

$228.99

$

Usually ships in 0 days

0

8

Homelite 542135001

Cable Strain Relief Base

$

$

Currently unavailable

9

Homelite 658139002

Battery Connection Terminal

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 638557001

Washer (ID6.2 x OD15 x 0.08t)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 660466001

Screw (M4 x 18 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, Qty 7

0

12

Homelite 532760002

Common Foot Cover

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 658139001

Battery Connection Terminal

$3.49

$

Usually ships in 3-7 days

0

14

Homelite 542091001

Motor Mounting Bracket

$

$

Currently unavailable

15

Homelite 660722002

Bolt (M6 x 26 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 220709001

Gear Box

$303.99

$

Usually ships in 3-7 days

0

17

Homelite 281170001

Gyro Circuit Board Assembly

$

$

Not available

18

Homelite 662028001

Screw (M4 x 16 mm, T20 Torx Socket Pan Hd.)

$

$

Currently unavailable

19

Homelite 542044001

Isolation Ring

$2.49

$

Usually ships in 0 days

0

20

Homelite 535110004

Battery Foot Adapter

$4.49

$

Usually ships in 3-7 days

0

21

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$1.99

$

In Stock, only 4 left!

0

22

Homelite 790003001

Cable Tie

$

$

Currently unavailable

23

Homelite 659593001

Base Plate

$

$

Currently unavailable

24

Homelite 292249001

Wire Assembly

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 542024001

Front Housing

$

$

Currently unavailable

26

Homelite 542137001

Wire Retainer

$

$

Currently unavailable

27

Homelite 542134001

Cable Strain Relief Top

$

$

Currently unavailable

28

Homelite 742710001

Motor

$401.99

$

Usually ships in 0 days

0

29

Homelite 281208003

Circuit Board LED

$6.49

$

Usually ships in 3-7 days

0

30

Homelite 542026001

Top Housing

$

$

Currently unavailable

31

Homelite 542025001

Rear Housing

$

$

Currently unavailable
