RY 40606 VNM (108795001) - Ryobi 40V Hedge Trimmer, Rev 01 (2022-04) General Assembly Parts Diagram

40V Hedge Trimmer, Rev 01

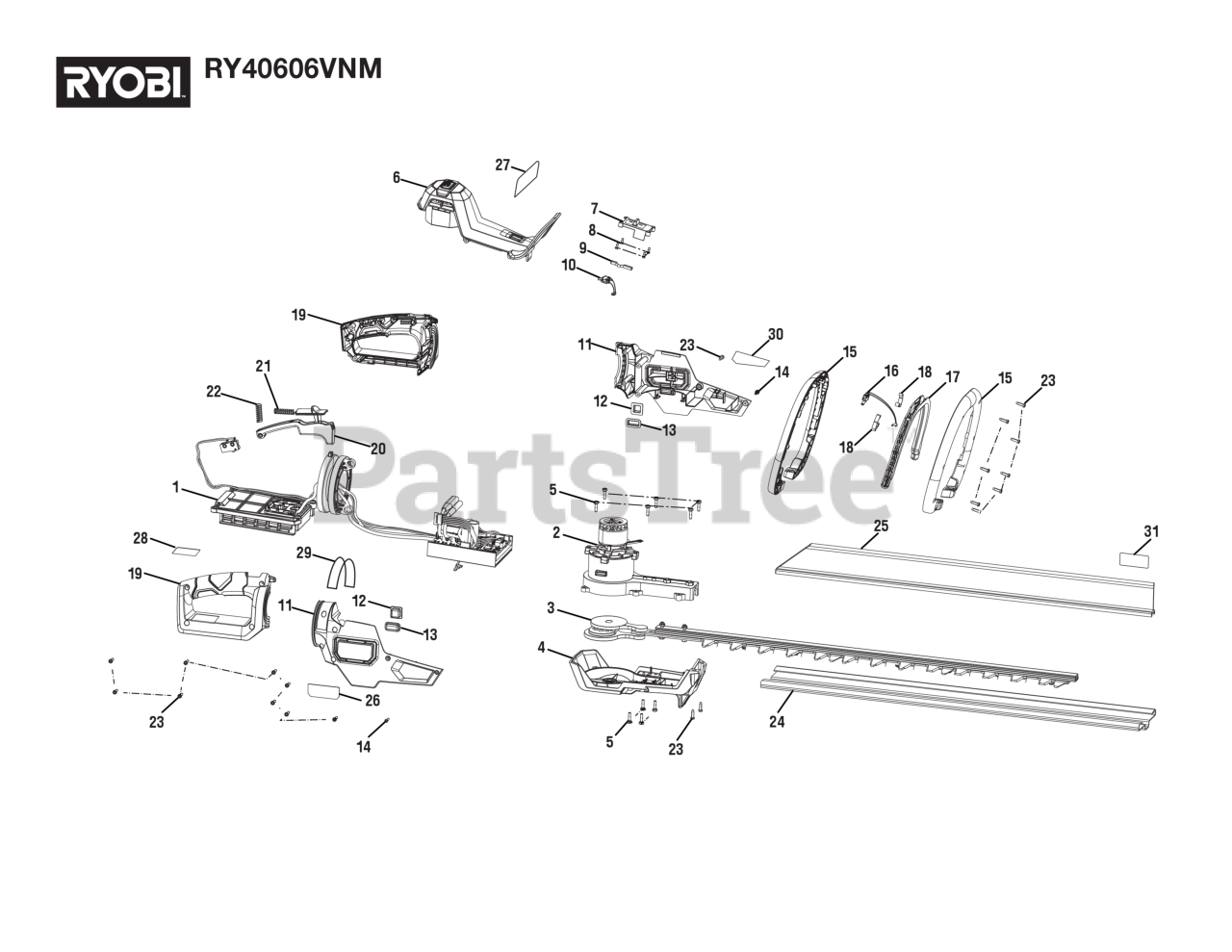

General Assembly Parts Diagram

  • Title

1

Homelite 319292001

Battery Foot and Rear Switch Assembly

$188.99

$

Usually ships in 3-7 days

0

2

Homelite 319293001

Motor and Gear Box Assembly

$348.99

$

Usually ships in 3-7 days

0

3

Homelite 205975001

Blade Assembly

$967.99

$

Usually ships in 3-7 days

0

4

Homelite 205977001

Gearbox Cover Assembly

$78.99

$

Usually ships in 3-7 days

0

5

Homelite 662175003

Screw, T25, M4X0.7, Low Carbon Steel

$

$

Not available

6

Homelite 205976001

Motor Cover Assembly

Note: (Inc Key No. 27)

$28.99

$

Usually ships in 3-7 days

0

7

Homelite 319288001

Speed Button Assembly

$5.49

$

Usually ships in 3-7 days

0

8

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$1.99

$

In Stock, only 4 left!

0

9

Homelite 656849001

Spring Plate

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 319298001

Speed Switch Assembly

$6.49

$

Usually ships in 0 days

0

11

Homelite 205974001

Motor Housing Assembly

Note: (Inc Key Nos. 26 &29-30)

$21.99

$

Usually ships in 3-7 days

0

12

Homelite 566744001

Rubber Plate

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 566745001

Rubber Plate

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 660203087

Screw (M3 x 12 mm)

$

$

Not available

15

Homelite 318558001

Front Handle Cover Assembly

$15.99

$

Usually ships in 3-7 days

0

16

Homelite 319299001

Front Handle Switch Assembly

$8.49

$

Usually ships in 0 days

0

17

Homelite 545441001

Front Handle Trigger

$4.99

$

Usually ships in 3-7 days

0

18

Homelite 639885001

Spring Plate

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 205977002

Rear Handle Assembly

Note: (Inc Key No. 28)

$16.99

$

Usually ships in 3-7 days

0

20

Homelite 318556001

Lock-Off Button Spring

$6.49

$

Usually ships in 3-7 days

0

21

Homelite 679055012

Lock-Off Button Spring

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 679055014

Trigger Spring

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

24

Homelite 535555001

Scabbard

$10.99

$

Usually ships in 3-7 days

0

25

Homelite 205973001

Hedge Sweep Assembly

Note: (Inc Key No. 31)

$14.99

$

Usually ships in 3-7 days

0

26

Homelite 941097088

Data Label

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 941097089

Icon/Danger/Warning Label

$

$

Not available

28

Homelite 941097090

QR Label

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 941097091

Rotating Handle Label

$

$

Not available

30

Homelite 941097092

Warning Label

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 941769001

Warning Label

$

$

Not available

Homelite 998000682

Operator's Manual

$

$

Currently unavailable
