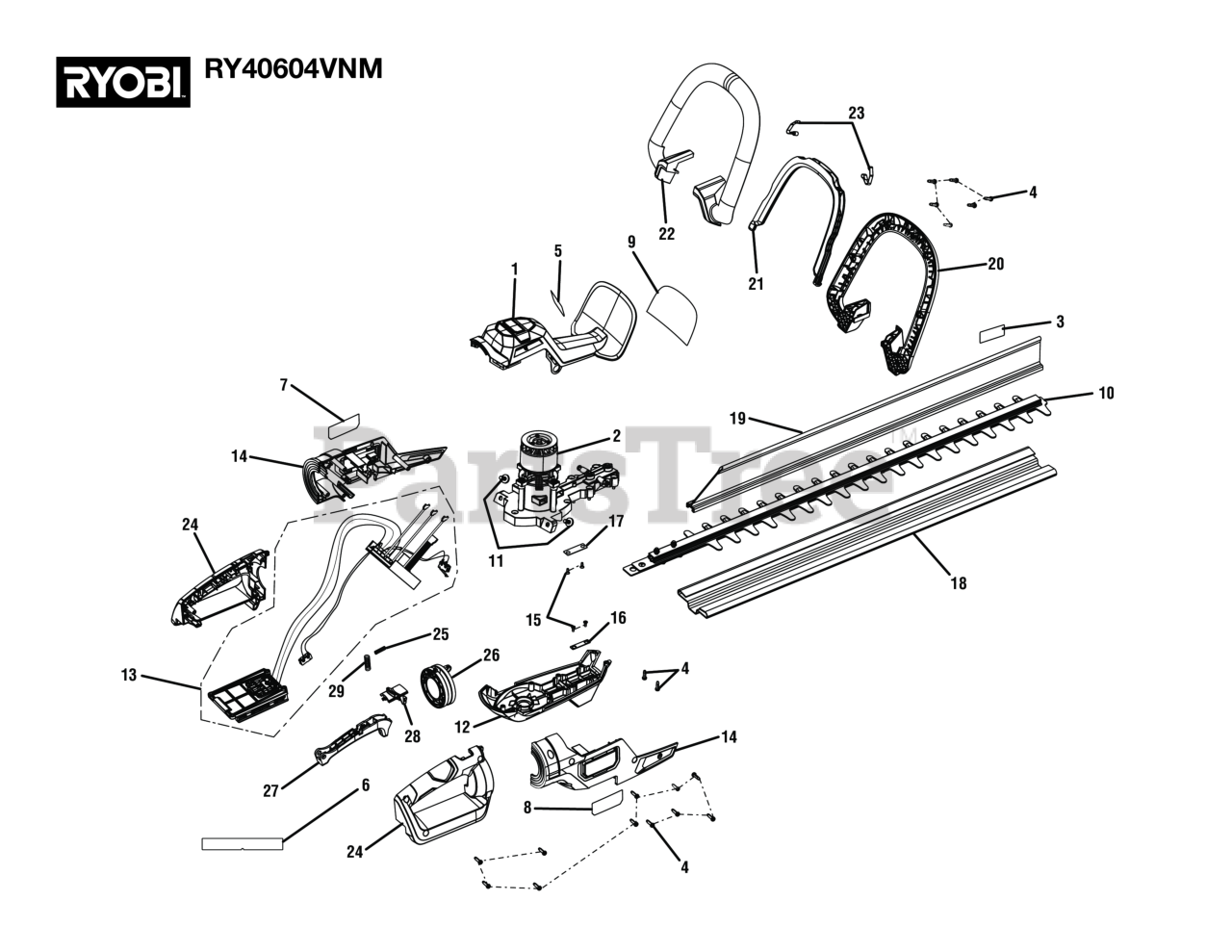

RY 40604 VNM (108617001) - Ryobi 40V Hedge Trimmer, Rev 04 (2022-01) General Assembly Parts Diagram

40V Hedge Trimmer, Rev 04

General Assembly Parts Diagram

  • Title

1

Homelite 317257001

Top Cover Assembly (Inc. Key Nos. 5 & 9)

Note: (Inc. Key Nos. 5 & 9)

$15.99

$

Usually ships in 3-7 days

0

2

Homelite 317261001

Motor and Gear Box Assembly

$317.99

$

Usually ships in 3-7 days

0

3

Homelite 941769001

Warning Label

$

$

Not available

4

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

5

Homelite 941588781

40V HP Brushless Label

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 941588782

Rotating Handle Label

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 941588783

40V HP Logo Label

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 941588784

Data Label

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 941588785

Icons Warning Label

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 316865002

Blade Assembly

$106.99

$

Usually ships in 3-7 days

0

11

Homelite 660299021

Screw (M5 x 13 mm, Pan Hd.)

$

$

Currently unavailable

12

Homelite 542259001

Bottom Housing

$20.99

$

Usually ships in 3-7 days

0

13

Homelite 317260001

Battery Foot and Switches Assembly

$192.99

$

Usually ships in 3-7 days

0

14

Homelite 317258001

Motor Housing Assembly (Inc. Key Nos. 6-8)

Note: (Inc. Key Nos. 6-8)

$16.99

$

Usually ships in 3-7 days

0

15

Homelite 660204004

Screw (M3 x 8 mm, Flat Hd.)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 635609001

Flat Washer

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 635610001

Flat Washer

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 525406008

Scabbard

$7.49

$

Usually ships in 3-7 days

0

19

Homelite 317256001

Hedge Sweep Assembly (Inc. Key No. 3)

Note: (Inc. Key No. 3)

$13.99

$

Usually ships in 3-7 days

0

20

Homelite 542261001

Assist Handle Front Half

$7.99

$

Usually ships in 3-7 days

0

21

Homelite 542266001

Assist Handle Safety Trigger

$3.49

$

Usually ships in 3-7 days

0

22

Homelite 542260001

Assist Handle Rear Half

$7.49

$

Usually ships in 3-7 days

0

23

Homelite 639885001

Spring Plate

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 317259001

Rear Handle Assembly

$13.99

$

Usually ships in 3-7 days

0

25

Homelite 679055012

Lock-Off Button Spring

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 542262001

Disk

$3.49

$

Usually ships in 3-7 days

0

27

Homelite 542263001

Trigger

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 542265001

Lock-out Slider

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 679055014

Trigger Spring

$1.99

$

Usually ships in 3-7 days

0

Homelite 998000364

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
