RY 40603 VNM (107443101) - Ryobi 40V Pole Hedge Trimmer, Rev 07 (2022-11) POWER HEAD Parts Diagram

40V Pole Hedge Trimmer, Rev 07

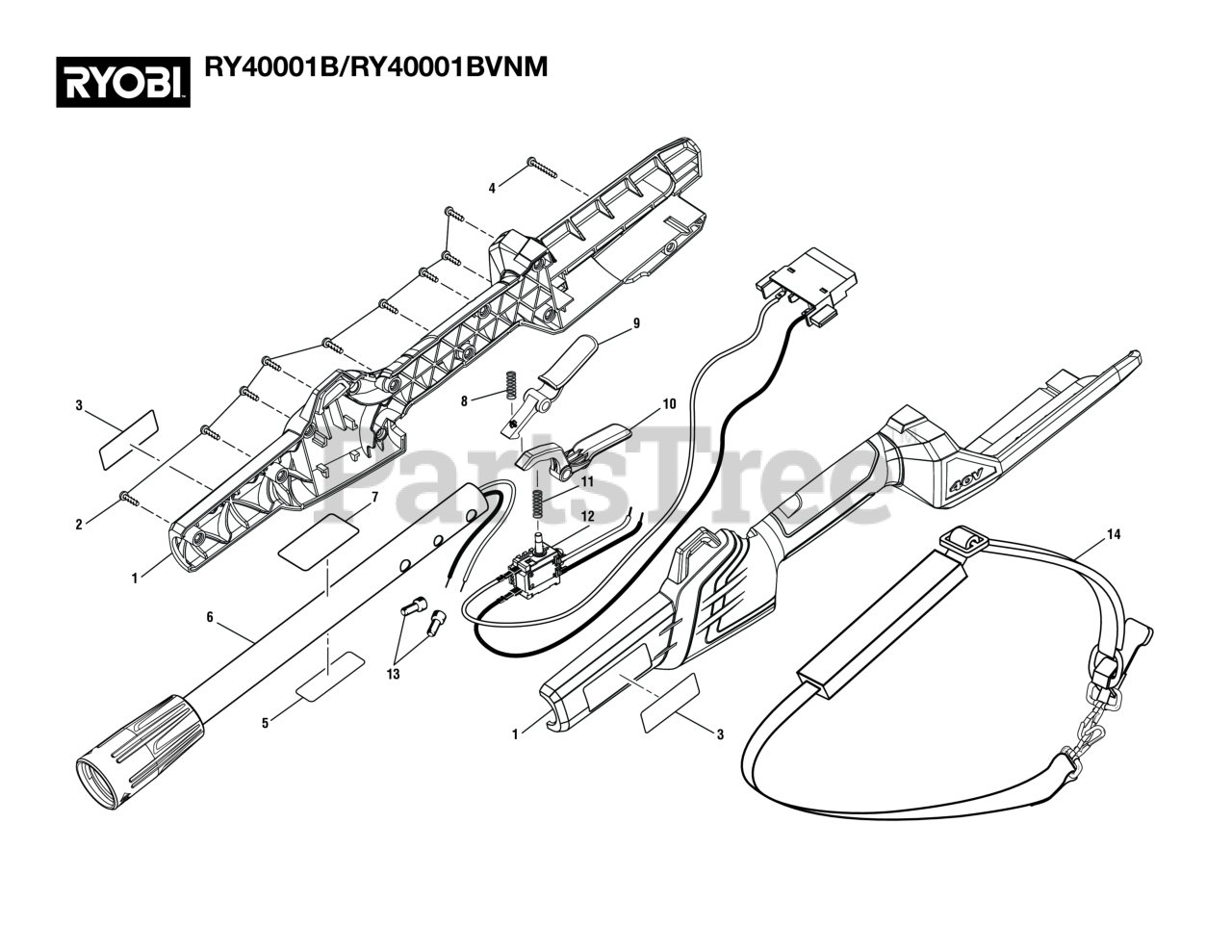

POWER HEAD Parts Diagram

  • Title

1

Homelite 314756001

Rear Handle Assembly (Inc. Key No. 3)

Note: (Inc. Key No. 3)

$25.99

$

Usually ships in 3-7 days

0

2

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

3

Homelite 941545002

Logo Label

$

$

Not available

4

Homelite 660208104

Screw (M4-18 x 30 mm, T15 Torx Soc. Hd.)

$1.99

$

In Stock, only 2 left!

0

5

Homelite 941588614

Data Label

Note: (RY40001BVNM)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 316350001

Upper Tube Assembly

Note: (Inc. Key Nos. 5 and 7, RY40001BVNM)

$31.99

$

Usually ships in 3-7 days

0

7

Homelite 941851103

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 679973002

Compression Spring (Trigger)

$1.99

$

In Stock, only 3 left!

0

9

Homelite 525589001

Lock Off Button (Trigger Lock)

$1.99

$

In Stock, only 3 left!

0

10

Homelite 525590001

Switch Trigger

$1.99

$

In Stock, only 2 left!

0

11

Homelite 679973001

Compression Spring (Trigger)

$1.99

$

In Stock, Qty 5

0

12

Homelite 291452004

Switch and Contact Plate Assembly

$41.99

$

Usually ships in 0 days

0

13

Homelite 790009004

Wire Connector (Closed End)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 308047001

Shoulder Strap Assembly
(Superseded to 983961001)

Note: Not Shown

$

$

Not available
