RY 40602 (107273001) - Ryobi 40V Hedge Trimmer, Rev 08 (2022-06) General Assembly Parts Diagram

40V Hedge Trimmer, Rev 08

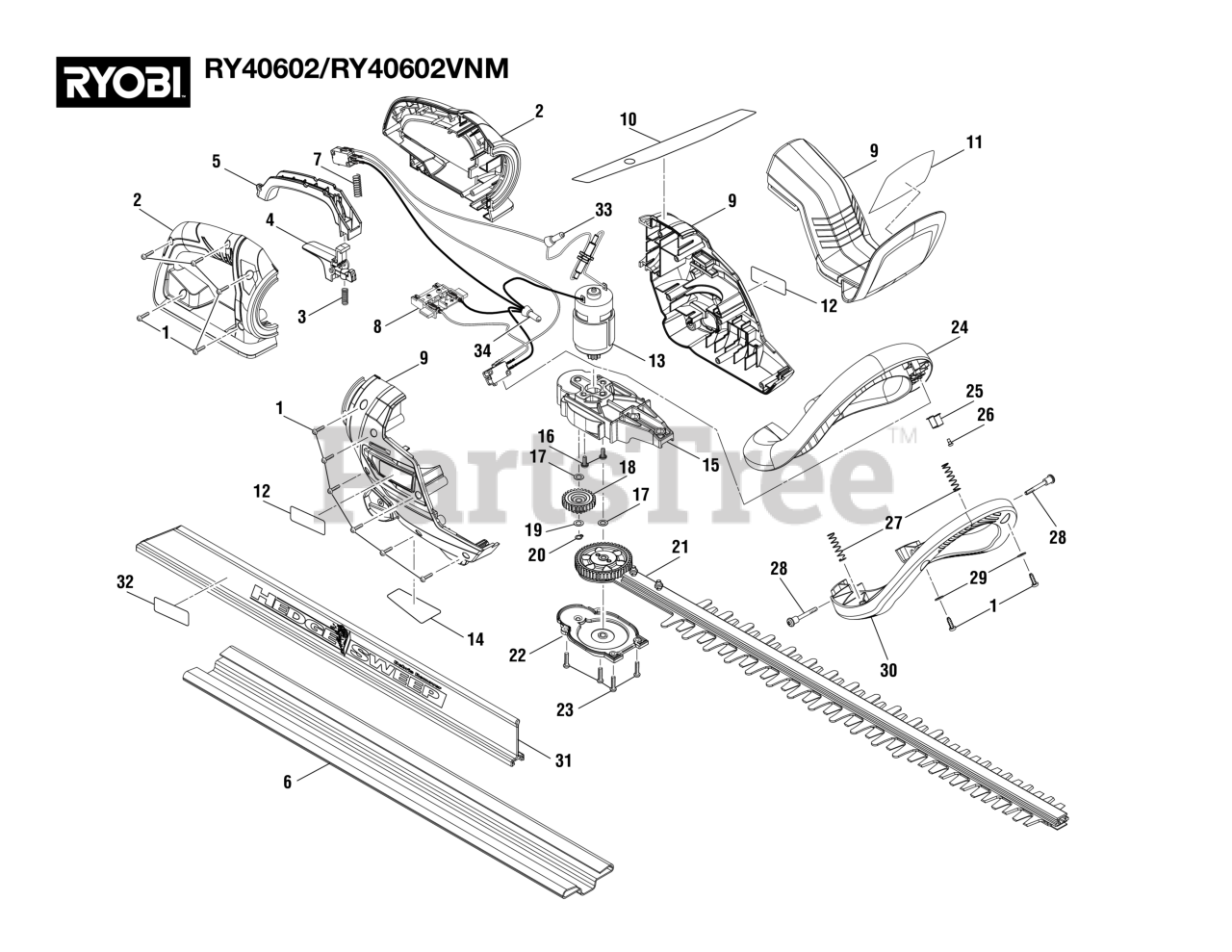

General Assembly Parts Diagram

  • Title

1

Homelite 661817002

Screw (M4 x 13.5 mm, T15 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 205095001

Motor Housing Assembly (Inc. Key Nos. 10-12 & 14)

$16.99

$

In Stock, only 2 left!

0

3

Homelite 695164001

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 311716001

Lock-off Trigger Assembly

$6.99

$

Usually ships in 3-7 days

0

5

Homelite 529765003

Trigger

$2.99

$

Usually ships in 0 days

0

6

Homelite 528341001

Scabbard, PP

$6.99

$

Usually ships in 3-7 days

0

7

Homelite 679055008

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 205100001

Switch and Contact Plate Assembly

Note: (Inc. Key Nos. 13 & 33-34)

$113.99

$

Usually ships in 3-7 days

0

9

Homelite 205094001

Rear Handle Assembly

Note: (Inc. Key Nos. 10-12 & 14, RY40602)

$25.99

$

Usually ships in 3-7 days

0

10

Homelite 940851648

Angle Adjustment Label

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 941589006

Warning Label

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 940705517

Logo Label

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 205099001

Motor Assembly

$68.99

$

Usually ships in 3-7 days

0

14

Homelite 941589007

Data Label

Note: (RY40602)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 535298001

Gear Case

$21.99

$

Usually ships in 3-7 days

0

16

Homelite 660137001

Screw w/Tooth Washer (M4 x 12 mm, Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

17

Homelite 670914001

Washer (M6, ID6.2 x 11OD x 0.3t)

$

$

Currently unavailable

18

Homelite 312379001

Middle Gear Assembly

$10.99

$

Usually ships in 3-7 days

0

19

Homelite 638623005

Flat Washer (OD10 x ID5.3 x 0.5t)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 679048001

Retaing Ring

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 205096001

Blade Assembly (24 in.)

$101.99

$

Usually ships in 3-7 days

0

22

Homelite 535297001

Gear Case Cover

$7.49

$

Usually ships in 3-7 days

0

23

Homelite 660208052

Screw (M4 x 16 mm, Pan Hd.)
(Superseded to 089041033087)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 526800001

Front Handle

$10.99

$

Usually ships in 3-7 days

0

25

Homelite 639109001

Switch Board, SPCC, Black Zinc Plated

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 660203073

SCREW, CH M3 PH B\L=6MM

$0.94

$

Usually ships in 3-7 days

0

27

Homelite 679055009

Spring,Handle Cover, Dia. 7, SWC

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 660137014

Screw (M4 x 38 mm, T20 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 690969001

Flat Washer (OD10 x ID42 x 1t)

$1.99

$

In Stock, Qty 5

0

30

Homelite 526801001

Front Handle Cover

$6.99

$

Usually ships in 3-7 days

0

31

Homelite 205101001

Hedge Sweep (Inc. Key No. 32)

Note: (Inc. Key No. 32)

$11.99

$

Usually ships in 3-7 days

0

32

Homelite 941769001

Warning Label

$

$

Not available

33

Homelite 790009004

Wire Connector (Closed End)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 790021001

Wire Connector (Closed End)

$1.99

$

Usually ships in 3-7 days

0

Homelite 995000583

Operator's Manual

Note: Not Shown

$

$

Not available
