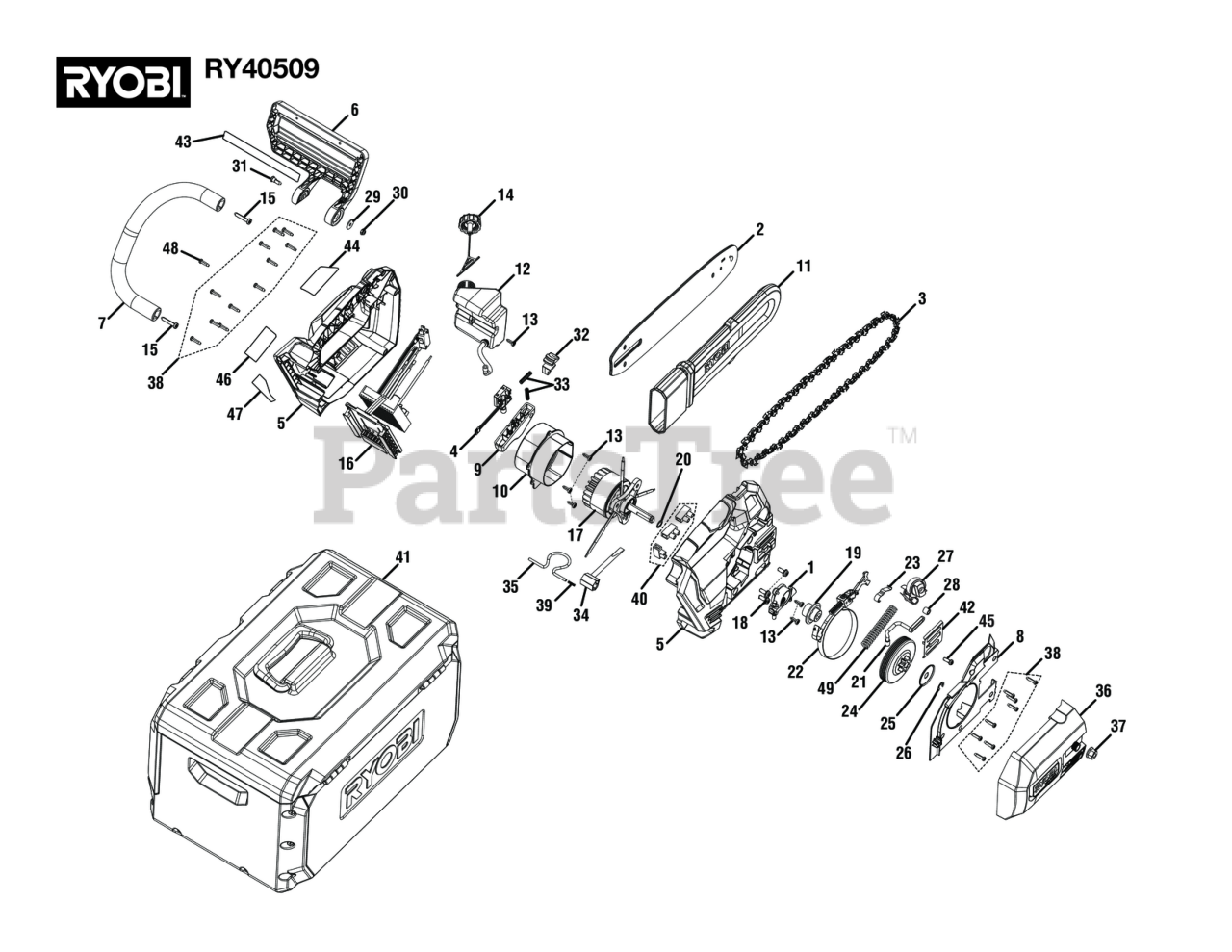

RY 40509 (107895001) - Ryobi 12" 40V Chainsaw, Rev 01 (2021-12) General Assembly Parts Diagram

12" 40V Chainsaw, Rev 01

General Assembly Parts Diagram

  • Title

1

Homelite 309516004

Oil Pump Assembly

$12.99

$

Usually ships in 3-7 days

0

2

Homelite 682456002

12 in. Bar

$37.99

$

Usually ships in 0 days

0

3

Homelite 678928001

Chain (12 in.)

$31.99

$

In Stock, only 2 left!

0

4

Homelite 760652002

Variable Switch

$19.99

$

Usually ships in 0 days

0

5

Homelite 205697001

Housing Assembly (Inc. Key Nos. 44 & 46-47)

Note: (Inc. Key Nos. 44 & 46-47)

$52.99

$

Usually ships in 0 days

0

6

Homelite 205698001

Front Guard Assembly (Inc. Key No. 43)

Note: (Inc. Key No. 43)

$9.99

$

Usually ships in 3-7 days

0

7

Homelite 544797001

Front Handle

$6.99

$

Usually ships in 3-7 days

0

8

Homelite 544798001

Brake Mechanism Cover

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 544799001

Trigger

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 544800001

Motor Volute

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 580968001

Scabbard

$8.49

$

Usually ships in 3-7 days

0

12

Homelite 318415001

Oil Tank Assembly

$17.99

$

Usually ships in 3-7 days

0

13

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

14

Homelite 205699001

Oil Tank Cap Assembly

$3.99

$

Usually ships in 3-7 days

0

15

Homelite 662053002

Screw (M5 x 25 mm, T25 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 205700001

Motor Controller, Switch, and Battery Connector Assembly

$

$

Currently unavailable

17

Homelite 742807001

Motor

$346.99

$

Usually ships in 3-7 days

0

18

Homelite 662052002

Screw, T25, M5X8, Steel, Black ZincePlat

$

$

Not available

19

Homelite 537485001

Oil Pump Drive

$2.99

$

In Stock, only 3 left!

0

20

Homelite 658198001

Washer

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 565069001

Oil Output Tube

$3.49

$

In Stock, only 2 left!

0

22

Homelite 205298001

Brake Band Assembly

$4.49

$

Usually ships in 3-7 days

0

23

Homelite 678061001

Spring

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 612309002

Sprocket w/ Drum

$

$

Not available

25

Homelite 635367001

Washer (Special)

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 636159001

E-Ring

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 205299001

Chain Brake Assembly

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 678602001

Hand Guard Insert

$1.99

$

In Stock, only 4 left!

0

29

Homelite 638988001

Washer (ID5.2 x OD16 x 1.5t)

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 670682002

Nut

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 662113001

Screw (M5 x 15 mm, T25 Torx Hd.)

$

$

Currently unavailable

32

Homelite 544847002

Trigger Lock-Out

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 694143001

Compression Spring (Trigger Lock)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 612330001

Wrench

$5.99

$

Usually ships in 3-7 days

0

35

Homelite 699850001

Hook Spring

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 205701001

Sprocket Cover and Chain Tension Assembly

$24.99

$

Usually ships in 3-7 days

0

37

Homelite 678339003

Hex Nut (5/16-18 Flange)

$1.99

$

In Stock, only 2 left!

0

38

Homelite 662028001

Screw (M4 x 16 mm, T20 Torx Socket Pan Hd.)

$

$

Currently unavailable

39

Homelite 695984002

Metal Loop Spring

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 900876003

Terminal Block w/Screw

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 318540001

Carry Case

$116.99

$

Usually ships in 3-7 days

0

42

Homelite 674347001

Guide Bar Plate

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 941588994

Icons Label

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 941588995

Warning Danger Label

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 662083001

Screw, M4-18 x 12mm, T20 Torx Pan Head

$1.99

$

In Stock, only 1 left!

0

46

Homelite 941588997

Data Label

$1.99

$

Usually ships in 3-7 days

0

47

Homelite 941588998

QR Label

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

49

Homelite 694415001

Spring

$1.99

$

Usually ships in 0 days

0

Homelite 998000684

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
