RY 40508 (107404001) - Ryobi 18" 40V Chainsaw, Rev 01 (2020-10) GENERAL ASSEMBLY Parts Diagram

18" 40V Chainsaw, Rev 01

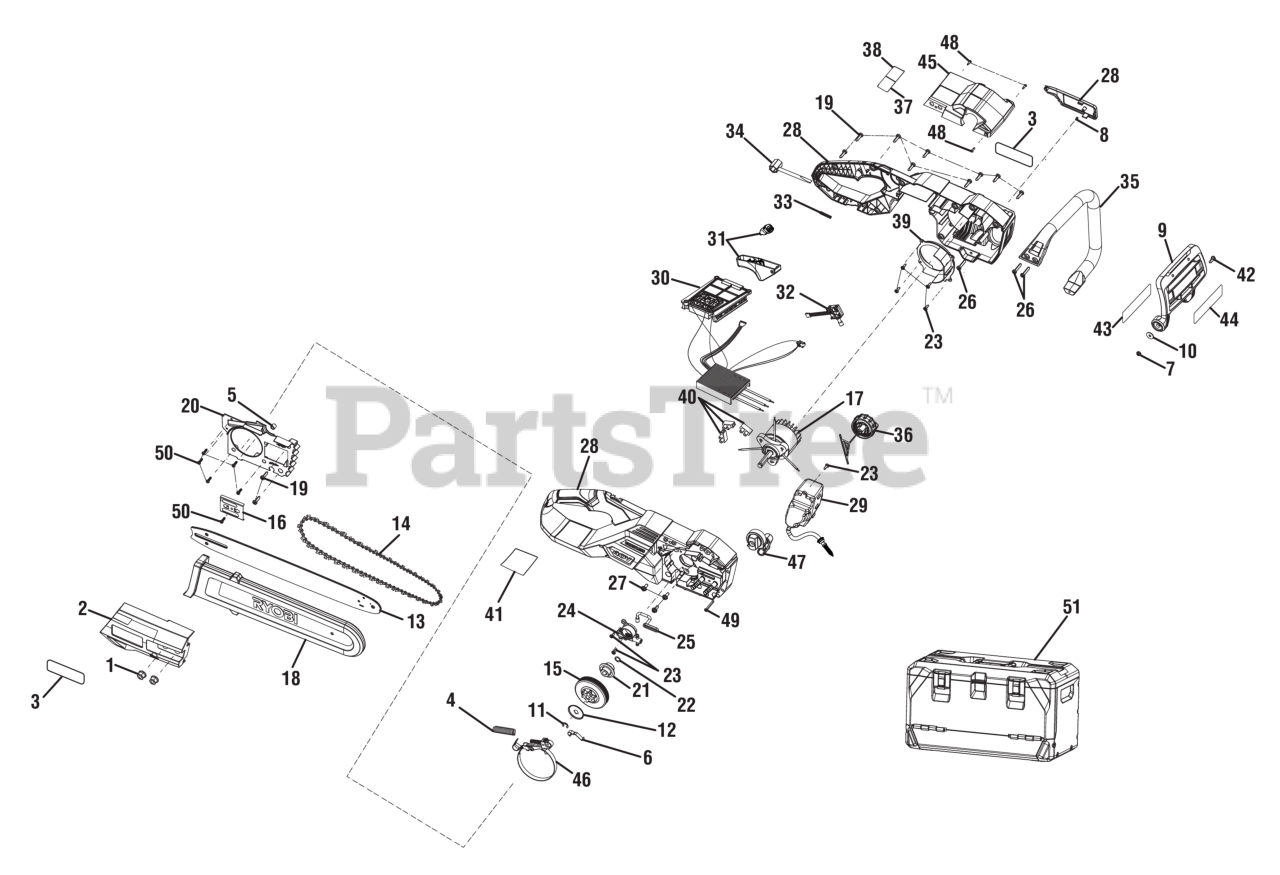

GENERAL ASSEMBLY Parts Diagram

  • Title

1

Homelite 678339003

Hex Nut (5/16-18 Flange)

$1.99

$

In Stock, only 2 left!

0

2

Homelite 317374001

Sprocket Cover Assembly (Inc. Key No. 3)

$

$

Not available

3

Homelite 941588805

HP Logo Label

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 694415001

Spring

$1.99

$

Usually ships in 0 days

0

5

Homelite 678602001

Hand Guard Insert

$1.99

$

In Stock, only 4 left!

0

6

Homelite 678061001

Spring

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 670682002

Nut

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$1.99

$

In Stock, only 4 left!

0

9

Homelite 205442001

Guard Assembly (Inc. Key Nos. 43-44)

$8.49

$

Usually ships in 3-7 days

0

10

Homelite 638988001

Washer (ID5.2 x OD16 x 1.5t)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 636159001

E-Ring

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 635367001

Washer (Special)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 317105001

Bar (18 in.)

$52.99

$

Usually ships in 3-7 days

0

14

Homelite 682309001

Chain (18 in.)

$37.99

$

Usually ships in 3-7 days

0

15

Homelite 612309002

Sprocket w/ Drum

$

$

Not available

16

Homelite 658993001

Guide Bar Plate Assembly

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 742666001

Motor

$354.99

$

Usually ships in 3-7 days

0

18

Homelite 580798001

Scabbard

$8.99

$

Usually ships in 3-7 days

0

19

Homelite 662051001

Screw (T20 x 15 mm)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 539604001

Cover Housing

$2.99

$

Usually ships in 3-7 days

0

21

Homelite 537485001

Oil Pump Drive

$2.99

$

In Stock, only 3 left!

0

22

Homelite 658198001

Washer

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

24

Homelite 309516002

Oil Pump

$10.99

$

Usually ships in 3-7 days

0

25

Homelite 565069001

Oil Output Tube

$3.49

$

In Stock, only 2 left!

0

26

Homelite 662053002

Screw (M5 x 25 mm, T25 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 662052002

Screw, T25, M5X8, Steel, Black ZincePlat

$

$

Not available

28

Homelite 205443001

Housing Assembly (Inc. Key Nos. 3 & 41)

$43.99

$

Usually ships in 3-7 days

0

29

Homelite 205300001

Oil Tank Assembly

$16.99

$

Usually ships in 3-7 days

0

30

Homelite 315960001

Motor Controller, Switch & Battery Connector Assembly

$212.99

$

Usually ships in 3-7 days

0

31

Homelite 205297001

Switch Trigger & Lock Out Button Assembly

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 760652001

Switch

$17.99

$

Usually ships in 3-7 days

0

33

Homelite 694143001

Compression Spring (Trigger Lock)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 612330001

Wrench

$5.99

$

Usually ships in 3-7 days

0

35

Homelite 539603001

Front Handle

$12.99

$

Usually ships in 3-7 days

0

36

Homelite 306888005

Oil Tank Cap Assembly

$10.99

$

Usually ships in 3-7 days

0

37

Homelite 941588811

Icon Label (Right)

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 941588810

Icon Label (Left)

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 539608001

Volute Cover

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 900876003

Terminal Block w/Screw

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 941588804

Data Label

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 662113001

Screw (M5 x 15 mm, T25 Torx Hd.)

$

$

Currently unavailable

43

Homelite 941588809

Warning Label

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 941588806

40V Brushless Logo Label

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 205444001

Top Cover Assembly (Inc. Key Nos. 37-38)

$2.49

$

Usually ships in 3-7 days

0

46

Homelite 205298001

Brake Band Assembly

$4.49

$

Usually ships in 3-7 days

0

47

Homelite 205299001

Chain Brake Assembly

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 660005006

Screw (M3 x 10 mm)

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 660208104

Screw (M4-18 x 30 mm, T15 Torx Soc. Hd.)

$1.99

$

In Stock, only 2 left!

0

50

Homelite 662083002

Screw, T20, M4-18X12, Low Carbon Steel,
(Superseded to 662083001)

$1.99

$

In Stock, only 1 left!

0

51

Homelite 317108001

Carry Box

$80.99

$

Usually ships in 3-7 days

0

Homelite 998000358

Operator's Manual

Note: Not Shown

$

$

Not available
