RY 40507 (107587001) - Ryobi 10" 40V Chainsaw, Rev 01 (2021-02) General Assembly Parts Diagram

10" 40V Chainsaw, Rev 01

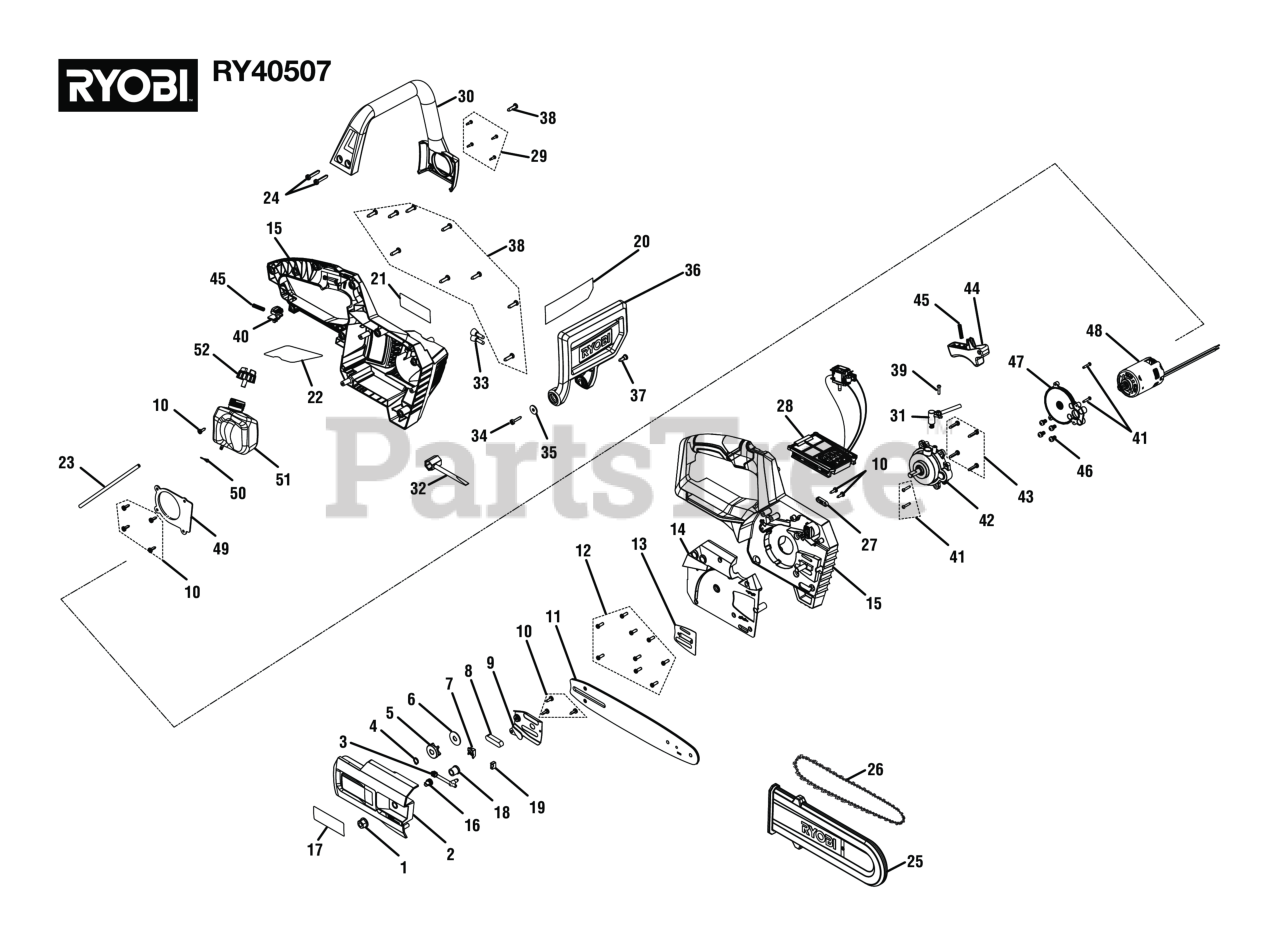

General Assembly Parts Diagram

  • Title

1

Homelite 678339003

Hex Nut (5/16-18 Flange)

$1.99

$

In Stock, only 2 left!

0

2

Homelite 205499001

Sprocket Cover Assembly (Inc. Key No. 17)

Note: (Inc. Key No. 17)

$

$

Not available

3

Homelite 315118004

Adjust Screw Assembly

$5.49

$

In Stock, only 2 left!

0

4

Homelite 670608002

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

5

Homelite 610323001

Sprocket

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 690733001

Cover Plate (Internal "D" Washer)

$1.99

$

In Stock, Qty 8

0

7

Homelite 541544001

Big Pressure Plate

$1.99

$

In Stock, only 4 left!

0

8

Homelite 563443001

Rubber Plate

$1.99

$

In Stock, only 1 left!

0

9

Homelite 674195001

Guide Plate

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

11

Homelite 316668001

Guide Bar

$34.99

$

Usually ships in 3-7 days

0

12

Homelite 662083001

Screw, M4-18 x 12mm, T20 Torx Pan Head

$1.99

$

In Stock, only 1 left!

0

13

Homelite 674186001

Guide Bar Plate

$1.99

$

In Stock, only 2 left!

0

14

Homelite 542650001

Brake Band Cover

$4.49

$

Usually ships in 3-7 days

0

15

Homelite 205497001

Housing Assembly (Inc. Key No. 21-22)

Note: (Inc. Key No. 21-22)

$28.99

$

Usually ships in 3-7 days

0

16

Homelite 610624004

Bar Adjust Gear

$2.99

$

In Stock, only 2 left!

0

17

Homelite 940705496

Logo Label

$1.99

$

Usually ships in 0 days

0

18

Homelite 613270001

Sprocket Cover Bushing

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 541509001

Small Pressure Plate

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 941588842

Icon Label

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 941588839

40V Label

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 941588840

Data Label

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 565965001

Oil Tube

$

$

Not available

24

Homelite 662053001

Screw (T20 x 20 mm)

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 580790001

Scabbard

$6.99

$

Usually ships in 3-7 days

0

26

Homelite 682115001

Chain

$23.99

$

In Stock, only 3 left!

0

27

Homelite 513211001

Wire Press Plate

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 205501001

Battery Foot and Switch Assembly

$33.99

$

Usually ships in 3-7 days

0

29

Homelite 660005006

Screw (M3 x 10 mm)

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 542647001

Front Handle

$12.99

$

Usually ships in 3-7 days

0

31

Homelite 317484001

Oil Pump Assembly w/Tube

$12.99

$

Usually ships in 3-7 days

0

32

Homelite 612330001

Wrench

$5.99

$

In Stock, only 1 left!

0

33

Homelite 790021001

Wire Connector (Closed End)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 660608005

Screw (M4 x 21 mm, T20 Torx Hd.)

$

$

Not available

35

Homelite 638988001

Washer (ID5.2 x OD16 x 1.5t)

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 205498001

Front Guard Assembly (Inc. Key No. 20)

Note: (Inc. Key No. 20)

$4.49

$

Usually ships in 3-7 days

0

37

Homelite 662051002

Screw, Torx T25, M5, Low Carbon Steel,

$

$

Not available

38

Homelite 662051001

Screw (T20 x 15 mm)

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 660206031

Screw (M3.5 x 15 mm, Pan Hd.)

$

$

Currently unavailable

40

Homelite 542042001

Lock Off Trigger

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 660211020

Screw (M3 x 15 mm, Pan Hd.)

$

$

Currently unavailable

42

Homelite 317482001

Gear Box Base and Shaft Assembly

$47.99

$

Usually ships in 3-7 days

0

43

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 6

0

44

Homelite 542648001

Trigger

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 694143001

Compression Spring (Trigger Lock)

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 660502004

Screw w/Washer (M5 x 8 mm, Pan Hd.)

$

$

Not available

47

Homelite 317483001

Gear Box Cover Assembly

$15.99

$

Usually ships in 3-7 days

0

48

Homelite 317481001

Motor Assembly

$98.99

$

Usually ships in 3-7 days

0

49

Homelite 542651001

Volute Cover

$1.99

$

Usually ships in 3-7 days

0

50

Homelite 690700005

Clip-hose

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 580865001

Oil Tank

$7.99

$

Usually ships in 3-7 days

0

52

Homelite 205500001

Oil Tank Cap Assembly

$2.99

$

Usually ships in 3-7 days

0

Homelite 998000494

Operator's Manual

Note: Not Shown

$

$

Not available
