RY 405010 (107507010) - Ryobi 14" 40V Chainsaw, Rev 01 (2021-08) General Assembly Parts Diagram

14" 40V Chainsaw, Rev 01

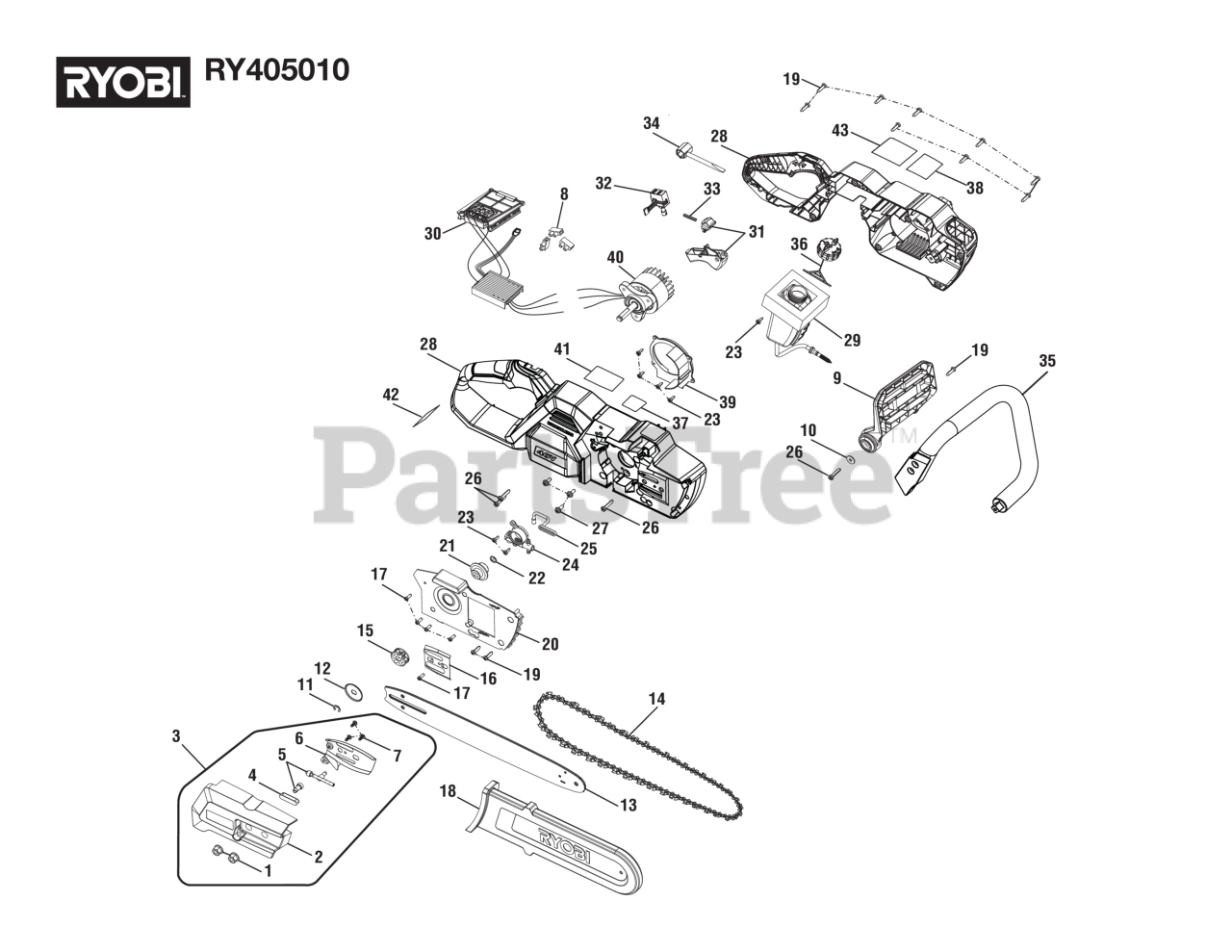

General Assembly Parts Diagram

  • Title

1

Homelite 678339003

Hex Nut (5/16-18 Flange)

$1.99

$

In Stock, only 2 left!

0

2

Homelite 314745001

Bar Cover

$7.99

$

In Stock, only 1 left!

0

3

Homelite 205643001

Bar Cover Assembly (Inc. Key Nos. 1-2 & 4-7)

Note: (Inc. Key Nos. 1-2 & 4-7)

$24.99

$

Usually ships in 3-7 days

0

4

Homelite 563443001

Rubber Plate

$1.99

$

In Stock, only 1 left!

0

5

Homelite 205642001

Driving Adjustment Gear Assembly

$

$

Not available

6

Homelite 658138001

Guide Plate

$3.49

$

In Stock, only 2 left!

0

7

Homelite 660922001

Screw (M4 x 10 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

8

Homelite 900876003

Terminal Block w/Screw

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 537279001

Guard

$3.99

$

Usually ships in 3-7 days

0

10

Homelite 638988001

Washer (ID5.2 x OD16 x 1.5t)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 636159001

E-Ring

$1.99

$

In Stock, Qty 5

0

12

Homelite 635367001

Washer (Special)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 314675001

Bar (14 in.)

$35.99

$

Usually ships in 3-7 days

0

14

Homelite 682006004

Chain (14 in.)

$30.99

$

In Stock, only 1 left!

0

15

Homelite 612313001

Sprocket

$3.99

$

In Stock, only 1 left!

0

16

Homelite 635335001

Guide Plate Bar

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 662083001

Screw, M4-18 x 12mm, T20 Torx Pan Head

$1.99

$

In Stock, only 1 left!

0

18

Homelite 580491001

Scabbard

$9.49

$

Usually ships in 3-7 days

0

19

Homelite 662051001

Screw (T20 x 15 mm)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 537277001

Cover Housing

$3.99

$

In Stock, only 1 left!

0

21

Homelite 537485001

Oil Pump Drive

$2.99

$

In Stock, only 3 left!

0

22

Homelite 658198001

Washer

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 309516002

Oil Pump

$10.99

$

In Stock, only 1 left!

0

25

Homelite 565069001

Oil Output Tube

$3.49

$

In Stock, only 2 left!

0

26

Homelite 662053001

Screw (T20 x 20 mm)

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 662052002

Screw, T25, M5X8, Steel, Black ZincePlat

$

$

Not available

28

Homelite 205640001

Housing Assembly (Inc. Key Nos. 37-38 & 41-43)

Note: (Inc. Key Nos. 37-38 & 41-43)

$39.99

$

Usually ships in 3-7 days

0

29

Homelite 314746001

Oil Tank Assembly

$14.99

$

Usually ships in 3-7 days

0

30

Homelite 314747001

Motor Controller and Battery Connector Assembly
(Superseded to 205226001)

$

$

Not available

31

Homelite 205641001

Switch Trigger and Lock-Out Button Assembly

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 760579005

Switch

$16.99

$

Usually ships in 3-7 days

0

33

Homelite 694143001

Compression Spring (Trigger Lock)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 612330001

Wrench

$5.99

$

Usually ships in 3-7 days

0

35

Homelite 537276001

Front Handle

$11.99

$

Usually ships in 3-7 days

0

36

Homelite 306888006

Oil Tank Cap Assembly

$9.99

$

Usually ships in 3-7 days

0

37

Homelite 941851111

Height Adjust Label

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 941851110

Warning Icon Label (Left)

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 537280002

Volute Cover

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 742089004

Motor
(Superseded to 205226001)

$

$

Not available

41

Homelite 941588993

Data Label

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 941097032

QR Label

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 941097031

Warning Label (English/Spanish, Left)

$1.99

$

Usually ships in 3-7 days

0

Homelite 998000666

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
