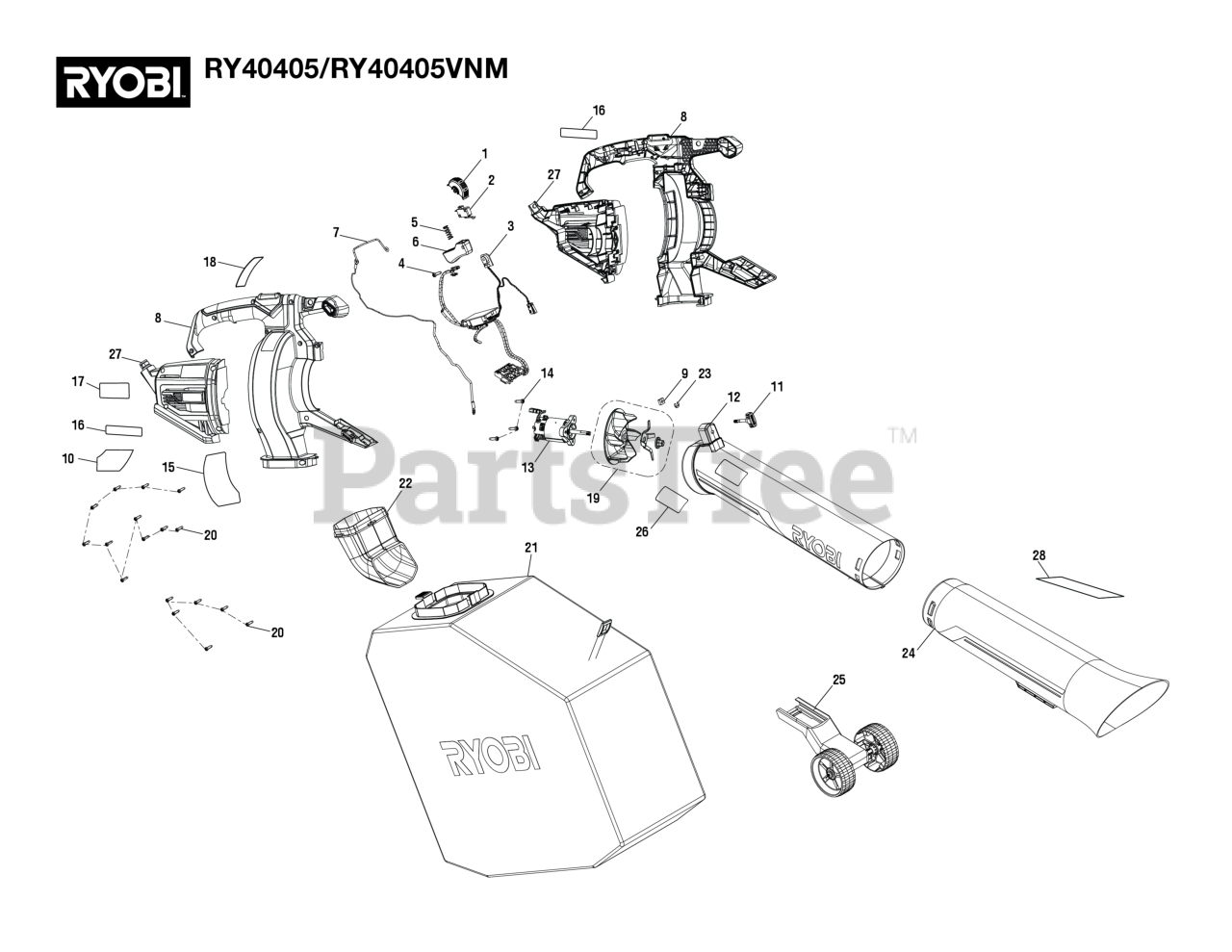

RY 40405 (107835001) - Ryobi 40V Leaf Vacuum, Rev 06 (2022-04) General Assembly Parts Diagram

40V Leaf Vacuum, Rev 06

General Assembly Parts Diagram

  • Title
1

Homelite 205104001

Dial Lever Assembly

$5.99

$

Usually ships in 3-7 days

0

2

Homelite 760629001

Switch (Micro)

$10.99

$

Usually ships in 3-7 days

0

3

Homelite 205105001

Motor Controller & Battery Holder Assembly

$90.99

$

Usually ships in 3-7 days

0

4

Homelite 660203073

SCREW, CH M3 PH B\L=6MM

$0.94

$

Usually ships in 3-7 days

0

5

Homelite 695017001

Compression Spring

$1.99

$

In Stock, only 3 left!

0

6

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 205106001

Hand Wire Assembly.

$7.99

$

Usually ships in 3-7 days

0

8

Homelite 205107001

Handle Housing Assembly (Inc. Key Nos. 10, 15 & 18)

Note: (Inc. Key Nos. 10, 15 & 18)

$54.99

$

Usually ships in 3-7 days

0

9

Homelite T662805001

Square Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 940657323

Caution Label

$1.99

$

Usually ships in 3-7 days

0

$6.49

$

In Stock, only 1 left!

0

12

Homelite 205108001

Upper Tube Assembly (Inc. Key No. 26)

Note: (Inc. Key No. 26)

$23.99

$

In Stock, only 1 left!

0

13

Homelite 205112001

Motor Assembly

$147.99

$

Usually ships in 3-7 days

0

14

Homelite 662052001

Screw (T25 x 12 mm, Flange Hd.)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 941851061

Warning Label (French & Spanish)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 941851059

Logo Label

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 941851060

Data Label

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 940851436

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 205111001

Blade Assembly

$18.99

$

In Stock, only 1 left!

0

20

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

21

Homelite 205110001

Bag Assembly

$56.99

$

In Stock, only 1 left!

0

22

Homelite 314009001

Leaf Chute

$7.49

$

Usually ships in 3-7 days

0

23

Homelite 658178001

Retaining Ring

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 205113001

Lower Tube Assembly (Inc. Key No. 28)

Note: (Inc. Key No. 28)

$23.99

$

In Stock, only 1 left!

0

25

Homelite 314148001

Wheel Assembly

$14.99

$

Usually ships in 3-7 days

0

26

Homelite 941851064

Start Label

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 205109001

Motor Housing Assembly (Inc. Key Nos. 16-17)

Note: (Inc. Key Nos. 16-17)

$15.99

$

Usually ships in 3-7 days

0

28

Homelite 940705441

Vac Attack Label

$1.99

$

Usually ships in 3-7 days

0

Homelite 995000561

Operator's Manual

Note: Not Shown

$

$

Not available
