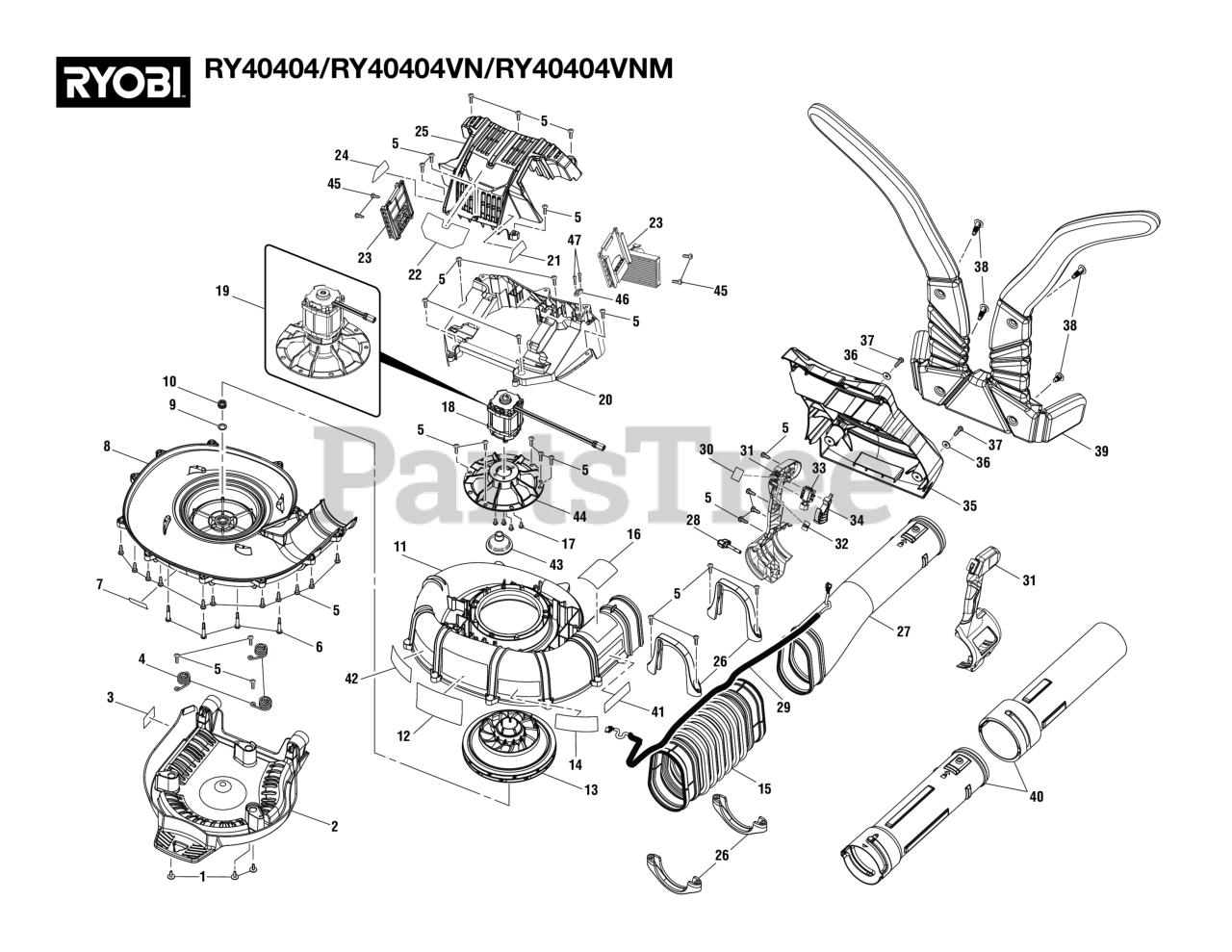

RY 40404 (107295001) - Ryobi 40V Backpack Blower, Rev 06 (2021-10) General Assembly Parts Diagram

40V Backpack Blower, Rev 06

General Assembly Parts Diagram

  • Title

1

Homelite 660626006

Screw (10-14 x 16 mm)

$1.99

$

In Stock, only 1 left!

0

2

Homelite 314609001

Lower Frame Assembly
(Superseded to 205153001)

Note: (Inc. Key No. 3, RY40404)

$18.99

$

In Stock, only 1 left!

0

3

Homelite 941851066

Data Label
(Superseded to 941588326)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 679950001

Spring

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 660629005

Screw (10-14 x 19 mm, T25 Torx Truss Pan Hd. T.F.)

$1.99

$

In Stock, only 1 left!

0

6

Homelite 660466003

Shoulder Screw (M5 x 40 mm, T25 Torx Truss Hd. T.F.)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 941705029

Hair Ingestion Warning Label

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 314504001

Outer Volute Assembly

$42.99

$

Usually ships in 3-7 days

0

9

Homelite 637311001

Washer (OD18 x ID12.15 x 1.5t)

$1.99

$

In Stock, Qty 5

0

10

Homelite 635959001

Wavy Spring (ID6.51 x HGT9.52)

$2.99

$

In Stock, only 3 left!

0

11

Homelite 314606001

Inner Volute Assembly

Note: (Inc. Key Nos. 12, 14, 16 & 41-42)

$64.99

$

Usually ships in 3-7 days

0

12

Homelite 941705147

Logo Label

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 313723002

Fan Assembly

$67.99

$

In Stock, only 1 left!

0

14

Homelite 941851068

MPH Label

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 580473001

Bellows Tube

$17.99

$

In Stock, only 1 left!

0

16

Homelite 941851071

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 660502002

Screw w/Lock Washer (M5 x 8 mm, Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

18

Homelite 742436001

Motor (40 volt)

$309.99

$

Usually ships in 3-7 days

0

19

Homelite 314499001

Motor & Mount Assembly

Note: (Inc. Key Nos. 17-18 & 43-44)

$283.99

$

Usually ships in 3-7 days

0

20

Homelite 535100001

Housing Cover (Bottom)

$13.99

$

Usually ships in 3-7 days

0

21

Homelite 941851072

Warning Label (French)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 941851074

40V Lithium Label

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 314498001

Motor Controller & Battery

$217.99

$

Usually ships in 3-7 days

0

24

Homelite 941851073

Warning Label (Spanish)

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 314607001

Housing Cover Assembly

Note: (Top, Inc. Key Nos. 21-22 & 24)

$22.99

$

Usually ships in 3-7 days

0

26

Homelite 314501001

Clamp Assembly

$10.99

$

In Stock, only 1 left!

0

27

Homelite 580472001

Handle Blower Tube

$15.99

$

In Stock, only 1 left!

0

28

Homelite 518273002

Blower Knob (1.35 in [34.3 mm])

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 291910001

Wire Assembly

$8.49

$

Usually ships in 3-7 days

0

30

Homelite 941851070

Turbo Label

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 314610001

Throttle Handle & Cruise Control Assembly

Note: (Inc. Key No. 30)

$22.99

$

Usually ships in 3-7 days

0

32

Homelite 280745001

Turbo Switch

$3.99

$

In Stock, only 1 left!

0

33

Homelite 314502001

Switch Assembly

$14.99

$

Usually ships in 3-7 days

0

34

Homelite 535102005

Trigger

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 534931002

Upper Frame

$29.99

$

In Stock, only 1 left!

0

36

Homelite 678587001

Washer (OD16 x ID6.8 x 1.5t)

$1.99

$

In Stock, only 2 left!

0

37

Homelite 660618002

SCREW (10-14 X 1 in.)
(Superseded to 82589)

$2.99

$

In Stock, Qty 7

0

38

Homelite 525644002

Harness Snap Fastener

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 901588003

Strap

$74.99

$

Usually ships in 3-7 days

0

40

Homelite 314503001

Blower Tube Assembly

$17.99

$

In Stock, only 1 left!

0

41

Homelite 941851069

Battery Warning Label

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 941851067

CFM Label

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 643396002

Drive Coupler

$9.99

$

Usually ships in 3-7 days

0

44

Homelite 536400001

Motor Mount

$6.49

$

Usually ships in 3-7 days

0

45

Homelite 662083001

Screw, M4-18 x 12mm, T20 Torx Pan Head

$1.99

$

In Stock, only 1 left!

0

46

Homelite 523001003

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

47

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

Homelite 995000560

Operator's Manual

Note: Not Shown

$

$

Not available
