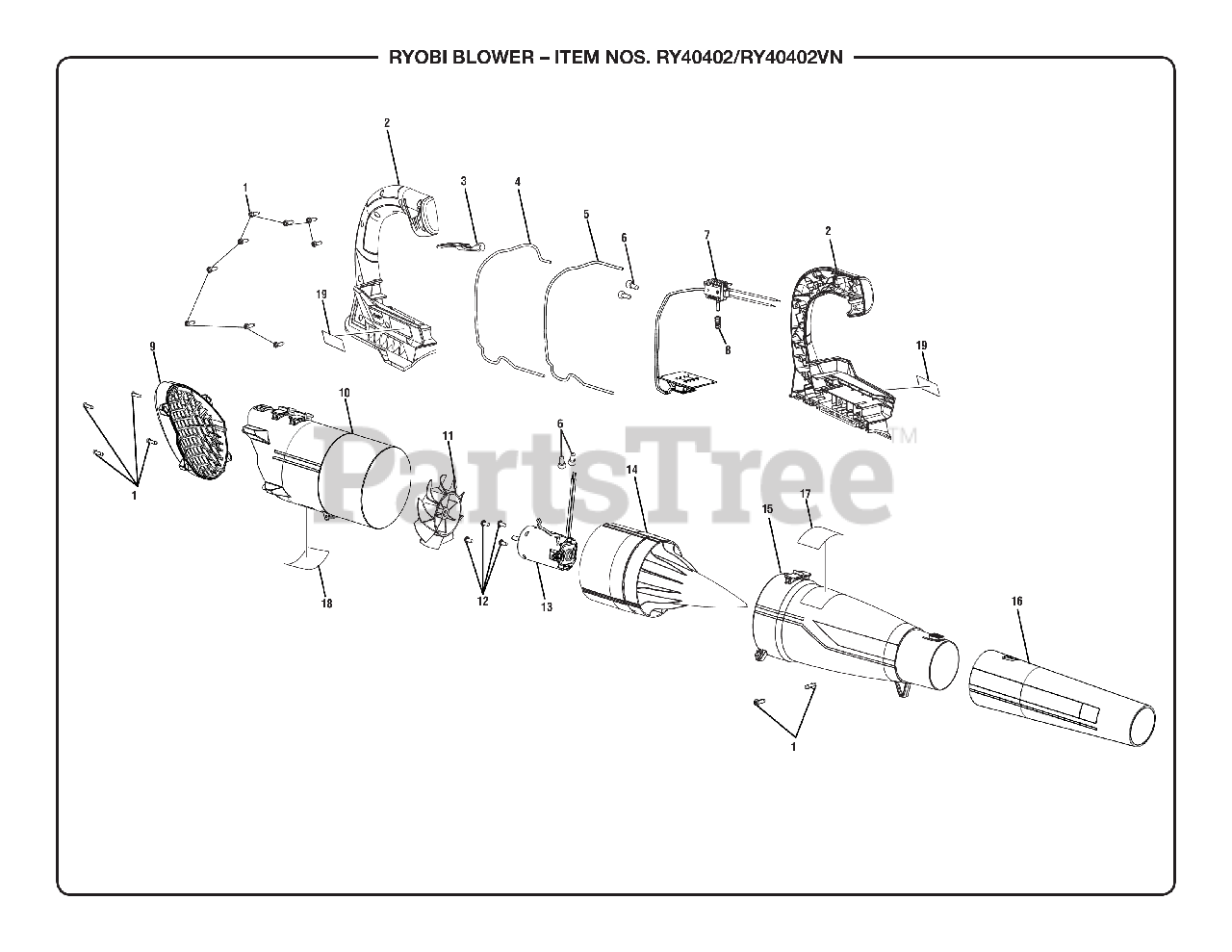

RY 40402 VN (107966014) - Ryobi 40V Blower, Rev 04 (2019-04) General Assembly Parts Diagram

40V Blower, Rev 04

General Assembly Parts Diagram

  • Title

1

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 311220001

Handle Assembly

$28.99

$

Usually ships in 3-7 days

0

3

Homelite 525552001

Trigger Assembly (Variable Speed)

$1.99

$

In Stock, only 2 left!

0

4

Homelite 291463001

Lead Wire (Red)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 291464001

Lead Wire (Black)

$

$

Not available

6

Homelite 790009004

Wire Connector (Closed End)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 270504001

Switch Assembly

$59.99

$

In Stock, only 1 left!

0

8

Homelite 679973002

Compression Spring (Trigger)

$1.99

$

In Stock, only 3 left!

0

9

Homelite 526489001

Inlet Housing Cover

$6.49

$

Usually ships in 3-7 days

0

10

Homelite 526056001

Inlet Housing
(Superseded to 205159001)

Note: (Inc. Key No. 18, RY40402)

$8.99

$

Usually ships in 3-7 days

0

Homelite 205159001

Inlet Housing Assembly

Note: (Inc. Key No. 18, RY40402VN)

$8.99

$

Usually ships in 3-7 days

0

11

Homelite 526058001

Fan

$12.99

$

Usually ships in 3-7 days

0

12

Homelite 660502002

Screw w/Lock Washer (M5 x 8 mm, Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

13

Homelite 741956002

Motor

$148.99

$

Usually ships in 3-7 days

0

14

Homelite 311221001

Housing Assembly

$16.99

$

Usually ships in 3-7 days

0

15

Homelite 526055001

Blower Housing Outlet

$12.99

$

Usually ships in 3-7 days

0

16

Homelite 526063001

Blower Tube

$7.49

$

Usually ships in 3-7 days

0

17

Homelite 940999144

Icon Warning Label

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 940979005

Data Label

Note: (RY40402)

$

$

Currently unavailable

Homelite 941588338

Data Label

Note: (RY40402VN)

$

$

Currently unavailable

19

Homelite 940705207

Logo Label (Left/Right)

$1.99

$

Usually ships in 3-7 days

0

Homelite 990000700

Operator's Manual

Note: Not Shown

$

$

Not available
