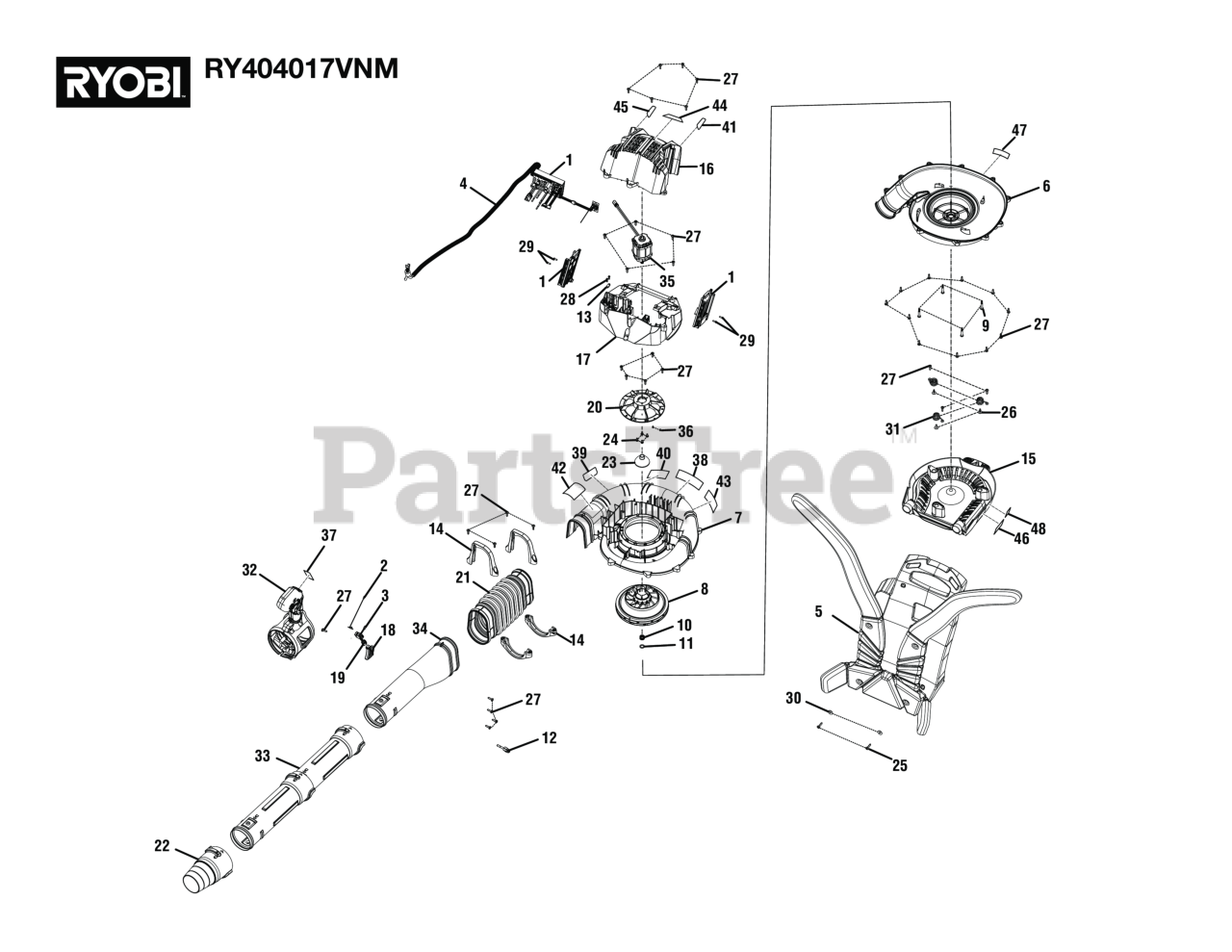

RY 404017 VNM (108698001) - Ryobi 40V Brushless Blower, Rev 01 (2021-10) General Assembly Parts Diagram

40V Brushless Blower, Rev 01

General Assembly Parts Diagram

  • Title

1

Homelite 318805001

Motor Controller and Battery Holder Assembly

$299.99

$

Usually ships in 3-7 days

0

2

Homelite 280745001

Turbo Switch

$3.99

$

In Stock, only 1 left!

0

3

Homelite 760579005

Switch

$16.99

$

Usually ships in 3-7 days

0

4

Homelite 291910001

Wire Assembly

$8.49

$

Usually ships in 3-7 days

0

5

Homelite 314182001

Upper Frame and Strap Assembly

$99.99

$

Usually ships in 3-7 days

0

6

Homelite 318809001

Outer Volute Assembly

Note: (Inc. Key No. 47)

$41.99

$

Usually ships in 3-7 days

0

7

Homelite 318810001

Inner Volute Assembly

Note: (Inc. Key Nos. 38-40 & 42-43)

$72.99

$

Usually ships in 3-7 days

0

8

Homelite 313723002

Fan Assembly

$67.99

$

In Stock, only 1 left!

0

9

Homelite 660466003

Shoulder Screw (M5 x 40 mm, T25 Torx Truss Hd. T.F.)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 635959001

Wavy Spring (ID6.51 x HGT9.52)

$2.99

$

In Stock, only 3 left!

0

11

Homelite 637311001

Washer (OD18 x ID12.15 x 1.5t)

$1.99

$

In Stock, Qty 5

0

12

Homelite 518273002

Blower Knob (1.35 in [34.3 mm])

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 523001003

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 314501001

Clamp Assembly

$10.99

$

In Stock, only 1 left!

0

15

Homelite 318811001

Lower Frame Assembly

Note: (Inc. Key Nos. 46 & 48)

$25.99

$

Usually ships in 3-7 days

0

16

Homelite 318812001

Housing Cover Assembly

Note: (Inc. Key Nos. 41 & 44-45)

$26.99

$

Usually ships in 3-7 days

0

17

Homelite 535100004

Bottom Housing Cover

$

$

Currently unavailable

18

Homelite 535102005

Trigger

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 535105001

Switch Cap

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 536400001

Motor Mount

$6.49

$

Usually ships in 3-7 days

0

21

Homelite 580473001

Bellows Tube

$17.99

$

In Stock, only 1 left!

0

22

Homelite 318813001

Speed Nozzle Assembly

$20.99

$

Usually ships in 3-7 days

0

23

Homelite 643396002

Drive Coupler

$9.99

$

Usually ships in 3-7 days

0

24

Homelite 660502002

Screw w/Lock Washer (M5 x 8 mm, Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

25

Homelite 660618002

SCREW (10-14 X 1 in.)
(Superseded to 82589)

$2.99

$

In Stock, Qty 7

0

26

Homelite 660626006

Screw (10-14 x 16 mm)

$1.99

$

In Stock, only 1 left!

0

27

Homelite 660629005

Screw (10-14 x 19 mm, T25 Torx Truss Pan Hd. T.F.)

$1.99

$

In Stock, only 1 left!

0

28

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

29

Homelite 662083001

Screw, M4-18 x 12mm, T20 Torx Pan Head

$1.99

$

In Stock, only 1 left!

0

30

Homelite 678587001

Washer (OD16 x ID6.8 x 1.5t)

$1.99

$

In Stock, only 2 left!

0

31

Homelite 679950001

Spring

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 318807001

Throttle Handle and Cruise Control Assembly

Note: (Inc. Key No. 37)

$33.99

$

Usually ships in 3-7 days

0

33

Homelite 580975001

Upper Blower Tube

$18.99

$

Usually ships in 3-7 days

0

34

Homelite 580977001

Handle Tube

$17.99

$

Usually ships in 3-7 days

0

35

Homelite 742436002

Motor

$396.99

$

Usually ships in 3-7 days

0

36

Homelite 660203073

SCREW, CH M3 PH B\L=6MM

$0.94

$

Usually ships in 3-7 days

0

37

Homelite 941851070

Turbo Label

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 941110077

RYOBI 40V HP Logo Label

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 941851069

Battery Warning Label

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 941110080

CFM MPH Label

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 941851072

Warning Label (French)

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 941851071

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 941110076

Whisper Logo Label

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 941110083

40V HP Brushless Label

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 941851073

Warning Label (Spanish)

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 941110085

Data Label

$1.99

$

Usually ships in 3-7 days

0

47

Homelite 941705029

Hair Ingestion Warning Label

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 941110078

QR Label

$1.99

$

Usually ships in 3-7 days

0

Homelite 998000732

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
